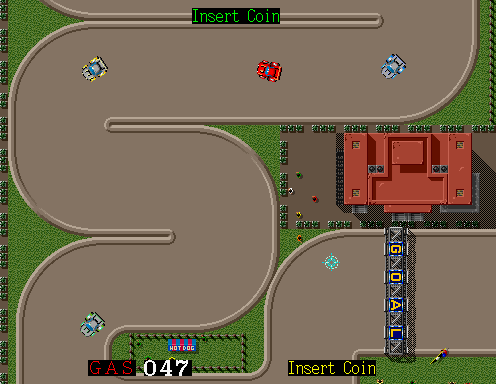

Hot Rod (World, 3 Players, Turbo set 1, Floppy Based) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
hotrod	sega/segas24.cpp		no	no	no	yes	Hot Rod (World, 3 Players, Turbo set 1, Floppy Based)	1988	Sega

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	496	384	57.524160	16000000	656	0	496	424	0	384	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
epr-11339.ic2	131072	75130e73	e079739f4a3da3807aac570442c5afef1a7d7b0e	maincpu	0	good	no
epr-11338.ic1	131072	7d4a7ff3	3d3af04d990d232ba0a8fe155de59bc632a0a461	maincpu	1	good	no
ds3-5000-01d_3p_turbo.img	1925120	842006fd	d5432f58c0fb39f2bf62786a0d842bdd469ab2cb	floppy	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	10000000
cpu	subcpu	Motorola MC68000	10000000
audio	speaker	Speaker
audio	ymsnd	YM2151 OPM	4000000
audio	dac	8-Bit R-2R DAC

device_ref

name
m68000
timer
m68000
315_5296
timer
timer
timer
timer
segas24_tile
segas24_sprite
segas24_mixer
screen
palette
speaker
ym2151
dac_8bit_r2r
nvram
upd4701a
upd4701a
msm6253
msm6253

sound

channels
1

input

players	coins	service	tilt
4	8	yes	no

control

type	player	reverse	minimum	maximum	sensitivity	keydelta
dial	1	no	0	4095	25	15
pedal	1	no	1	255	25	15
dial	2	no	0	4095	25	15
pedal	2	no	1	255	25	15
dial	3	no	0	4095	25	15
pedal	3	no	1	255	25	15
dial	4	no	0	4095	25	15
pedal	4	no	1	255	25	15

port, analog

port_tag	analog_masks
:COINAGE
:DIAL1	4095
:DIAL2	4095
:DIAL3	4095
:DIAL4	4095
:DSW
:P1
:P2
:P3
:PEDAL1	255
:PEDAL2	255
:PEDAL3	255
:PEDAL4	255
:SERVICE

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	COINAGE	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
2 Coins/3 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	COINAGE	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
2 Coins/3 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	2

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	4

location

name	number	inverted
SW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	8

location

name	number	inverted
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	16

location

name	number	inverted
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Start Credit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Start Credit	DSW	32

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	32	yes
2	0	no

Coin Chute

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Chute	DSW	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Separate	64	yes
Common	0	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSW	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
