HP 9816A - mame (0278) machine

MAME: 0278 - Released: 2025-06-29T00:16:39 - Machines: 48574 - rom: 362783 - disk: 1374

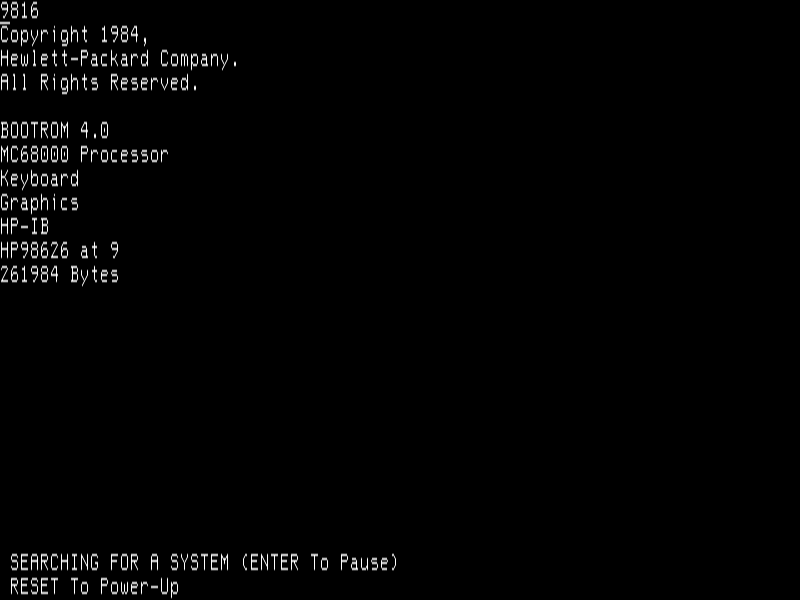

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
hp9816a	hp/hp98x6.cpp		no	no	no	yes	HP 9816A	1982	Hewlett-Packard

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	800	300	50.050080	19988000	1040	0	800	384	0	300	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	status	optional	bios
rom40.bin	65536	36005480	645a077ffd95e4c31f05cd8bbd6e4554b12813f1	cpu	good	no	bios40
rom30.bin	65536	05c07e75	3066a65e6137482041f9a77d09ee2289fe0974aa	cpu	good	no	bios30
1818-3171.bin	8192	9cf4d4e1	228484fd7ba7a4b59a051af083858383afe30179	chargen	good	no
prom9816.bin	256	f2e57a04	7436c1334f30e6de3cf1a7c30f714c9f203cb4d3	upi:idprom	good	no

chip

type	tag	name	clock
cpu	cpu	Motorola MC68000	8000000
audio	upi:mono	Speaker
audio	upi:beep	Beep

softwarelist

tag	name	status	filter
optrom_list	hp98x6_rom	original

device_ref

name
m68000
ram
mc6845
hp98x6_upi
speaker
beep
timer
timer
timer
tms9914
ieee488
ieee488_slot
ieee488_slot
hp98x6_optrom
hp98x6_optrom
software_list
dio16
ipt_merge_any_hi
ipt_merge_any_hi
ipt_merge_any_hi
ipt_merge_any_hi
ipt_merge_any_hi
ipt_merge_any_hi
ipt_merge_any_hi
dio16_slot
dio16_slot
screen
palette
ins8250
rs232

biosset

name	description	default
bios40	BIOS v4.0	yes
bios30	BIOS v3.0	no

sound

channels
1

ramoption

name	default
512K
1M
256K	yes

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
romimage	drawer0	hp98x6_rom			romimage1	rom1
romimage	drawer1	hp98x6_rom			romimage2	rom2

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
romimage	drawer0	hp98x6_rom			bin
romimage	drawer1	hp98x6_rom			bin

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
dial				no	0	255	30	15
keyboard		104		no

port, analog

port_tag	analog_masks
:sw2
:sw3
:upi:DIAL	255
:upi:KEY0
:upi:KEY1
:upi:KEY2
:upi:KEY3
:upi:KEY_SHIFT

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
ieee_dev	hp9895	hp9895	no
ieee_dev	hp9133	hp9133	no
ieee_dev	hp9122c	hp9122c	no
ieee_rem	remote488	remote488	no
slot0	98629	dio98629	no
slot0	98628	dio98628	no
slot1	98629	dio98629	no
slot1	98628	dio98628	no
rs232	terminal	serial_terminal	no
rs232	sunkbd	sunkbd_adaptor	no
rs232	dec_loopback	dec_rs232_loopback	no
rs232	ie15	ie15_terminal	no
rs232	null_modem	null_modem	no
rs232	keyboard	serial_keyboard	no
rs232	patch	rs232_patch_box	no
rs232	swtpc8212	swtpc8212_terminal	no
rs232	printer	serial_printer	no
rs232	scorpion	scorpion_ic	no
rs232	loopback	rs232_loopback	no
rs232	mockingboard	mockingboardd	no
rs232	msystems_mouse	rs232_mouse_hle_msystems	no
rs232	nss_tvi	nss_tvinterface	no
rs232	rs232_sync_io	rs232_sync_io	no
rs232	pty	pseudo_terminal	no
rs232	rs_printer	rs_serial_printer	no

dipswitch

Bits/char

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bits/char	sw2	3

location

name	number	inverted
S2	8	no
S2	7	no

value

name	value	default
5	0	no
6	1	no
7	2	no
8	3	yes

Stop bits

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Stop bits	sw2	4

location

name	number	inverted
S2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	0	yes
2	4	no

Parity enable

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Parity enable	sw2	8

location

name	number	inverted
S2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

Parity type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Parity type	sw2	48

location

name	number	inverted
S2	4	no
S2	3	no

value

name	value	default
Odd	0	yes
Even	16	no
One	32	no
Zero	48	no

Baud rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Baud rate	sw3	15

location

name	number	inverted
S3	4	no
S3	3	no
S3	2	no
S3	1	no

value

name	value	default
50	0	no
75	1	no
110	2	no
134.5	3	no
150	4	no
200	5	no
300	6	no
600	7	no
1200	8	no
1800	9	no
2400	10	yes
3600	11	no
4800	12	no
7200	13	no
9600	14	no
19200	15	no

Remote keyboard

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remote keyboard	sw3	16

location

name	number	inverted
S3	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

Continuous self-test

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Continuous self-test	sw3	32

location

name	number	inverted
S3	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	32	yes

HPIB Sys controller

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
HPIB Sys controller	sw3	64

location

name	number	inverted
S3	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	64	yes

CRT refresh rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
CRT refresh rate	sw3	128

location

name	number	inverted
S3	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
50 Hz	0	no
60 Hz	128	yes
