HP 9836A - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
hp9836a	hp/hp98x6.cpp		no	no	no	yes	HP 9836A	1981	Hewlett-Packard

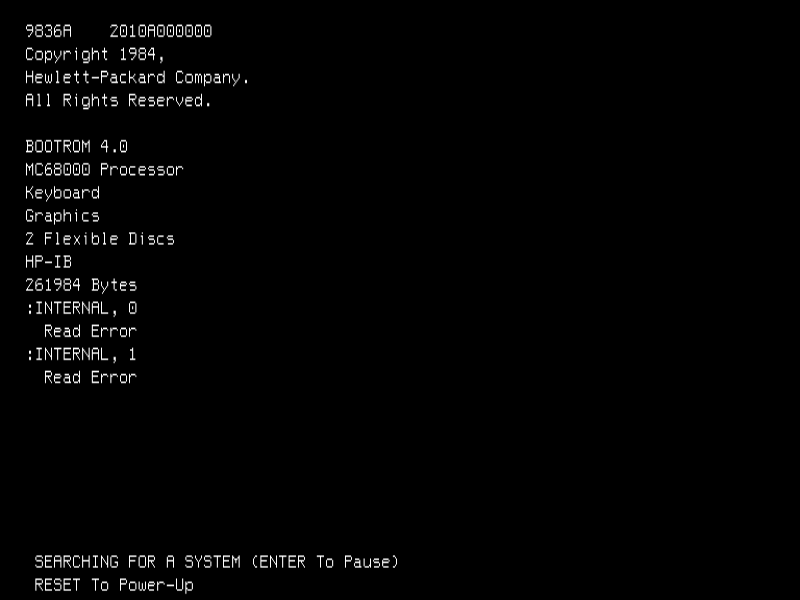

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
hp9836a	20641	29/12/2025 11:31:24	800	600	96	96	0	Format24bppRgb	305:MAME 0.268.1 (Aug 1 2024)	b632b05bb4abfa4f866a919c042e1a8872e6572c

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	1536	390	50.000000	51543000	2070	0	1536	498	0	390	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	status	optional	bios
rom40.bin	65536	36005480	645a077ffd95e4c31f05cd8bbd6e4554b12813f1	cpu	good	no	bios40
rom30.bin	65536	05c07e75	3066a65e6137482041f9a77d09ee2289fe0974aa	cpu	good	no	bios30
9836-chargen.bin	4096	69754023	952dc7fd59e0039fa7c7436fb596ab460241f256	chargen	baddump	no
prom9836.bin	256	52251c32	3437c5a78b4c3323ce37340022a4843fcb9f4327	idprom	good	no

chip

type	tag	name	clock
cpu	cpu	Motorola MC68000	8000000
audio	upi:mono	Speaker
audio	upi:beep	Beep
audio	drive0:525dd:flopsndout	Speaker
audio	drive0:525dd:floppysound	Floppy sound	44100
audio	drive1:525dd:flopsndout	Speaker
audio	drive1:525dd:floppysound	Floppy sound	44100

softwarelist

tag	name	status	filter
optrom_list	hp98x6_rom	original

device_ref

tag	name
:cpu	m68000
:ram	ram
:crtc	mc6845
:upi	hp98x6_upi
:upi:mono	speaker
:upi:beep	beep
:upi:timer	timer
:upi:dly	timer
:upi:inp_dly	timer
:hpib	tms9914
:ieee_bus	ieee488
:ieee_dev	ieee488_slot
:ieee_rem	ieee488_slot
:drawer0	hp98x6_optrom
:drawer1	hp98x6_optrom
:optrom_list	software_list
:diobus	dio16
:merge_irq1	ipt_merge_any_hi
:merge_irq2	ipt_merge_any_hi
:merge_irq3	ipt_merge_any_hi
:merge_irq4	ipt_merge_any_hi
:merge_irq5	ipt_merge_any_hi
:merge_irq6	ipt_merge_any_hi
:merge_irq7	ipt_merge_any_hi
:slot0	dio16_slot
:slot1	dio16_slot
:fdc	fd1793
:drive0	floppy_connector
:drive0:525dd	floppy_525_dd
:drive0:525dd:flopsndout	speaker
:drive0:525dd:floppysound	flopsnd
:ss0	ttl74123
:ss1	ttl74123
:fdc_tmr	timer
:screen	screen
:palette	palette
:drive1	floppy_connector
:drive1:525dd	floppy_525_dd
:drive1:525dd:flopsndout	speaker
:drive1:525dd:floppysound	flopsnd

biosset

name	description	default
bios40	BIOS v4.0	yes
bios30	BIOS v3.0	no

sound

channels
3

ramoption

name	default
512K
1M
256K	yes

device, instance

type	tag	interface	name	briefname
romimage	drawer0	hp98x6_rom	romimage1	rom1
romimage	drawer1	hp98x6_rom	romimage2	rom2
floppydisk	drive0:525dd	floppy_5_25	floppydisk1	flop1
floppydisk	drive1:525dd	floppy_5_25	floppydisk2	flop2

device, extension

type	tag	interface	extension_names
romimage	drawer0	hp98x6_rom	bin
romimage	drawer1	hp98x6_rom	bin
floppydisk	drive0:525dd	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk
floppydisk	drive1:525dd	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
dial				no	0	255	30	15
keyboard		104		no

port, analog

port_tag	analog_masks
:frame_rate_sw
:sw1
:sys_ctrl_sw
:upi:DIAL	255
:upi:KEY0
:upi:KEY1
:upi:KEY2
:upi:KEY3
:upi:KEY_SHIFT

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
ieee_dev	hp9895	hp9895	no
ieee_dev	hp9133	hp9133	no
ieee_dev	hp9122c	hp9122c	no
ieee_rem	remote488	remote488	no
slot0	98629	dio98629	no
slot0	98628	dio98628	no
slot1	98629	dio98629	no
slot1	98628	dio98628	no

configuration

CRT refresh rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
CRT refresh rate	frame_rate_sw	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
50 Hz	1	yes
60 Hz	0	no

SW1-1

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW1-1	sw1	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	yes
Off	1	no

SW1-2

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW1-2	sw1	2

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	yes
Off	2	no

SW1-3

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW1-3	sw1	4

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	yes
Off	4	no

SW1-4

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW1-4	sw1	8

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	yes
Off	8	no

SW1-5

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW1-5	sw1	16

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	yes
Off	16	no

SW1-6

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW1-6	sw1	32

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	32	yes

SW1-7

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW1-7	sw1	64

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	64	yes

SW1-8

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW1-8	sw1	128

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	128	yes

HPIB Sys controller

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
HPIB Sys controller	sys_ctrl_sw	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	1	yes
Off	0	no
