mame (0289) • machine hs_uc • High Speed (Unidesa / Cirsa license)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
hs_uc	pinball/s11.cpp	genpin	no	no	yes	yes	High Speed (Unidesa / Cirsa license)	1985	Williams (Unidesa / Cirsa license)	hs_l4	hs_l4

snap

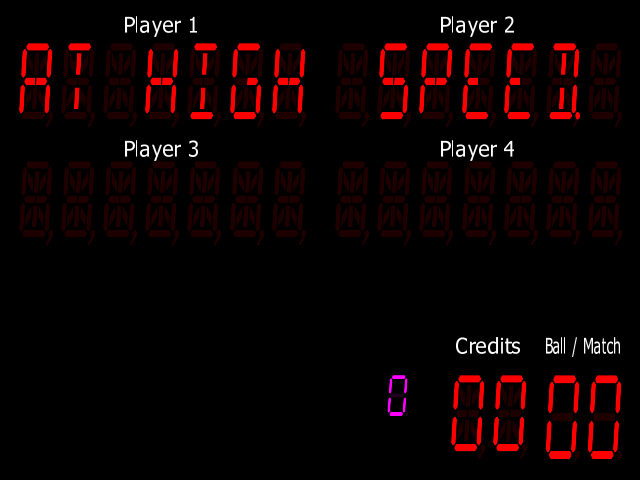

High Speed (Unidesa / Cirsa license) png snap

High Speed (Unidesa / Cirsa license) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
hs_uc	19498	31/07/2026 10:24:26	640	480	96	96	0	Format24bppRgb	305:MAME 0.289 (mame0289)	85edc91eb51cca1caa7410d69df12b315ca0b612

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
conversor_creditos_2716.ic3	2048			coins	0	nodump	no
high_speed_u21_sound_rom_1_rev_1_27c256.u21	32768	dbd2374f	3362da097d556c55c18bc013e9d9a65aa9e6d30d	audiocpu	8000	good	no
high_speed_u22_sound_rom_2_rev_1_27c256.u22	32768	c03be631	53823e0f55377a45aa181882c310dd307cf368f5	audiocpu	0	good	no	hs_u22.l2
high_speed_u27_rom_1_rev_1_27c256.u27	32768	bea2881b	1070472ecf5f09ed3b27b9b97ae5dac7a2b474bf	maincpu	8000	good	no
hs_u26_rom_2_rev_1_2764.u26	8192	e1777763	bf06fa77f44e9c9f638c8e4b172b009d6596e934	maincpu	4000	good	no
hs_u4.l1	32768	0f96e094	58650705a02a71ced85f5c2a243722a35282cbf7	bg:cpu	0	baddump	no	hs_u4.l1

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6802	4000000
cpu	audiocpu	Motorola MC6808	4000000
cpu	bg:cpu	Motorola MC6809E	2000000
audio	mechvol	Speaker
audio	samples	Samples
audio	dac	MC1408 DAC
audio	cvsd_filter2	Biquad Filter
audio	cvsd_filter	Biquad Filter
audio	hc55516	HC-55516
audio	bg	Williams System 11 Background Sound Board
audio	bg:dac	MC1408 DAC
audio	speaker	Speaker

device_ref

tag	name
:maincpu	m6802
:mainirq	ipt_merge_any_hi
:piairq	ipt_merge_any_hi
:mechvol	speaker
:samples	samples
:pia21	pia6821
:pia24	pia6821
:pia28	pia6821
:pia2c	pia6821
:pia30	pia6821
:pia34	pia6821
:nvram	nvram
:audiocpu	m6808
:audioirq	ipt_merge_any_hi
:dac	mc1408
:cvsd_filter2	filter_biquad
:cvsd_filter	filter_biquad
:hc55516	hc55516
:pias	pia6821
:bg	s11_bgs
:bg:cpu	mc6809e
:bg:dac	mc1408
:bg:pia40	pia6821
:speaker	speaker

sample

name
bumper
chime1
chime2
chime3
chime4
coil_coinlockout_engage
coil_coinlockout_release
coinin
drop_target_reset
hole
kickback
knocker
outhole
relay_engage
relay_release
sling
solenoid_engage
solenoid_release

sound

channels
2

input

players	coins	service	tilt
1	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		52		no

port, analog

port_tag	analog_masks
:DIAGS
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7

configuration

Language

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Language	DIAGS	16

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
German	0	no
English	16	yes
