HyperBall (L-3) - mame (0288) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
hypbl_l3	pinball/s7.cpp	genpin	no	no	yes	yes	HyperBall (L-3)	1981	Williams	hypbl_l4	hypbl_l4

snap

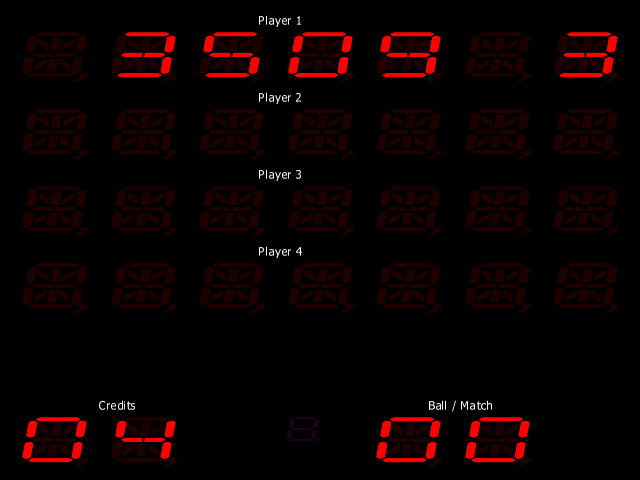

HyperBall (L-3) png snap

HyperBall (L-3) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
hypbl_l3	15917	20/03/2026 14:41:33	640	480	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	78d30c776e443169453a14644707f6051b269c16

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
ic20-l3.532	4096	4a37d6e8	8c26dd5652ace431a6ff0faf0bb9db37489c4fec	maincpu	0	good	no
ic14-l3.532	4096	e233bbed	bb29acc3e48d6b40b3df2e7702f8a8ff4357c15c	maincpu	1000	good	no
ic17.532	4096	6f4c0c4c	1036067e2c85da867983e6e51ee2a7b5135000df	maincpu	2000	good	no	ic17.532
sound12.532	4096	06051e5e	f0ab4be812ceaf771829dd549f2a612156102a93	s6sound:audiocpu	4000	good	no	sound12.532

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6808	3580000
cpu	s6sound:cpu	Motorola MC6802	3580000
audio	mechvol	Speaker
audio	samples	Samples
audio	mono	Speaker
audio	s6sound	Williams System 6 Sound Board
audio	s6sound:dac	MC1408 DAC
audio	s6sound:hc	HC-55516

device_ref

tag	name
:maincpu	m6808
:mechvol	speaker
:samples	samples
:pia21	pia6821
:pia22	pia6821
:pia24	pia6821
:pia28	pia6821
:pia30	pia6821
:nvram	nvram
:mono	speaker
:s6sound	wmss6
:s6sound:cpu	m6802
:s6sound:dac	mc1408
:s6sound:hc	hc55516
:s6sound:pia	pia6821

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
2	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad	1	34		no
keypad	2	1		no

port, analog

port_tag	analog_masks
:DIAGS
:DS1
:DS2
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7
:s6sound:S6

dipswitch

Speech

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Speech	s6sound:S6	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	no
On	0	yes

Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Sounds	s6sound:S6	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Tones	0	no
Synth	64	yes
