Z80 SBC (prototype?) - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
iez80	skeleton/iez80.cpp		no	no	no	yes	Z80 SBC (prototype?)	1983	Insight Enterprises

snap

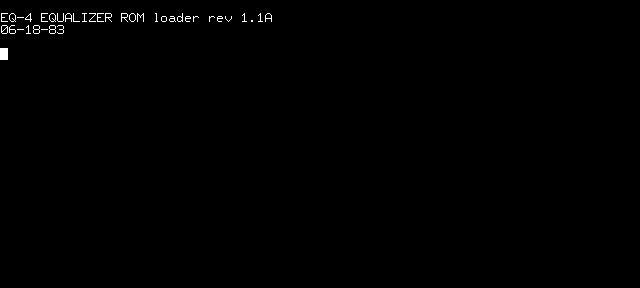

Z80 SBC (prototype?) png snap

Z80 SBC (prototype?) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
iez80	1299	29/12/2025 11:31:24	640	288	96	96	0	Format24bppRgb	305:MAME 0.229 (Feb 24 2021)	e437c9d878fe296226c9cdb3a6cf4f986b56d6b9

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	640	288	60.076405	17550000	816	0	640	358	0	288	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
iez80.bin	4096	d73137d2	a340a47c5f37bbef244d35d581ff0beeeec5d677	maincpu	0	good	no
8002.bin	2048	fdd6eb13	a094d416e66bdab916e72238112a6265a75ca690	chargen	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	2500000

device_ref

tag	name
:maincpu	z80
:dma	z80dma
:ctc	z80ctc
:ctc:ch0	z80ctc_channel
:ctc:ch1	z80ctc_channel
:ctc:ch2	z80ctc_channel
:ctc:ch3	z80ctc_channel
:pio	z80pio
:dart1	z80dart
:dart1:cha	z80dart_channel
:dart1:chb	z80dart_channel
:dart2	z80dart
:dart2:cha	z80dart_channel
:dart2:chb	z80dart_channel
:screen	screen
:gfxdecode	gfxdecode
:palette	palette
:crtc	crt5037

sound

channels
0

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
0		no	no
