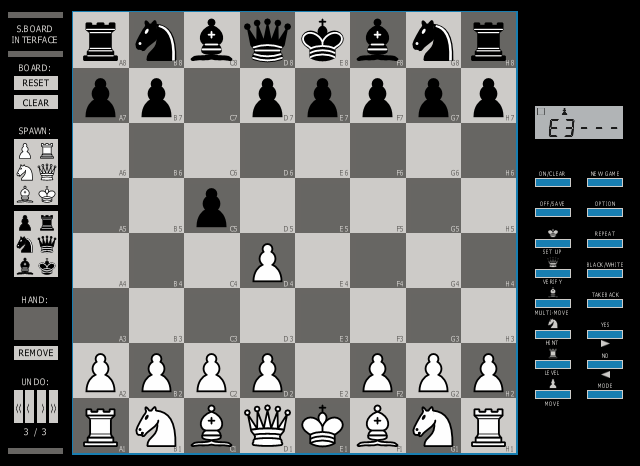

Igor (Excalibur) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
igor	excalibur/ivant.cpp		no	no	no	yes	Igor (Excalibur)	1997	Excalibur Electronics

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	svg	0	320	120	60.000000	2304000	320	0	320	120	0	120	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
1997_rcn_1002a_excal_hd6433214l02p.ic1	32768	adbc7e07	0d297ad2fd0d18312966195cfad4658da4bc4442	maincpu	0	good	no
sound.ic2	131072	bc540da3	68647ce1c7e87eba90d9d1912921213af03e3c5d	soundrom	0	good	no
ivant.svg	89047	fe514f65	da5a56882bd241d01a6c49cb1cb066b88473c445	screen	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Hitachi H8/3214	12000000
audio	speaker	Speaker
audio	dac	8-Bit R-2R DAC

device_ref

name
h83214
h8_intc
h8_digital_port
h8_digital_port
h8_digital_port
h8_digital_port
h8_digital_port
h8_digital_port
h8_digital_port
h8_timer8_channel
h8_timer8_channel
h8_timer8_channel
h8_timer16
h8325_timer16_channel
h8_sci
h8_sci
h8_watchdog
sensorboard
pwm_display
screen
speaker
dac_8bit_r2r

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keypad		16		no

port, analog

port_tag	analog_masks
:BATT
:IN.0
:IN.1
:board:BS_CHECK
:board:CONF
:board:RANK.1
:board:RANK.10
:board:RANK.2
:board:RANK.3
:board:RANK.4
:board:RANK.5
:board:RANK.6
:board:RANK.7
:board:RANK.8
:board:RANK.9
:board:SPAWN
:board:SS_CHECK
:board:UI
:board:UI_CHECK

configuration

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
