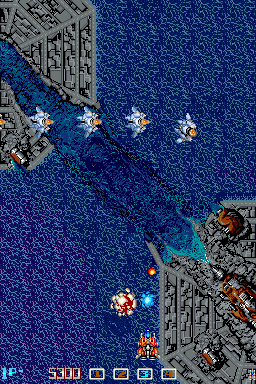

Image Fight (Japan, bootleg) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
imgfightjb	irem/m72.cpp		no	no	no	yes	Image Fight (Japan, bootleg)	1988	Irem	imgfight	imgfight

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	270	384	256	55.017606	8000000	512	64	448	284	0	256	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
ic108.9b	65536	592d2d80	d54916a9bfe4b65a972b62202af706135e73518d	maincpu	1	good	no
ic89.7b	65536	61f89056	3e0724dbc2b00a30193ea6cfac8b4331055d4fd4	maincpu	0	good	no
ic111.9e	65536	6aae3a46	87fe2e13b4dd98c6cbec03ec52dfae1980403125	maincpu	40001	good	no
ic110.9d	65536	0e0aefcd	f5056a2d0612d912aff1e0eccb1182de7ae16990	maincpu	60001	good	no
ic92.7e	65536	38fce272	4fe4d0838d21f3022b440a32ec69b25e936e62dd	maincpu	40000	good	no
ic91.7d	65536	d69c0722	ef18e7b7057f19caaa61d0b8c07d2d0c6e0a555e	maincpu	60000	good	no
25.ic27.2l	8192	d83359a2	2d486bf4a873abfe591e0d9383f9e230f47bc42a	mcu	0	good	no
ic96.7k	65536	d4febb03	6fe53b198bdcef1708ff134c64af9c064e274e1b	sprites	0	good	no
ic97.7l	65536	973d7bbc	409242ddc7eb90564a15b222641e53d11ab1e04a	sprites	10000	good	no
ic115.9k	65536	2328880b	a35c77a7d04614dbfbca4c79bb3e729115129ee4	sprites	20000	good	no
ic116.9l	65536	6da001ea	473ed89b77809b3b76bfa9f5ca4008c9534cdbb4	sprites	30000	good	no
ic94.7h	65536	92bc7fda	521d4a29e06eb8790fdeeba968f99a389f50a24e	sprites	40000	good	no
ic95.7j	65536	e63a5918	fd3374866f922cef72c0678aa751ad1e6f95a12a	sprites	50000	good	no
ic113.9h	65536	27caec8e	cc1943ba9548715425e799f418750cd70c3f88da	sprites	60000	good	no
ic114.9j	65536	1933eb65	4c24cfd059c11875f53b57cc020fbdbac903bd4a	sprites	70000	good	no
ic30.3d	65536	34ee2d77	38826e0318aa8da893fa4c93f217288c015df606	tiles0	0	good	no	if_b-a0.ic21
ic31.3e	65536	6bd2845b	149cf14f919590da88b9a8e254690da010709862	tiles0	10000	good	no	if_b-a1.ic22
ic29.3c	65536	090d50e5	4f2a7c76320b3f8dafae90a246187e034fe7562b	tiles0	20000	good	no	if_b-a2.ic20
ic32.3f	65536	3a8e3083	8a75d556790b6bea41ead1a5f95589dd293bdf4e	tiles0	30000	good	no	if_b-a3.ic23
ic35.3k	65536	b425c829	0ccd487dba00bb7cb0ff5d1c67f8fee3e68df5d8	tiles1	0	good	no	if_b-b0.ic26
ic36.3l	65536	e9bfe23e	f97a68dbdce7e06d07faab19acf7625cdc8eeaa8	tiles1	10000	good	no	if_b-b1.ic27
ic34.3j	65536	256e50f2	9e9fda4f1f1449548942c0da4478f61fe0d263d1	tiles1	20000	good	no	if_b-b2.ic25
ic33.3h	65536	4c682785	f61f1227e0ad629fdfca106306b17a9f6a9959e3	tiles1	30000	good	no	if_b-b3.ic24
ic28.lower.2n	65536	cb64a194	940fad6b9147bccc8290e112f5973f8ea062b52f	samples	0	good	no	if_c-v0.ic44
ic28.upper.2n	65536	45b68bf5	2fb28793019ca85b3b6d7c4c31eedff1d71f2d83	samples	10000	good	no	if_c-v1.ic45

chip

type	tag	name	clock
cpu	maincpu	NEC V30	8000000
cpu	soundcpu	Zilog Z80	3579545
cpu	mcu	Intel 80C31	8000000
audio	speaker	Speaker
audio	ymsnd	YM2151 OPM	3579545
audio	dac	8-Bit R-2R DAC

device_ref

name
v30
z80
pic8259
buffered_spriteram16
gfxdecode
palette
screen
speaker
generic_latch_8
rst_neg_buffer
m72_audio
ym2151
dac_8bit_r2r
mb8421_mb8431_16
generic_latch_8
generic_latch_8
i80c31

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	4	8	no
joy	2	4	8	no

port, analog

port_tag	analog_masks
:DSW
:IN0
:IN1

dipswitch

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW	3

location

name	number	inverted
SW1	1	no
SW1	2	no

value

name	value	default
2	2	no
3	3	yes
4	1	no
5	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW	12

location

name	number	inverted
SW1	3	no
SW1	4	no

value

name	value	default
Normal	12	yes
Hard	8	no
Hardest	4	no
Debug Mode 2 lap	0	no

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW	48	DSW	1024	eq	0

location

name	number	inverted
SW1	5	no
SW1	6	no

value

name	value	default
5 Coins/1 Credit	0	no
3 Coins/1 Credit	16	no
2 Coins/1 Credit	32	no
1 Coin/1 Credit	48	yes

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW	192	DSW	1024	eq	0

location

name	number	inverted
SW1	7	no
SW1	8	no

value

name	value	default
1 Coin/2 Credits	192	yes
1 Coin/3 Credits	128	no
1 Coin/5 Credits	64	no
1 Coin/6 Credits	0	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW	240	DSW	1024	ne	0

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default
6 Coins/1 Credit	160	no
5 Coins/1 Credit	176	no
4 Coins/1 Credit	192	no
3 Coins/1 Credit	208	no
8 Coins/3 Credits	16	no
2 Coins/1 Credit	224	no
5 Coins/3 Credits	32	no
3 Coins/2 Credits	48	no
1 Coin/1 Credit	240	yes
2 Coins/3 Credits	64	no
1 Coin/2 Credits	144	no
1 Coin/3 Credits	128	no
1 Coin/4 Credits	112	no
1 Coin/5 Credits	96	no
1 Coin/6 Credits	80	no
Free Play	0	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSW	256

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	256	yes
On	0	no

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	DSW	512

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Upright	0	yes
Cocktail	512	no

Coin Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Mode	DSW	1024

location

name	number	inverted
SW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Mode 1	1024	yes
Mode 2	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW	2048

location

name	number	inverted
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2048	no
On	0	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	4096

location

name	number	inverted
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4096	yes
On	0	no

Stop Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Stop Mode	DSW	8192

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8192	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	16384

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16384	yes
On	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSW	32768

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32768	yes
On	0	no
