mame (0289) • machine j5cira • Circus (JPM) (SYSTEM5, set 2)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
j5cira	jpm/jpmsys5sw.cpp		no	no	yes	yes	Circus (JPM) (SYSTEM5, set 2)	199?	JPM	j5cir	j5cir

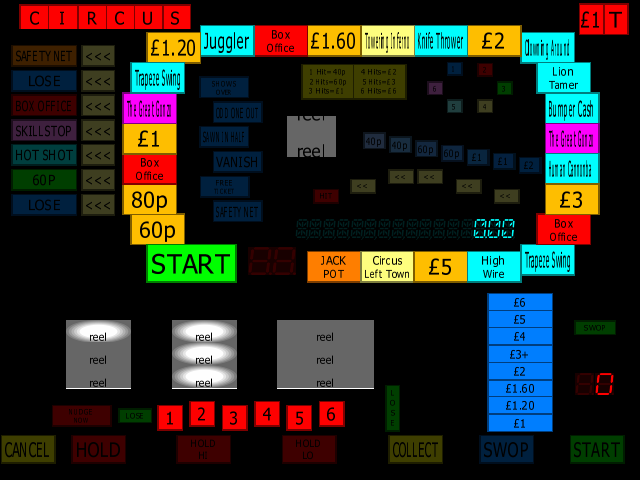

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
j5cira	46890	26/08/2026 15:26:52	640	480	96	96	0	Format24bppRgb	305:MAME 0.289 (mame0289)	a40a309b63a0ef2ca898f7c084bdb13d2d429686

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
circ_p1.bin	65536	da841a46	28320a169a22e61255ac33af87f83ab0d55ab335	maincpu	0	good	no
circ_p2.bin	65536	1704862c	1e388356ed7df7de345d6d2993bc7e36b0a51770	maincpu	1	good	no
circ_snd.bin	524288	a4402d73	e1760462734b8529f9ba374c36f9e0f2aa66264f	upd7759	0	good	no	circ_snd.bin

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	8000000
audio	mono	Speaker
audio	upd7759	NEC uPD7759	640000
audio	ym2413	YM2413 OPLL	4000000

device_ref

tag	name
:maincpu	m68000
:acia_irq	ipt_merge_any_hi
:bacta	bacta_datalogger
:acia6850_0	acia6850
:acia6850_1	acia6850
:acia6850_2	acia6850
:bacta_clock	clock
:acia_clock	clock
:nvram	nvram
:vfd	s16lf01
:6821pia	pia6821
:6840ptm	ptm6840
:meters	meters
:mono	speaker
:upd7759	upd7759
:ym2413	ym2413
:reel1	stepper
:reel2	stepper
:reel3	stepper
:reel4	stepper
:reel5	stepper
:reel6	stepper

sound

channels
1

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	5	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
only_buttons		14		no

port, analog

port_tag	analog_masks
:COINS
:DIRECT
:DSW
:DSW2
:ROTARY
:STROBE0
:STROBE1
:STROBE2
:STROBE3
:STROBE4
:STROBE5
:UNKNOWN_PORT

configuration

Rotary Switch

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Rotary Switch	ROTARY	15

setting

name	value	default
0	15	yes
1	14	no
2	13	no
3	12	no
4	11	no
5	10	no
6	9	no
7	8	no
8	6	no
9	7	no
10	5	no
11	4	no
12	3	no
13	2	no
14	1	no
15	0	no

dipswitch

Direct 0x08

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Direct 0x08	DIRECT	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	no
On	0	yes

Direct 0x10

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Direct 0x10	DIRECT	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Direct 0x20

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Direct 0x20	DIRECT	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Reset

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Reset	DIRECT	64

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Change state to enter test

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Change state to enter test	DSW	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	2

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Alarm

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Alarm	DSW	4

location

name	number	inverted
SW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Discontinue alarm when jam is cleared	4	yes
Continue alarm until back door open	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	8

location

name	number	inverted
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	16

location

name	number	inverted
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	32

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Payout Percentage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Payout Percentage	DSW	192

location

name	number	inverted
SW2	7	no
SW2	8	no

value

name	value	default
50%	0	yes
45%	128	no
40%	64	no
30%	192	no

Unknown 0x0001

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown 0x0001	UNKNOWN_PORT	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	no
On	0	yes

Unknown 0x0002

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown 0x0002	UNKNOWN_PORT	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Unknown 0x0004

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown 0x0004	UNKNOWN_PORT	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Unknown 0x0008

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown 0x0008	UNKNOWN_PORT	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	no
On	0	yes

Unknown 0x0010

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown 0x0010	UNKNOWN_PORT	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unknown 0x0020

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown 0x0020	UNKNOWN_PORT	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unknown 0x0040

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown 0x0040	UNKNOWN_PORT	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unknown 0x0080

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown 0x0080	UNKNOWN_PORT	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Unknown 0x0100

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown 0x0100	UNKNOWN_PORT	256

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	256	yes
On	0	no

Unknown 0x0200

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown 0x0200	UNKNOWN_PORT	512

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	512	yes
On	0	no

Unknown 0x0400

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown 0x0400	UNKNOWN_PORT	1024

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1024	yes
On	0	no

Unknown 0x0800

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown 0x0800	UNKNOWN_PORT	2048

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2048	yes
On	0	no

Unknown 0x1000

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown 0x1000	UNKNOWN_PORT	4096

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4096	yes
On	0	no

Unknown 0x2000

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown 0x2000	UNKNOWN_PORT	8192

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8192	yes
On	0	no

Unknown 0x4000

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown 0x4000	UNKNOWN_PORT	16384

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16384	yes
On	0	no

Unknown 0x8000

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown 0x8000	UNKNOWN_PORT	32768

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32768	yes
On	0	no

name	value	default
0	15	yes
1	14	no
2	13	no
3	12	no
4	11	no
5	10	no
6	9	no
7	8	no
8	6	no
9	7	no
10	5	no
11	4	no
12	3	no
13	2	no
14	1	no
15	0	no

name	value	default
0	15	yes
1	14	no
2	13	no
3	12	no
4	11	no
5	10	no
6	9	no
7	8	no
8	6	no
9	7	no
10	5	no
11	4	no
12	3	no
13	2	no
14	1	no
15	0	no

name	value	default
0	15	yes
1	14	no
2	13	no
3	12	no
4	11	no
5	10	no
6	9	no
7	8	no
8	6	no
9	7	no
10	5	no
11	4	no
12	3	no
13	2	no
14	1	no
15	0	no
