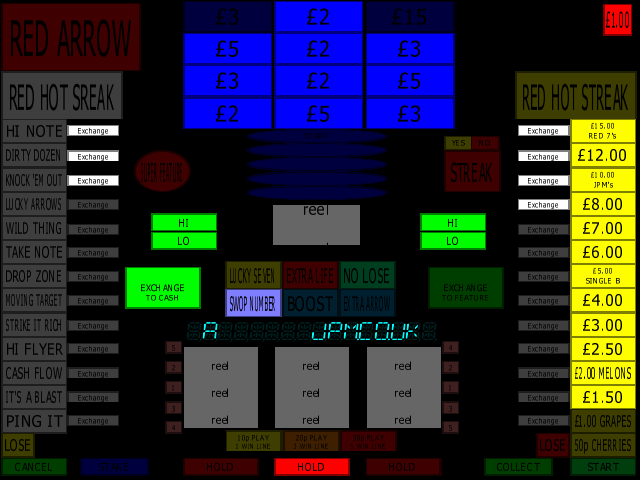

Red Arrow (JPM) (IMPACT) (set 10) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
j6redarwi	jpm/jpmimpctsw.cpp		no	no	yes	yes	Red Arrow (JPM) (IMPACT) (set 10)	199?	JPM	j6redarw	j6redarw

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
rear-7p1.bin	131072	86a8a2bf	1c7301c3e5a3ff1d791b21e617d50875c06a7463	maincpu	0	good	no
rear-7_2.bin	131072	962c6cac	dc5fb331df921ef7b94d2c0d3e7d0bb299e728a3	maincpu	1	good	no
rear-snd.bin	524288	7e8c05ce	616b0f94b94331f86d7b1fec11dd05cf9b0968cf	upd	0	good	no	rear-snd.bin

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	8000000
audio	mono	Speaker
audio	upd	NEC uPD7759	640000

device_ref

name
m68000
mc68681
duart_channel
duart_channel
timer
nvram
i8255
timer
timer
timer
timer
timer
timer
speaker
upd7759
meters
bacta_datalogger
s16lf01
stepper
stepper
stepper
stepper
stepper
stepper

sound

channels
1

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	6	yes	no
