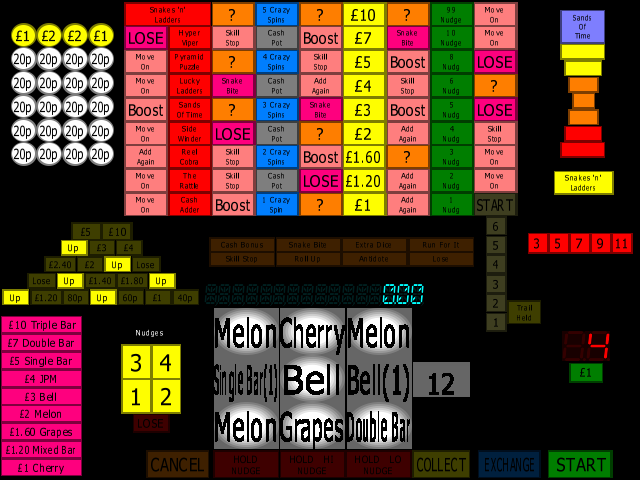

Snakes & Ladders (JPM) (IMPACT) (SL18 C22) (set 1)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
j6snakes	jpm/jpmimpctsw.cpp		no	no	yes	yes	Snakes & Ladders (JPM) (IMPACT) (SL18 C22) (set 1)	199?	JPM

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
20351.bin	131072	7f9685fd	b55c39ebbabd59a4c9aeea0f4337b8a629bad664	maincpu	0	good	no
20352.bin	131072	c51c0fb2	4eea976fe46b35f46553cd0645ff39d7ac62d988	maincpu	1	good	no
snla-snd.bin	524288	7902d8ef	222b0a18902619c9b4b29fa2485cb4e143c21bab	upd	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	8000000
audio	mono	Speaker
audio	upd	NEC uPD7759	640000

device_ref

tag	name
:maincpu	m68000
:main_duart	mc68681
:main_duart:cha	duart_channel
:main_duart:chb	duart_channel
:ip5wtimer	timer
:nvram	nvram
:ppi8255	i8255
:cointimer0	timer
:cointimer1	timer
:cointimer2	timer
:cointimer3	timer
:cointimer4	timer
:cointimer5	timer
:mono	speaker
:upd	upd7759
:meters	meters
:datalogger	bacta_datalogger
:vfd	s16lf01
:reel0	stepper
:reel1	stepper
:reel2	stepper
:reel3	stepper
:reel4	stepper
:reel5	stepper

sound

channels
1

input

players	coins	service	tilt
1	6	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
only_buttons		8		no

port, analog

port_tag	analog_masks
:COINS
:COIN_SENSE
:DSW
:J10_0
:J10_1
:J10_2
:J9_0
:J9_1
:J9_2
:PAYCOIN_LEVEL
:PERCENT
:PIA_PORTB
:PIA_PORTC
:TEST_DEMO

configuration

Jackpot / Prize Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Jackpot / Prize Key	J10_0	15

setting

name	value	default
Not Fitted	15	no
0x0e	14	no
0x0d	13	no
0x0c	12	no
0x0b	11	no
0x0a	10	no
0x09	9	no
10 GBP Cash	8	yes
0x07	7	no
0x06	6	no
0x05	5	no
0x04	4	no
0x03	3	no
0x02	2	no
0x01	1	no
0x00	0	no

Stake Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Stake Key	J10_0	112

setting

name	value	default
0x00	0	no
0x10	16	no
0x20	32	no
0x30	48	no
0x40	64	no
20p	80	yes
0x60	96	no
0x70	112	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	J10_0	128

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	128	yes

Percentage Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Percentage Key	PERCENT	15

setting

name	value	default
Not fitted / 68% (Invalid for UK Games)	15	no
70	14	no
72	13	no
74	12	no
76	11	no
78	10	no
80	9	no
82	8	no
84	7	no
86	6	no
88	5	no
90	4	no
92	3	no
94	2	no
96	1	no
98	0	yes

dipswitch

DSW 0x01

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DSW 0x01	DSW	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

DSW 0x02

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DSW 0x02	DSW	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

DSW 0x04

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DSW 0x04	DSW	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

DSW 0x08

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DSW 0x08	DSW	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

DSW 0x10

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DSW 0x10	DSW	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

DSW 0x20

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DSW 0x20	DSW	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

DSW 0x40

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DSW 0x40	DSW	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

DSW 0x80

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DSW 0x80	DSW	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

J10_1: 0x01

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
J10_1: 0x01	J10_1	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

J10_1: 0x02

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
J10_1: 0x02	J10_1	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

J10_1: 0x04

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
J10_1: 0x04	J10_1	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

J10_1: 0x08

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
J10_1: 0x08	J10_1	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

J10_1: 0x10

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
J10_1: 0x10	J10_1	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

J10_1: 0x20

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
J10_1: 0x20	J10_1	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

J10_1: 0x40

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
J10_1: 0x40	J10_1	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

J10_1: 0x80

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
J10_1: 0x80	J10_1	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

J10_2: 0x02

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
J10_2: 0x02	J10_2	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

J10_2: 0x04

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
J10_2: 0x04	J10_2	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

J10_2: 0x08

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
J10_2: 0x08	J10_2	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

J10_2: 0x10

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
J10_2: 0x10	J10_2	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

J10_2: 0x20

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
J10_2: 0x20	J10_2	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

J10_2: 0x40

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
J10_2: 0x40	J10_2	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

J10_2: 0x80

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
J10_2: 0x80	J10_2	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

J9_0: 0x80

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
J9_0: 0x80	J9_0	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

J9_1: 0x01

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
J9_1: 0x01	J9_1	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

J9_1: 0x02

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
J9_1: 0x02	J9_1	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

J9_1: 0x04

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
J9_1: 0x04	J9_1	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

J9_1: 0x08

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
J9_1: 0x08	J9_1	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

J9_1: 0x10

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
J9_1: 0x10	J9_1	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

J9_1: 0x20

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
J9_1: 0x20	J9_1	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

J9_1: 0x40

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
J9_1: 0x40	J9_1	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

J9_1: 0x80

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
J9_1: 0x80	J9_1	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

J9_2: 0x01

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
J9_2: 0x01	J9_2	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

J9_2: 0x02

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
J9_2: 0x02	J9_2	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

J9_2: 0x40

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
J9_2: 0x40	J9_2	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

J9_2: 0x80

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
J9_2: 0x80	J9_2	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

PAYCOIN_LEVEL: 0x01 (20p cash low)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
PAYCOIN_LEVEL: 0x01 (20p cash low)	PAYCOIN_LEVEL	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	no
On	0	yes

PAYCOIN_LEVEL: 0x02 (token f low)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
PAYCOIN_LEVEL: 0x02 (token f low)	PAYCOIN_LEVEL	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

PAYCOIN_LEVEL: 0x04 (token b low)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
PAYCOIN_LEVEL: 0x04 (token b low)	PAYCOIN_LEVEL	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	no
On	0	yes

PAYCOIN_LEVEL: 0x08 (100p cash low)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
PAYCOIN_LEVEL: 0x08 (100p cash low)	PAYCOIN_LEVEL	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	no
On	0	yes

PAYCOIN_LEVEL: 0x10 (token b full)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
PAYCOIN_LEVEL: 0x10 (token b full)	PAYCOIN_LEVEL	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	no
On	0	yes

PAYCOIN_LEVEL: 0x20

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
PAYCOIN_LEVEL: 0x20	PAYCOIN_LEVEL	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	no
On	0	yes

PAYCOIN_LEVEL: 0x40 (20p cash full)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
PAYCOIN_LEVEL: 0x40 (20p cash full)	PAYCOIN_LEVEL	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	no
On	0	yes

PAYCOIN_LEVEL: 0x80 (100p cash full)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
PAYCOIN_LEVEL: 0x80 (100p cash full)	PAYCOIN_LEVEL	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	no
On	0	yes

PIA_PORTB: 0x02

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
PIA_PORTB: 0x02	PIA_PORTB	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

PIA_PORTB: 0x04

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
PIA_PORTB: 0x04	PIA_PORTB	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

PIA_PORTB: 0x10

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
PIA_PORTB: 0x10	PIA_PORTB	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

PIA_PORTB: 0x20

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
PIA_PORTB: 0x20	PIA_PORTB	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

PIA_PORTB: 0x40

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
PIA_PORTB: 0x40	PIA_PORTB	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

PIA_PORTB: 0x80

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
PIA_PORTB: 0x80	PIA_PORTB	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

PIA_PORTC: 0x01

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
PIA_PORTC: 0x01	PIA_PORTC	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	no
On	0	yes

PIA_PORTC: 0x02

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
PIA_PORTC: 0x02	PIA_PORTC	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

PIA_PORTC: 0x04

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
PIA_PORTC: 0x04	PIA_PORTC	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	no
On	0	yes

PIA_PORTC: 0x08

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
PIA_PORTC: 0x08	PIA_PORTC	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	no
On	0	yes

Top Up Switch 0x20

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Top Up Switch 0x20	PIA_PORTC	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

clones

name	description
j6snakesf	Snakes & Ladders (JPM) (IMPACT) (SL10 C13) (set 7)
j6snakesd	Snakes & Ladders (JPM) (IMPACT) (SL16 C20) (set 5)
j6snakese	Snakes & Ladders (JPM) (IMPACT) (SL17 C21) (set 6)
j6snakesb	Snakes & Ladders (JPM) (IMPACT) (SL18 AC22) (set 3)
j6snakesc	Snakes & Ladders (JPM) (IMPACT) (SL18 C22) (set 4, Whitbread)
j6snakesa	Snakes & Ladders (JPM) (IMPACT) (SL18P C22) (set 2, Protocol)
j6snakesg	Snakes & Ladders (JPM) (IMPACT) (SL8P C11) (set 8)
j6snakesi	Snakes & Ladders (JPM) (SL11 AC14) (IMPACT) (set 10)
j6snakesh	Snakes & Ladders (JPM) (SL11 C14) (IMPACT) (set 9)
j6snakesj	Snakes & Ladders (JPM) (SL11P CA4) (IMPACT) (set 11, Protocol)
j6snakesk	Snakes & Ladders (JPM) (SL15 C18) (IMPACT) (set 12)
j6snakesl	Snakes & Ladders (JPM) (SLB C2) (IMPACT) (set 13)

Snakes & Ladders (JPM) (IMPACT) (SL18 C22) (set 1) - mame (0287) machine

machine

driver

rom

chip

device_ref

sound

input

control

port, analog

configuration

Jackpot / Prize Key

setting

Stake Key

setting

Unknown

setting

Percentage Key

setting

dipswitch

DSW 0x01

value

DSW 0x02

value

DSW 0x04

value

DSW 0x08

value

DSW 0x10

value

DSW 0x20

value

DSW 0x40

value

DSW 0x80

value

J10_1: 0x01

value

J10_1: 0x02

value

J10_1: 0x04

value

J10_1: 0x08

value

J10_1: 0x10

value

J10_1: 0x20

value

J10_1: 0x40

value

J10_1: 0x80

value

J10_2: 0x02

value

J10_2: 0x04

value

J10_2: 0x08

value

J10_2: 0x10

value

J10_2: 0x20

value

J10_2: 0x40

value

J10_2: 0x80

value

J9_0: 0x80

value

J9_1: 0x01

value

J9_1: 0x02

value

J9_1: 0x04

value

J9_1: 0x08

value

J9_1: 0x10

value

J9_1: 0x20

value
