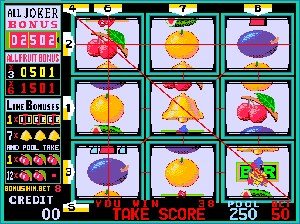

Joker Master 2000 Special Edition (V512) - mame (0281) machine

MAME: 0281 - Released: 2025-09-24T18:40:45 - Machines: 49006 - rom: 365545 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
jkrmastb	igs/goldstar.cpp		no	no	no	yes	Joker Master 2000 Special Edition (V512)	1999	Pick-A-Party USA	jkrmast	jkrmast

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	224	60.000000	7864320	512	0	512	256	16	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
v512_27c512.bin	65536	22aa8b9f	0e06f6491d6c1e74ba7e721866b10d89c4be2e7c	maincpu	4000	good	no
2000b.u48	131072	e7b406ec	c0a10cf8bf5467ecfe3c90e6897db3ab9aae0127	gfx1	0	good	no	2000b.u48
2000a.u41	131072	cb8b1563	c8c3ae646a9f3a7482d83566e4b3e18441c5d67f	gfx2	0	good	no	2000a.u41
n82s147a.u13	512	da92f0ae	1269a2029e689a5f111c57e80825b3756b50521e	colours	0	good	no	n82s147a.u13
n82s129.u28	256	cfb152cf	3166b9b21be4ce1d3b6fc8974c149b4ead03abac	proms2	0	good	no	n82s129.u28

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3000000
audio	mono	Speaker
audio	aysnd	AY-3-8910A PSG	1500000

device_ref

name
z80
i8255
i8255
screen
gfxdecode
palette
nvram
speaker
ay8910
ticket_dispenser

sound

channels
1

input

players	coins	service	tilt
1	4	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
gambling		9		no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:DSW3
:DSW4
:IN0
:IN1
:IN2

dipswitch

Hopper Out Switch

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Out Switch	DSW1	1

location

name	number	inverted
DSW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Low	1	yes
High	0	no

Hopper Out by Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Out by Coin A	DSW1	2

location

name	number	inverted
DSW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Hopper Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Limit	DSW1	4

location

name	number	inverted
DSW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Unlimited	4	yes
1,000	0	no

Coin In Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin In Limit	DSW1	24

location

name	number	inverted
DSW1	4	no
DSW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1,000	24	no
5,000	16	yes
10,000	8	no
20,000	0	no

Credit Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credit Limit	DSW1	96

location

name	number	inverted
DSW1	6	no
DSW1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5,000	96	no
10,000	64	no
30,000	32	yes
Unlimited	0	no

Type Of Payout

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Type Of Payout	DSW1	128

location

name	number	inverted
DSW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Switch	128	yes
Auto	0	no

Main Game Pay Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Main Game Pay Rate	DSW2	3

location

name	number	inverted
DSW2	1	no
DSW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
40%	0	no
50%	1	no
60%	2	no
70%	3	yes

Ticket Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Ticket Game	DSW2	4

location

name	number	inverted
DSW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Min Bet To Start

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Min Bet To Start	DSW2	8

location

name	number	inverted
DSW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	8	yes
8	0	no

Min Bet For Bonus

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Min Bet For Bonus	DSW2	16

location

name	number	inverted
DSW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
8	16	yes
16	0	no

Max Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Max Bet	DSW2	96

location

name	number	inverted
DSW2	6	no
DSW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
16	96	no
32	64	no
64	32	yes
96	0	no

Double Up Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game	DSW2	128

location

name	number	inverted
DSW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	no
On	0	yes

Game Reel Speed

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game Reel Speed	DSW3	1

location

name	number	inverted
DSW3	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Low	1	yes
High	0	no

Continuous Spin

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Continuous Spin	DSW3	2

location

name	number	inverted
DSW3	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	2	yes
Continuous	0	no

Coin Out Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Out Rate	DSW3	4

location

name	number	inverted
DSW3	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	4	yes
10	0	no

Bonus Games Condition

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Games Condition	DSW3	24

location

name	number	inverted
DSW3	4	no
DSW3	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3-2-1	0	no
6-3-1	8	no
9-5-1	16	no
12-7-1	24	yes

Joker Bonus Range

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Joker Bonus Range	DSW3	32

location

name	number	inverted
DSW3	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2501-5000	32	yes
5001-9999	0	no

Fruit Bonus Range

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Fruit Bonus Range	DSW3	64

location

name	number	inverted
DSW3	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1500-2500	64	yes
2500-5000	0	no

Check Account

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Check Account	DSW3	128

location

name	number	inverted
DSW3	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Key IN & Ticket OUT Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key IN & Ticket OUT Rate	DSW4	3

location

name	number	inverted
DSW4	1	no
DSW4	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	3	no
10	2	no
50	1	no
100	0	yes

Coin A Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A Rate	DSW4	12

location

name	number	inverted
DSW4	3	no
DSW4	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	12	no
5	8	no
10	4	yes
25	0	no

Coin D Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin D Rate	DSW4	48

location

name	number	inverted
DSW4	5	no
DSW4	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	48	no
5	32	no
10	16	no
25	0	yes

Coin C Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin C Rate	DSW4	192

location

name	number	inverted
DSW4	7	no
DSW4	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5	192	no
10	128	no
25	64	no
50	0	yes
