Juku E5104 - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
juku	ussr/juku.cpp		no	no	no	yes	Juku E5104	1988	EKTA

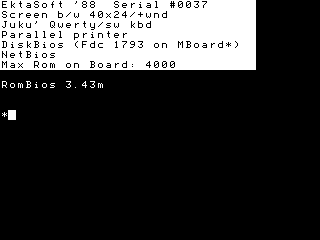

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
juku	2562	29/12/2025 11:31:26	320	240	96	96	0	Format24bppRgb	305:MAME 0.213 (Aug 29 2019)	e5709d9de93cf8507a92905b7461cd42a9ba4671

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	241	49.920128	8000000	512	128	448	313	47	288	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	status	optional	bios
jmon33.bin	16384	ed22c287	76407d99bf83035ef526d980c9468cb04972608c	maincpu	good	no	jmon3.3
ekta24.bin	16384	6ce7ee3b	a7185d747c94cd519868692ed3d10fade90dd6d5	maincpu	good	no	3.42_24
ekta31.bin	16384	761cfa16	73d62c032be1de06c0dd5618f4abccd4d0f3a329	maincpu	good	no	3.43_31
ekta32.bin	16384	72c0da53	57311d53f6fe1e87e0755990f400253caccd4795	maincpu	good	no	2.43_32
ekta35.bin	16384	85a017bc	7aa03497d88cfab9315aa3987765bc06ecb70013	maincpu	good	no	3.43m_35
ekta37.bin	16384	2c1c9cad	29366d74c0e27129f2484a973f7a6de659b90cf4	maincpu	good	no	3.43m_37
ekta43.bin	16384	05678f9f	a7419bfd8249871cc7dbf5c6ea85022d6963fc9a	maincpu	good	no	2.43m_43
jbasic11.bin	8192	078259dc	27e40395e8b49e2f9febf2b23773fbfe251befcf	expcart	good	no	3.42_24
jbasic11.bin	8192	078259dc	27e40395e8b49e2f9febf2b23773fbfe251befcf	expcart	good	no	3.43_31
jbasic11.bin	8192	078259dc	27e40395e8b49e2f9febf2b23773fbfe251befcf	expcart	good	no	2.43_32
jbasic11.bin	8192	078259dc	27e40395e8b49e2f9febf2b23773fbfe251befcf	expcart	good	no	3.43m_35
jbasic11.bin	8192	078259dc	27e40395e8b49e2f9febf2b23773fbfe251befcf	expcart	good	no	3.43m_37
jbasic11.bin	8192	078259dc	27e40395e8b49e2f9febf2b23773fbfe251befcf	expcart	good	no	2.43m_43

chip

type	tag	name	clock
cpu	maincpu	Intel 8080A	2000000
audio	mono	Speaker
audio	speaker	Filtered DAC
audio	fdc:0:525qd:flopsndout	Speaker
audio	fdc:0:525qd:floppysound	Floppy sound	44100
audio	fdc:1:525qd:flopsndout	Speaker
audio	fdc:1:525qd:floppysound	Floppy sound	44100

softwarelist

tag	name	status	filter
floppy_list	juku	original

device_ref

tag	name
:maincpu	i8080a
:pic	pic8259
:pit0	pit8253
:pit0:counter0	pit_counter
:pit0:counter1	pit_counter
:pit0:counter2	pit_counter
:pit1	pit8253
:pit1:counter0	pit_counter
:pit1:counter1	pit_counter
:pit1:counter2	pit_counter
:pit2	pit8253
:pit2:counter0	pit_counter
:pit2:counter1	pit_counter
:pit2:counter2	pit_counter
:pio0	i8255
:pio1	i8255
:sio0	i8251
:sio1	i8251
:screen	screen
:mono	speaker
:speaker	speaker_sound_device
:keyenc	74148
:mouse	juku_mouse
:fdc	kr1818vg93
:fdc:0	floppy_connector
:fdc:0:525qd	floppy_525_qd
:fdc:0:525qd:flopsndout	speaker
:fdc:0:525qd:floppysound	flopsnd
:fdc:1	floppy_connector
:fdc:1:525qd	floppy_525_qd
:fdc:1:525qd:flopsndout	speaker
:fdc:1:525qd:floppysound	flopsnd
:floppy_list	software_list

biosset

name	description	default
jmon3.3	Monitor/Bootstrap 3.3 \w JBASIC	no
3.42_24	Disk/Net \w JUSS keyb (3.42 #0024)	no
3.43_31	Disk/Net (3.43 #0031)	no
2.43_32	Tape/Disk (2.43 #0032)	no
3.43m_35	Disk/Net \w JUSS keyb (3.43m #0035)	no
3.43m_37	Disk/Net (3.43m #0037)	yes
2.43m_43	Tape/Disk \w AT keyb (2.43m #0043)	no

sound

channels
3

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
floppydisk	fdc:0:525qd	floppy_5_25			floppydisk1	flop1
floppydisk	fdc:1:525qd	floppy_5_25			floppydisk2	flop2

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
floppydisk	fdc:0:525qd	floppy_5_25			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, juk
floppydisk	fdc:1:525qd	floppy_5_25			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, juk

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
mouse		2		no	0	255	23
keyboard		72		no

port, analog

port_tag	analog_masks
:COL.0
:COL.1
:COL.10
:COL.11
:COL.12
:COL.13
:COL.14
:COL.15
:COL.2
:COL.3
:COL.4
:COL.5
:COL.6
:COL.7
:COL.8
:COL.9
:SPECIAL
:mouse:BUTTONS
:mouse:MOUSE_X	255
:mouse:MOUSE_Y	255

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
fdc:0	525ssqd	floppy_525_ssqd	no
fdc:0	525qd	floppy_525_qd	yes
fdc:1	525ssqd	floppy_525_ssqd	no
fdc:1	525qd	floppy_525_qd	yes

dipswitch

B4_2

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
B4_2	COL.10	64

location

name	number	inverted
CONTRDAT1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

B5_2

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
B5_2	COL.10	128

location

name	number	inverted
CONTRDAT2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	128	yes

B4_3

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
B4_3	COL.11	64

location

name	number	inverted
CONTRDAT1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

B5_3

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
B5_3	COL.11	128

location

name	number	inverted
CONTRDAT2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	128	yes

B4_4

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
B4_4	COL.12	64

location

name	number	inverted
CONTRDAT1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

B5_4

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
B5_4	COL.12	128

location

name	number	inverted
CONTRDAT2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	128	yes

B4_5

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
B4_5	COL.13	64

location

name	number	inverted
CONTRDAT1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

B5_5

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
B5_5	COL.13	128

location

name	number	inverted
CONTRDAT2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	128	yes

B4_6

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
B4_6	COL.14	64

location

name	number	inverted
CONTRDAT1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

B5_6

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
B5_6	COL.14	128

location

name	number	inverted
CONTRDAT2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	128	yes

B4_7

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
B4_7	COL.15	64

location

name	number	inverted
CONTRDAT1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

B5_7

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
B5_7	COL.15	128

location

name	number	inverted
CONTRDAT2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	128	yes

B4_0

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
B4_0	COL.8	64

location

name	number	inverted
CONTRDAT1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

B5_0

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
B5_0	COL.8	128

location

name	number	inverted
CONTRDAT2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	128	yes

B4_1

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
B4_1	COL.9	64

location

name	number	inverted
CONTRDAT1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

B5_1

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
B5_1	COL.9	128

location

name	number	inverted
CONTRDAT2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	128	yes
