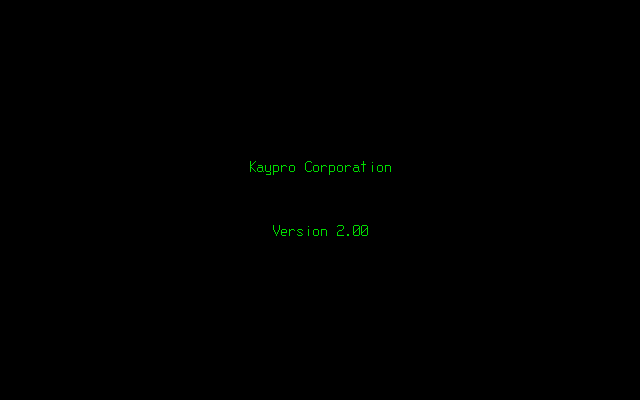

Kaypro 4/84 - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
kaypro484	kaypro/kaypro.cpp		no	no	no	yes	Kaypro 4/84	1984	Kaypro Corporation

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	640	400	49.361590	18000000	856	0	640	426	0	400	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	no	no	no	no

rom

name	size	crc	sha1	region	status	optional	bios
81-292a.u34	4096	241f27a5	82711289d19e9b165e35324da010466d225e503a	roms	good	no	292a
trom34.rom	8192	0ec6d39a	8c2a92b8642e144452c28300bf50a00a11a060cd	roms	good	no	turbo
kplus84.rom	8192	4551905a	48f0964edfad05b214810ae5595638245c30e5c0	roms	good	no	kplus
pro884mx.rom	8192	febc6f51	1f009aa9b7c9a3eddd0ee6ea7321a1c47c3e9807	roms	good	no	pro884
pro884v5.rom	8192	fe0051b1	cac429154d40e21174ae05ceb0017b62473cdebd	roms	good	no	pro8v5
81-235.u9	4096	5f72da5b	8a597000cce1a7e184abfb7bebcb564c6bf24fb7	chargen	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	4000000
cpu	kbd:mcu	Intel 8049	6000000
audio	mono	Speaker
audio	beeper	Beep	950
audio	kbd:keyboard	Speaker
audio	kbd:bell	Filtered DAC
audio	fdc:0:525dd:flopsndout	Speaker
audio	fdc:0:525dd:floppysound	Floppy sound	44100
audio	fdc:1:525dd:flopsndout	Speaker
audio	fdc:1:525dd:floppysound	Floppy sound	44100

softwarelist

tag	name	status	filter
flop_list	kaypro	original	C

device_ref

name
z80
screen
timer
gfxdecode
palette
speaker
beep
mc6845
quickload
kaypro10kbd
i8049
speaker
speaker_sound_device
clock
centronics
centronics_printer
printer_image
output_latch
rs232
rs232
z80sio
z80sio_channel
z80sio_channel
z80sio
z80sio_channel
z80sio_channel
com8116
fd1793
floppy_connector
floppy_525_dd
speaker
flopsnd
floppy_connector
floppy_525_dd
speaker
flopsnd
software_list
z80pio
mm58167

biosset

name	description	default
292a	81-292a for Kaypro Bd. 81-184	no
turbo	Advent Turbo ROM	no
kplus	MICROCode Consulting KayPLUS 84	no
pro884	MicroCornucopia pro884 SuperMax 2.7	no
pro8v5	MicroCornucopia Pro8 V5	no

sound

channels
4

device, instance

type	tag	interface	name	briefname
quickload	quickload		quickload	quik
printout	centronics:printer:printer		printout	prin
floppydisk	fdc:0:525dd	floppy_5_25	floppydisk1	flop1
floppydisk	fdc:1:525dd	floppy_5_25	floppydisk2	flop2

device, extension

type	tag	interface	extension_names
quickload	quickload		com, cpm
printout	centronics:printer:printer		prn
floppydisk	fdc:0:525dd	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, kay
floppydisk	fdc:1:525dd	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, kay

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keyboard		75		no

port, analog

port_tag	analog_masks
:kbd:MOD
:kbd:ROW.0
:kbd:ROW.1
:kbd:ROW.2
:kbd:ROW.3
:kbd:ROW.4
:kbd:ROW.5
:kbd:ROW.6
:kbd:ROW.7
:kbd:ROW.8
:kbd:ROW.9
:kbd:ROW.A
:kbd:ROW.B
:kbd:ROW.C
:kbd:ROW.D
:kbd:ROW.E
:kbd:ROW.F

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
centronics	nlq401	nlq401	no
centronics	smartboard	centronics_smartboard	no
centronics	chessmec	centronics_chessmec	no
centronics	samdac	centronics_samdac	no
centronics	covox_stereo	covox_stereo	no
centronics	adaptator	adaptator_multitap	no
centronics	digiblst	cpcdigiblst	no
centronics	lx800	lx800	no
centronics	jx80	epson_jx80	no
centronics	ap2000	ap2000	no
centronics	ex800	ex800	no
centronics	fx80	epson_fx80	no
centronics	rx80	epson_rx80	no
centronics	covox	covox	no
centronics	pl80	comx_pl80	no
centronics	lx810l	lx810l	no
centronics	p72	p72	no
centronics	printer	centronics_printer	yes
modem	terminal	serial_terminal	no
modem	sunkbd	sunkbd_adaptor	no
modem	dec_loopback	dec_rs232_loopback	no
modem	ie15	ie15_terminal	no
modem	null_modem	null_modem	no
modem	keyboard	serial_keyboard	no
modem	patch	rs232_patch_box	no
modem	swtpc8212	swtpc8212_terminal	no
modem	printer	serial_printer	no
modem	scorpion	scorpion_ic	no
modem	loopback	rs232_loopback	no
modem	mockingboard	mockingboardd	no
modem	msystems_mouse	rs232_mouse_hle_msystems	no
modem	nss_tvi	nss_tvinterface	no
modem	rs232_sync_io	rs232_sync_io	no
modem	pty	pseudo_terminal	no
modem	rs_printer	rs_serial_printer	no
serprn	terminal	serial_terminal	no
serprn	sunkbd	sunkbd_adaptor	no
serprn	dec_loopback	dec_rs232_loopback	no
serprn	ie15	ie15_terminal	no
serprn	null_modem	null_modem	no
serprn	keyboard	serial_keyboard	no
serprn	patch	rs232_patch_box	no
serprn	swtpc8212	swtpc8212_terminal	no
serprn	printer	serial_printer	no
serprn	scorpion	scorpion_ic	no
serprn	loopback	rs232_loopback	no
serprn	mockingboard	mockingboardd	no
serprn	msystems_mouse	rs232_mouse_hle_msystems	no
serprn	nss_tvi	nss_tvinterface	no
serprn	rs232_sync_io	rs232_sync_io	no
serprn	pty	pseudo_terminal	no
serprn	rs_printer	rs_serial_printer	no
fdc:0	525qd	floppy_525_qd	no
fdc:0	525dd	floppy_525_dd	yes
fdc:0	525ssdd	floppy_525_ssdd	no
fdc:1	525qd	floppy_525_qd	no
fdc:1	525dd	floppy_525_dd	yes
fdc:1	525ssdd	floppy_525_ssdd	no
