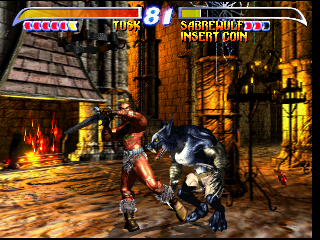

Killer Instinct 2 (upgrade kit) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
kinst2uk	rare/kinst.cpp		no	no	no	yes	Killer Instinct 2 (upgrade kit)	1996	Rare (Midway license)	kinst2	kinst2

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	240	58.981183	6250000	406	0	320	261	0	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
ki2-l14k.u98	524288	9cbd00a8	926dce4bb9016331ea40d3c337a9ace896f07493	user1	0	good	no		v1.4k
ki2-l13k.u98	524288	3b4f16fc	c28416f94453fd1f73ba01025276a04610569d12	user1	0	good	no		v1.3k
ki2_d14p.u98	524288	d716d428	1a3b000fdc35b3824a0c8142ba9b496490894543	user1	0	good	no		v1.4-anyide
ki2_l1.u10	524288	fdf6ed51	acfc9460cd5df01403b7f00b2f68c2a8734ad6d3	dcs	0	good	no	ki2_l1.u10
ki2_l1.u11	524288	f9e70024	fe7fc78f1c60b15f2bbdc4c455f55cdf30f48ed4	dcs	200000	good	no	ki2_l1.u11
ki2_l1.u12	524288	2994c199	9997a83432cb720f65b40a8af46f31a5d0d16d8e	dcs	400000	good	no	ki2_l1.u12
ki2_l1.u13	524288	3fe6327b	7ff164fc2f079d039921594be92208973d43aa03	dcs	600000	good	no	ki2_l1.u13
ki2_l1.u33	524288	6f4dcdcf	0ab6dbfb76e9fa2db072e287864ad1f9d514dd9b	dcs	800000	good	no	ki2_l1.u33
ki2_l1.u34	524288	5db48206	48456a7b6592c40bc9c664dcd2ee2cfd91942811	dcs	a00000	good	no	ki2_l1.u34
ki2_l1.u35	524288	7245ce69	24a3ff009c8a7f5a0bfcb198b8dcb5df365770d3	dcs	c00000	good	no	ki2_l1.u35
ki2_l1.u36	524288	8920acbb	0fca72c40067034939b984b4bf32972a5a6c26af	dcs	e00000	good	no	ki2_l1.u36

disk

name	merge	sha1	region	index	writable	status	optional
kinst2	kinst2	e7c9291b4648eae0012ea0cc230731ed4987d1d5	ata:0:hdd	0	yes	good	no

chip

type	tag	name	clock
cpu	maincpu	MIPS R4600 (little)	100000000
cpu	dcs:dcs	Analog Devices ADSP-2105	10000000
audio	mono	Speaker
audio	dcs	DCS Audio 2K
audio	dcs:dac	DMA-driven DAC

device_ref

name
r4600le
ata_interface
ata_slot
idehd
harddisk_image
ata_slot
screen
palette
speaker
dcs_audio_2k
adsp2105
timer
timer
dmadac

biosset

name	description	default
v1.4k	Killer Instinct 2 (v1.4k, upgrade kit)	yes
v1.3k	Killer Instinct 2 (v1.3k, upgrade kit)	no
v1.4-anyide	Killer Instinct 2 (v1.4k, upgrade kit AnyIDE)	no

sound

channels
1

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
harddisk	ata:0:hdd:image	ide_hdd,hdd			harddisk	hard

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
harddisk	ata:0:hdd:image	ide_hdd,hdd			chd, hd, hdv, 2mg, hdi

input

players	coins	service	tilt
2	4	yes	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	6	8	no
joy	2	6	8	no

port, analog

port_tag	analog_masks
:DSW
:P1
:P2
:UNUSED
:VOLUME

dipswitch

Blood Level

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Blood Level	DSW	3

value

name	value	default
High	3	yes
Medium	2	no
Low	1	no
None	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	4	yes

Finishing Moves

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Finishing Moves	DSW	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	8	yes

Display Warning

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Display Warning	DSW	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	16	yes

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Coinage Source

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage Source	DSW	256

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Dipswitch	256	yes
Disk	0	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW	15872

value

name	value	default
USA-1	15872	yes
USA-2	15360	no
USA-3	14848	no
USA-4	14336	no
USA-9	13312	no
USA-10	12800	no
USA-ECA	13824	no
USA-Free Play	12288	no
German-1	11776	no
German-2	11264	no
German-3	10752	no
German-4	10240	no
German-ECA	9728	no
German-Free Play	8192	no
French-1	7680	no
French-2	7168	no
French-3	6656	no
French-4	6144	no
French-ECA	5632	no
French-Free Play	4096	no

Coin Counters

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Counters	DSW	16384

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	16384	yes
2	0	no

Test Switch

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Test Switch	DSW	32768

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32768	yes
On	0	no
