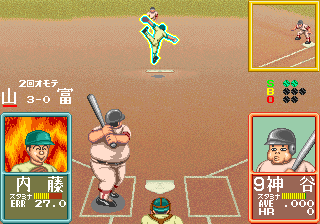

Ah Eikou no Koshien (Japan) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
koshien	taito/taito_f2.cpp		no	no	no	yes	Ah Eikou no Koshien (Japan)	1990	Taito Corporation

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	224	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
c81-11.bin	131072	b44ea8c9	f1d19f531b7a653f1c4244d612a339d95ce8cc7c	maincpu	0	good	no
c81-10.bin	131072	8f98c40a	f9471306c47ced10a56c09794954e55fdb6f6b85	maincpu	1	good	no
c81-04.bin	524288	1592b460	d42514b4d588d0376914832f0e07ce626d1cdee0	maincpu	80000	good	no
c81-03.bin	1048576	29bbf492	bd370b1de256a432821b443a6653aab8507fb3a7	tc0100scn_1	0	good	no
c81-01.bin	1048576	64b15d2a	18b3b405f77ad80781e3fce4ef021ba49f707ed6	sprites	0	good	no
c81-02.bin	1048576	962461e8	cb0313b00681c36110eed50eae41ad98eb22205d	sprites	100000	good	no
c81-12.bin	65536	6e8625b6	212d384aa6ed43f5389739863afecbf0ad68af14	audiocpu	0	good	no
c81-05.bin	524288	9c3d71be	79f1bb40d8356d9fc93b569c20be15e7fbf34580	ymsnd:adpcma	0	good	no
c81-06.bin	524288	927833b4	c09240e4885d2eace1c64fa6425faeeea0296d98	ymsnd:adpcmb	0	good	no
pal16l8b-c81-07.bin	260	46341732	af652621cb96f656fd1f9ed20daeb076641aeb08	plds	0	good	no
pal16l8b-c81-08.bin	260	e7d2d300	20a1a258230d5be73381c97509437a9e76de958c	plds	200	good	no
pal16l8b-c81-09.bin	260	e4c012a1	56746ce42fd64bf04e17132811de291a1bfa5451	plds	400	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	12000000
cpu	audiocpu	Zilog Z80	4000000
audio	speaker	Speaker
audio	ymsnd	YM2610 OPNB	8000000

device_ref

name
m68000
z80
screen
gfxdecode
palette
speaker
ym2610
tc0140syt
tc0510nio
watchdog
tc0100scn
tc0360pri

sound

channels
1

input

players	coins	service	tilt
2	2	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	3	8	no
joy	2	3	8	no

port, analog

port_tag	analog_masks
:DSWA
:DSWB
:IN0
:IN1
:IN2

dipswitch

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSWA	1

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSWA	2

location

name	number	inverted
SW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSWA	4

location

name	number	inverted
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSWA	8

location

name	number	inverted
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	8	yes

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSWA	48

location

name	number	inverted
SW1	5	no
SW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3 Coins/1 Credit	0	no
2 Coins/1 Credit	16	no
1 Coin/1 Credit	48	yes
1 Coin/2 Credits	32	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSWA	192

location

name	number	inverted
SW1	7	no
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3 Coins/1 Credit	0	no
2 Coins/1 Credit	64	no
1 Coin/1 Credit	192	yes
1 Coin/2 Credits	128	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSWB	3

location

name	number	inverted
SW2	1	no
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	2	no
Medium	3	yes
Hard	1	no
Hardest	0	no

Timer

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Timer	DSWB	4

location

name	number	inverted
SW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	4	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSWB	8

location

name	number	inverted
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSWB	48

location

name	number	inverted
SW2	5	no
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2	32	no
3	48	yes
4	16	no
5	0	no

Allow Continue

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Allow Continue	DSWB	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	64	yes

Upright Controls

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Upright Controls	DSWB	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Single	128	no
Dual	0	yes
