mame (0289) • machine kt76 • KT-76

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
kt76	ensoniq/esqkt.cpp		no	no	no	yes	KT-76	1996	Ensoniq

snap

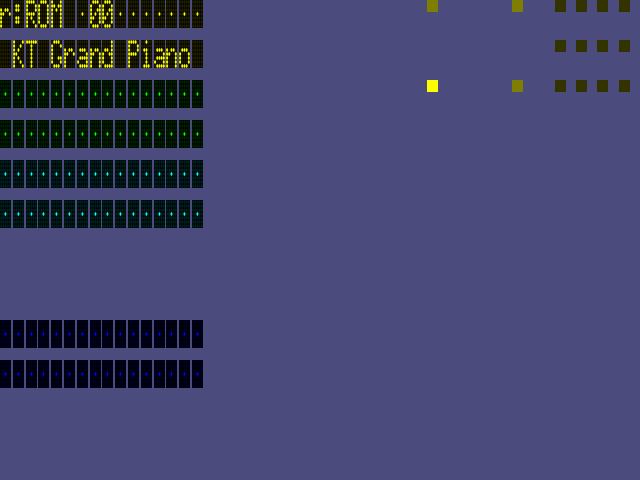

KT-76 png snap

KT-76 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
kt76	4225	20/01/2026 10:48:14	640	480	96	96	0	Format24bppRgb	305:MAME 0.284 (mame0284)	c5ff8417781c870d098e8b9805e3afa4f6f77ddd

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
1351000401_rom0.u103	2097152	425047af	9680d1fc222b29ba24f0fbf6136982bee87a60ef	waverom	1	good	no
1351000402_rom1.u102	2097152	64459185	0fa20b16847fc02a384057fc3d385226eb3e7527	waverom2	1	good	no
1351000403_rom2.u104	2097152	c2aacc5d	7fab518ba92ddb23cdc4dcb04751b26d25c298c0	waverom3	1	good	no
kt76_162_hi.bin	262144	de16d236	c55fca86453e90e8c34a048bed45817063237370	osrom	0	good	no
kt76_162_lo.bin	131072	1a1ab910	dcc80db2297fd25993e090c2e5bb7f947319a8bf	osrom	2	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68EC020	16000000
cpu	esp	Ensoniq ES5510	10000000
audio	speaker	Speaker
audio	pump	Ensoniq 5505/5506 to 5510 interface	31250
audio	ensoniq1	Ensoniq ES5506	16000000
audio	ensoniq2	Ensoniq ES5506	16000000

device_ref

tag	name
:maincpu	m68ec020
:esp	es5510
:sq1panel	esqpanel216_sq1
:sq1panel:vfd	esq2x16_sq1
:duart	scn2681
:duart:cha	duart_channel
:duart:chb	duart_channel
:mdin	midi_port
:mdin:midiin	midiin_port
:mdin:midiin:midiinimg	midiin
:mdout	midi_port
:mdout:midiout	midiout_port
:mdout:midiout:midioutimg	midiout
:speaker	speaker
:pump	esq_5505_5510_pump
:ensoniq1	es5506
:ensoniq2	es5506

sound

channels
1

feature

type	status	overall
sound	imperfect

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
midiin	mdin:midiin:midiinimg				midiin	min
midiout	mdout:midiout:midioutimg				midiout	mout

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
midiin	mdin:midiin:midiinimg				mid, syx
midiout	mdout:midiout:midioutimg				mid

input

players	coins	service	tilt
1		no	no

port, analog

port_tag	analog_masks
:mdin:midiin:midiinimg:CFG

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
mdin	midiin	midiin_port	yes
mdout	midiout	midiout_port	yes

configuration

MIDI file mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
MIDI file mode	mdin:midiin:midiinimg:CFG	255

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Multi	255	yes
Poly: Channel 1	0	no
Poly: Channel 2	1	no
Poly: Channel 3	2	no
Poly: Channel 4	3	no
Poly: Channel 5	4	no
Poly: Channel 6	5	no
Poly: Channel 7	6	no
Poly: Channel 8	7	no
Poly: Channel 9	8	no
Poly: Channel 10	9	no
Poly: Channel 11	10	no
Poly: Channel 12	11	no
Poly: Channel 13	12	no
Poly: Channel 14	13	no
Poly: Channel 15	14	no
Poly: Channel 16	15	no
