KZ-26 - mame (0288) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
kz26	pinball/play_3.cpp	genpin	no	no	yes	yes	KZ-26	1984	Playmatic

snap

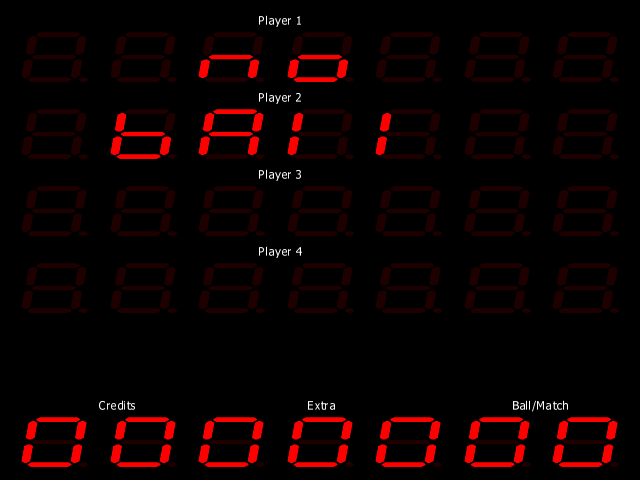

KZ-26 png snap

KZ-26 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
kz26	13074	20/03/2026 14:54:25	640	480	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	49d0668542971c1099d7bfdea3be3d10fce3b3b7

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
kz26.cpu	8192	8030a699	4f86b325801d8ce16011f7b6ba2f3633e2f2af35	maincpu	0	good	no
sound1.su3	8192	8ad1a804	6177619f09af4302ffddd8c0c1b374dab7f47e91	audiocpu	0	good	no
sound2.su4	2048	355dc9ad	eac8bc27157afd908f9bc5b5a7c40be5b9427269	audiocpu	2000	good	no

chip

type	tag	name	clock
cpu	maincpu	RCA CDP1802	3579545
cpu	audiocpu	RCA CDP1802	3579545
audio	mechvol	Speaker
audio	samples	Samples
audio	speaker	Speaker
audio	ay1	AY-3-8910A PSG	1789772
audio	ay2	AY-3-8910A PSG	1789772

device_ref

tag	name
:maincpu	cdp1802
:nvram	nvram
:xpoint	clock
:4013a	7474
:4013b	7474
:4020	ripple_counter
:mechvol	speaker
:samples	samples
:audiocpu	cdp1802
:speaker	speaker
:ay1	ay8910
:ay2	ay8910

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		53		no

port, analog

port_tag	analog_masks
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7
:X8
:X9
