Laser 128ex2 (version 6.1) - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
las128e2	apple/apple2e.cpp		no	no	no	yes	Laser 128ex2 (version 6.1)	1988	Video Technology	apple2c	apple2c

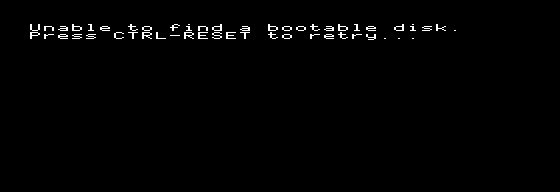

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
las128e2	1112	29/12/2025 11:31:26	560	192	96	96	0	Format24bppRgb	305:MAME 0.175 (Jun 29 2016)	9f38cf1ab0ced7d3052e7fef221cd8bf59e607fb

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	560	192	60.000000	14305200	910	0	560	262	0	192	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
laser 128 video rom vt27-0706-0.bin	8192	7884cc0f	693a0a66191465825b8f7b5e746b463f3000e9cc	gfx1	800	good	no
laser 128ex2 rom version 6.1.bin	32768	7f911c90	125754c1bd777d4c510f5239b96178c6f2e3236b	maincpu	0	good	no
342-0132-c.e12	2048	e47045f4	12a2e718f5f4acd69b6c33a45a4a940b1440a481	keyboard	0	baddump	no	342-0132-c.e12

chip

type	tag	name	clock
cpu	maincpu	WDC W65C02	1021800
audio	mono	Speaker
audio	speaker	Filtered DAC
audio	fdc:0:525:flopsndout	Speaker
audio	fdc:0:525:floppysound	Floppy sound	44100
audio	fdc:1:525:flopsndout	Speaker
audio	fdc:1:525:floppysound	Floppy sound	44100

softwarelist

tag	name	status	filter
flop_a2_clean	apple2_flop_clcracked	original
flop_a2_orig	apple2_flop_orig	compatible	A2C
flop_a2_misc	apple2_flop_misc	compatible

device_ref

tag	name
:maincpu	w65c02
:scantimer	timer
:acceltimer	timer
:a2video	a2video_comp
:a2common	apple2com
:screen	screen
:mono	speaker
:speaker	speaker_sound_device
:nsc	ds1216e
:ram	ram
:ay3600	ay3600
:repttmr	timer
:a2bus	a2bus
:flop_a2_clean	software_list
:flop_a2_orig	software_list
:flop_a2_misc	software_list
:gameio	a2gameio
:acia1	mos6551
:acia1:clock	clock
:acia2	mos6551
:acia2:clock	clock
:printer	rs232
:modem	rs232
:fdc	iwm
:fdc:0	floppy_connector
:fdc:0:525	floppy_525_sd
:fdc:0:525:flopsndout	speaker
:fdc:0:525:floppysound	flopsnd
:fdc:1	floppy_connector
:fdc:1:525	floppy_525_sd
:fdc:1:525:flopsndout	speaker
:fdc:1:525:floppysound	flopsnd
:sl1	a2laser128
:sl2	a2laser128
:sl3	a2laser128
:sl4	a2laser128
:sl5	a2laser128
:sl6	a2laser128
:sl7	a2laser128
:parallel	centronics
:parallel:printer	centronics_printer
:parallel:printer:printer	printer_image
:laserprnout	output_latch

sound

channels
3

ramoption

name	default
128K	yes
384K
640K
896K
1152K

device, instance

type	tag	interface	name	briefname
floppydisk	fdc:0:525	floppy_5_25	floppydisk1	flop1
floppydisk	fdc:1:525	floppy_5_25	floppydisk2	flop2
printout	parallel:printer:printer		printout	prin

device, extension

type	tag	interface	extension_names
floppydisk	fdc:0:525	floppy_5_25	mfi, dfi, dsk, do, po, edd, woz, nib
floppydisk	fdc:1:525	floppy_5_25	mfi, dfi, dsk, do, po, edd, woz, nib
printout	parallel:printer:printer		prn

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
mouse		1		no	0	255	40
keyboard		63		no

port, analog

port_tag	analog_masks
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7
:X8
:a2_config
:a2video:a2_video_config
:kbd_lang_select
:keyb_special
:mse_button
:mse_x	255
:mse_y	255

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
gameio	paddles	a2pdls	no
gameio	joy	a2joy	no
printer	terminal	serial_terminal	no
printer	sunkbd	sunkbd_adaptor	no
printer	votraxtnt	serial_votraxtnt	no
printer	rs_printer	rs_serial_printer	no
printer	dec_loopback	dec_rs232_loopback	no
printer	h19	serial_heath_h19	no
printer	ie15	ie15_terminal	no
printer	null_modem	null_modem	no
printer	keyboard	serial_keyboard	no
printer	patch	rs232_patch_box	no
printer	swtpc8212	swtpc8212_terminal	no
printer	printer	serial_printer	no
printer	scorpion	scorpion_ic	no
printer	loopback	rs232_loopback	no
printer	mockingboard	mockingboardd	no
printer	msystems_mouse	rs232_mouse_hle_msystems	no
printer	nss_tvi	nss_tvinterface	no
printer	rs232_sync_io	rs232_sync_io	no
printer	pty	pseudo_terminal	no
modem	terminal	serial_terminal	no
modem	sunkbd	sunkbd_adaptor	no
modem	votraxtnt	serial_votraxtnt	no
modem	rs_printer	rs_serial_printer	no
modem	dec_loopback	dec_rs232_loopback	no
modem	h19	serial_heath_h19	no
modem	ie15	ie15_terminal	no
modem	null_modem	null_modem	no
modem	keyboard	serial_keyboard	no
modem	patch	rs232_patch_box	no
modem	swtpc8212	swtpc8212_terminal	no
modem	printer	serial_printer	no
modem	scorpion	scorpion_ic	no
modem	loopback	rs232_loopback	no
modem	mockingboard	mockingboardd	no
modem	msystems_mouse	rs232_mouse_hle_msystems	no
modem	nss_tvi	nss_tvinterface	no
modem	rs232_sync_io	rs232_sync_io	no
modem	pty	pseudo_terminal	no
fdc:0	525	floppy_525_sd	yes
fdc:1	525	floppy_525_sd	yes
parallel	nlq401	nlq401	no
parallel	smartboard	centronics_smartboard	no
parallel	chessmec	centronics_chessmec	no
parallel	samdac	centronics_samdac	no
parallel	covox_stereo	covox_stereo	no
parallel	adaptator	adaptator_multitap	no
parallel	digiblst	cpcdigiblst	no
parallel	lx800	lx800	no
parallel	jx80	epson_jx80	no
parallel	ap2000	ap2000	no
parallel	ex800	ex800	no
parallel	fx80	epson_fx80	no
parallel	rx80	epson_rx80	no
parallel	mz1p16	mz1p16	no
parallel	covox	covox	no
parallel	pl80	comx_pl80	no
parallel	lx810l	lx810l	no
parallel	p72	p72	no
parallel	printer	centronics_printer	yes

configuration

Printer type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Printer type	a2_config	8

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Serial	0	yes
Parallel	8	no

40/80 Columns

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
40/80 Columns	a2_config	64

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
80 columns	0	no
40 columns	64	yes

Monitor type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Monitor type	a2video:a2_video_config	7

setting

name	value	default
Color	0	yes
B&W	4	no
Green	5	no
Amber	6	no
B&W for NTSC shader	7	no

Color algorithm

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Color algorithm	a2video:a2_video_config	112

setting

name	value	default
Pixel-run (B&W bias)	0	yes
Pixel-run (color bias)	16	no
Box filter	32	no

Lores artifacts

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lores artifacts	a2video:a2_video_config	128

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

Text color

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Text color	a2video:a2_video_config	768

setting

name	value	default
Off	0	yes
40-column only	256	no
On	768	no

Keyboard

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Keyboard	kbd_lang_select	255

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
QWERTY	0	yes
DVORAK	16	no
