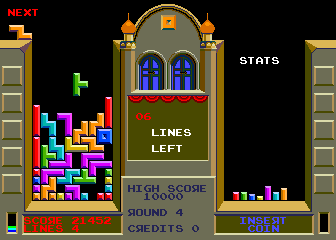

Link (Korean bootleg of Atari Tetris) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
link	atari/atetris.cpp		no	no	no	yes	Link (Korean bootleg of Atari Tetris)	1988	bootleg	atetris	atetris

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	336	240	59.922743	7159090	456	0	336	262	0	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
prg.bin	65536	2bcab107	3cfb8df8cd3782f3ff7f6b32ff15c461352061ee	maincpu	0	good	no
a2.bin	65536	f811a82e	a9e61c27ada4bdedc35d339bb88debb9ff1a4a7e	tiles	0	good	no
8749h.bin	2048	a66a9c47	fbebd755a5e826c7d94ebcafdff2f9a01c9fd1a5	mcu	0	good	no
82s123.bin	32			proms	0	nodump	no
gal18v8a-25lp.1	279			plds	0	nodump	no
gal18v8a-25lp.2	279			plds	200	nodump	no
palce18v8h-25pc.3	279			plds	400	nodump	no
palce18v8h-25pc.4	279			plds	600	nodump	no
pal16r4b-2cn.5	260			plds	800	nodump	no
pal16r4b-2cn.6	260			plds	a00	nodump	no

chip

type	tag	name	clock
cpu	maincpu	MOS Technology 6502	1789772
cpu	mcu	Intel 8749	11000000
audio	mono	Speaker
audio	sn1	SN76489A	4000000
audio	sn2	SN76489A	4000000
audio	sn3	SN76489A	4000000
audio	sn4	SN76489A	4000000

device_ref

name
m6502
watchdog
gfxdecode
palette
screen
speaker
2804
slapstic
i8749
generic_latch_8
generic_latch_8
sn76489a
sn76489a
sn76489a
sn76489a

sound

channels
1

input

players	coins	service	tilt
2	2	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	1	3 (half4)	no
joy	2	1	3 (half4)	no

port, analog

port_tag	analog_masks
:IN0
:IN1

dipswitch

Freeze

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Freeze	IN0	4

location

name	number	inverted
50H	4	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Freeze Step

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Freeze Step	IN0	8

location

name	number	inverted
50H	3	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	IN0	16

location

name	number	inverted
50H	2	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	IN0	32

location

name	number	inverted
50H	1	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	IN0	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no
