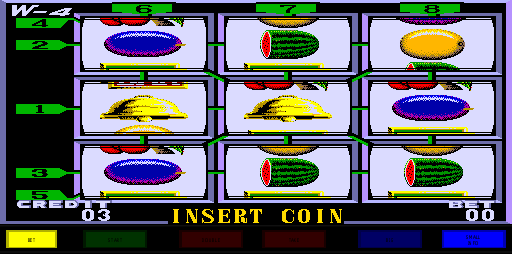

Tetris + New Lucky 8 Lines (W-4 + W4BET-VID sub board with MCU) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
lucky8tet	igs/goldstar.cpp		no	no	no	yes	Tetris + New Lucky 8 Lines (W-4 + W4BET-VID sub board with MCU)	1988	bootleg	lucky8	lucky8

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	224	60.000000	7864320	512	0	512	256	16	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
w4-tet-p097-9_sub-pcb.u7	65536	779db23e	8a629d0e0bd57268e3b2a89bf1e5ed0d664f13c8	maincpu	0	good	no
mcu.bin	1354	bc70cd9d	2edd27b0bb2e846778aacaadd843186097a049a1	tmcu	0	good	no
w45.bin	32768	9af48a18	ca2cc5cb184ee7c849c68bdbb61d1f78d3af6f63	gfx1	0	good	no
w46.bin	32768	63d851ec	feaceada081f32d4161f1e04b10f32584ddf0f3d	gfx1	8000	good	no
w47.bin	32768	f285300a	875c19cc50fc870ddd50f731d9bee8b11d15a8d3	gfx1	10000	good	no
1	8192	29d6f197	1542ca457594f6b7fe8f28f7d78023edd7021bc8	gfx2	0	good	no	1
2	8192	5f812e65	70d9ea82f9337936bf21f82b6961768d436f3a6f	gfx2	2000	good	no	2
3	8192	898b9ed5	11b7d1cfcf425d00d086c74e0dbcb72068dda9fe	gfx2	4000	good	no	3
4	8192	4f7cfb35	0617cf4419be00d9bacc78724089cb8af4104d68	gfx2	6000	good	no	4
d12	256	23e81049	78071dae70fad870e972d944642fb3a2374be5e4	proms	0	good	no	d12
prom4	256	526cf9d3	eb779d70f2507d0f26d225ac8f5de8f2243599ca	proms	100	good	no	prom4
d13	32	c6b41352	d7c3b5aa32e4e456c9432a13bede1db6d62eb270	proms2	0	good	no	d13
g14	256	bd48de71	e4fa1e774af1499bc568be5b2deabb859d8c8172	unkprom	0	good	no	g14
g13	32	6df3f972	0096a7f7452b70cac6c0752cb62e24b643015b5c	unkprom2	0	good	no	g13

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3000000
cpu	tmcu	Intel 80C51	24500000
audio	mono	Speaker
audio	snsnd	SN76489	3000000
audio	aysnd	YM2149 SSG	1500000

device_ref

name
z80
i8255
i8255
i8255
screen
gfxdecode
palette
nvram
speaker
sn76489
ym2149
ticket_dispenser
i80c51

sound

channels
1

feature

type	status	overall
protection	imperfect

input

players	coins	service	tilt
1	4	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
gambling		16		no

port, analog

port_tag	analog_masks
:DB_DIP
:DSW1
:DSW2
:DSW3
:DSW4
:IN0
:IN1
:IN2
:IN3
:IN4

dipswitch

Max Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Max Bet	DB_DIP	3

location

name	number	inverted
DB_DIP	1	no
DB_DIP	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
8	0	no
16	1	no
32	2	no
64	3	yes

DIP2 (TBD)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIP2 (TBD)	DB_DIP	12

location

name	number	inverted
DB_DIP	3	no
DB_DIP	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
0	0	no
1	4	no
2	8	no
3	12	yes

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW1	1

location

name	number	inverted
DSW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Hopper Coin Switch

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Coin Switch	DSW1	2

location

name	number	inverted
DSW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Active Low	2	yes
Active High	0	no

Payout Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Payout Mode	DSW1	4

location

name	number	inverted
DSW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Payout Switch	4	yes
Automatic	0	no

'7' In Double Up Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
'7' In Double Up Game	DSW1	8

location

name	number	inverted
DSW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Lose	8	no
Even	0	yes

Double Up Game Pay Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game Pay Rate	DSW1	16

location

name	number	inverted
DSW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
80%	16	yes
90%	0	no

Double Up Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game	DSW1	32

location

name	number	inverted
DSW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	32	yes

Special Odds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Special Odds	DSW1	192

location

name	number	inverted
DSW1	7	no
DSW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
None	192	no
Limited to X 300 (X 1000)	128	no
Limited to X 500 (X 5000)	64	no
Limited to X 1000 (X 10000)	0	yes

Main Game Pay Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Main Game Pay Rate	DSW2	7

location

name	number	inverted
DSW2	1	no
DSW2	2	no
DSW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
80%	7	yes
83%	6	no
86%	5	no
89%	4	no
92%	3	no
95%	2	no
98%	1	no
101%	0	no

Hopper Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Limit	DSW2	24

location

name	number	inverted
DSW2	4	no
DSW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
300	24	no
500	16	no
1000	8	no
Unlimited	0	yes

Over 100 Bet Sound

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Over 100 Bet Sound	DSW2	32

location

name	number	inverted
DSW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Paytable Settings

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Paytable Settings	DSW2	64

location

name	number	inverted
DSW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Low Pay	64	yes
High Pay	0	no

Double Up Game Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game Type	DSW2	128

location

name	number	inverted
DSW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Reels (automatic)	128	yes
Cards (Big/Small)	0	no

Coin D Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin D Rate	DSW3	15

location

name	number	inverted
DSW4	1	no
DSW4	2	no
DSW4	3	no
DSW4	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
10 Coins/1 Credit	15	no
5 Coins/1 Credit	1	no
5 Coins/2 Credits	2	no
4 Coins/1 Credit	3	no
3 Coins/1 Credit	4	no
2 Coins/1 Credit	5	no
2 Coins/3 Credits	6	no
1 Coin/1 Credit	7	yes
1 Coin/2 Credits	8	no
1 Coin/3 Credits	9	no
1 Coin/5 Credits	10	no
1 Coin/10 Credits	11	no

Coin C Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin C Rate	DSW3	112

location

name	number	inverted
DSW4	5	no
DSW4	6	no
DSW4	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
10 Coins/1 Credit	112	no
9 Coins/1 Credit	16	no
6 Coins/1 Credit	32	no
5 Coins/1 Credit	48	no
3 Coins/1 Credit	64	no
2 Coins/1 Credit	80	no
1 Coin/1 Credit	96	yes

4th Coin

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
4th Coin	DSW3	128

location

name	number	inverted
DSW4	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
As Coin A	128	yes
As Hopper Line	0	no

Key In Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key In Rate	DSW4	7

location

name	number	inverted
DSW3	1	no
DSW3	2	no
DSW3	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/5 Credits	0	no
1 Coin/10 Credits	1	no
1 Coin/20 Credits	2	no
1 Coin/25 Credits	3	no
1 Coin/40 Credits	4	no
1 Coin/50 Credits	5	no
1 Coin/60 Credits	6	no
1 Coin/100 Credits	7	yes

Coin A Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A Rate	DSW4	56

location

name	number	inverted
DSW3	4	no
DSW3	5	no
DSW3	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	56	yes
1 Coin/2 Credits	8	no
1 Coin/4 Credits	16	no
1 Coin/5 Credits	24	no
1 Coin/6 Credits	32	no
1 Coin/10 Credits	40	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW4	64

location

name	number	inverted
DSW3	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW4	128

location

name	number	inverted
DSW3	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
