Mephisto Lyon 16 Bit (v2.07) - mame (0288) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
lyon16a	hegenerglaser/modular.cpp		no	no	no	yes	Mephisto Lyon 16 Bit (v2.07)	1990	Hegener + Glaser	lyon32	lyon32

snap

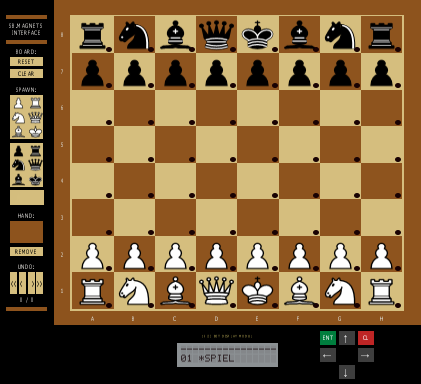

Mephisto Lyon 16 Bit (v2.07) png snap

Mephisto Lyon 16 Bit (v2.07) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
lyon16a	29357	24/03/2026 16:57:01	421	384	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	1eeaba5364f011a9ce234bf9c2bad6c0e3995d33

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
display:screen	lcd	0	97	19	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
lyon_16bit_even_v_207	65536	497bd41a	3ffefeeac694f49997c10d248ec6a7aa932898a4	maincpu	0	good	no
lyon_16bit_odd_v_207	65536	f9de3f54	4060e29566d2f40122ccde3c1f84c94a9c1ed54f	maincpu	1	good	no
sinus_15_bavaria	32768	84421306	5aab13bf38d80a4233c11f6eb5657f2749c14547	bavaria	0	good	no	sinus_15_bavaria

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	12288000
audio	display:speaker	Speaker
audio	display:dac	2-Bit Ones Complement DAC

device_ref

tag	name
:maincpu	m68000
:nvram	nvram
:board	msboard
:board:board	sensorboard
:board:led_pwm	pwm_display
:bav_busy	timer
:display	mdisplay2
:display:screen	screen
:display:palette	palette
:display:hd44780	hd44780
:display:speaker	speaker
:display:dac	dac_2bit_oc

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		6		no

port, analog

port_tag	analog_masks
:FAKE
:KEY1
:KEY2
:KEY3
:board:board:BS_CHECK
:board:board:CONF
:board:board:RANK.1
:board:board:RANK.10
:board:board:RANK.11
:board:board:RANK.12
:board:board:RANK.13
:board:board:RANK.2
:board:board:RANK.3
:board:board:RANK.4
:board:board:RANK.5
:board:board:RANK.6
:board:board:RANK.7
:board:board:RANK.8
:board:board:RANK.9
:board:board:SPAWN
:board:board:SS_CHECK
:board:board:UI
:board:board:UI_CHECK

configuration

Board Sensors

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Board Sensors	FAKE	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Magnets (Exclusive)	0	yes
Induction (Bavaria)	1	no

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
