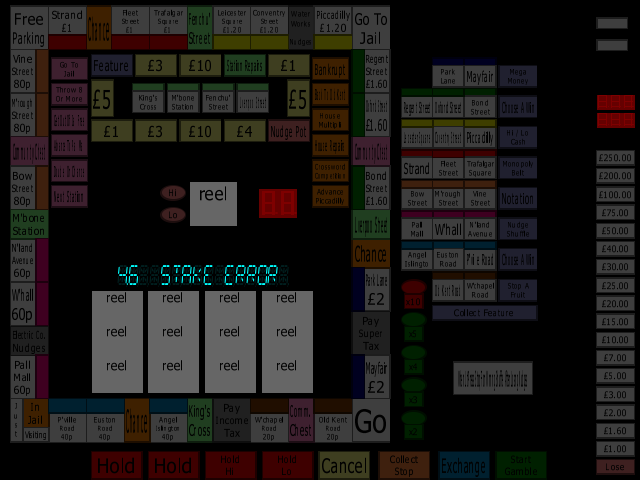

Monopoly Club (Maygay) (M1A/B) (set 1)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
m1monclb	maygay/maygay1bsw.cpp		no	no	yes	yes	Monopoly Club (Maygay) (M1A/B) (set 1)	199?	Maygay

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
mon.bin	131072	9941e3ee	2abae2333e35e55510eb73da03c8b385960a5d26	maincpu	0	good	no
monsnd1.bin	524288	f7303657	a66c1110b38d36ebbd0ec3a2d3a08d9164b9d4a0	msm6376	0	good	no
monsnd2.bin	524288	3881a59a	e7f13152ff4c8e502bd97ea8ab90416126de73f3	msm6376	80000	good	no
m1a-mcu.bin	4096	ae957b00	83267b64335b4ab33cc033d5003c4c93c813fc37	mcu	0	good	no
gal16v8a.m1a.a.u32	279	5da2b5ab	7af5ee675e280905fa41aee23b06394a59c8758d	gals	0	good	no
gal16v8.digi.a.u5	279	137c8d65	c86d8ae7e0c99c4f179810dd12e7f412f167093e	gals	0	good	no
gal16v8.digi.b.u5	279	98dc995a	13056e0b2a979a92279b668ce570b80bb75654f9	gals	0	good	no
gal16v8.esp.b.u9	279	d0ea9b54	b7611fb4004431a21f81be10934392bea8dc00a0	gals	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809	4000000
cpu	mcu	Intel 80C51	2000000
audio	speaker	Speaker
audio	aysnd	YM2149 SSG	8000000
audio	ymsnd	YM2413 OPLL	2000000
audio	msm6376	OKI MSM6376 ADPCM	102400

device_ref

tag	name
:maincpu	mc6809
:mcu	i80c51
:duart68681	mc68681
:duart68681:cha	duart_channel
:duart68681:chb	duart_channel
:pia	pia6821
:mainlatch	hc259
:vfd	s16lf01
:speaker	speaker
:aysnd	ym2149
:ymsnd	ym2413
:msm6376	okim6376
:nmitimer	timer
:i8279	i8279
:i8279_2	i8279
:reel0	stepper
:reel1	stepper
:reel2	stepper
:reel3	stepper
:reel4	stepper
:reel5	stepper
:meters	meters
:nvram	nvram

sound

channels
1

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1		yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
only_buttons		6		no

port, analog

port_tag	analog_masks
:STROBE2
:STROBE3
:STROBE4
:STROBE5
:STROBE6
:STROBE7
:SW1
:SW2

dipswitch

SW101

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW101	SW1	1

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

SW102

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW102	SW1	2

location

name	number	inverted
SW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

SW103

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW103	SW1	4

location

name	number	inverted
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

SW104

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW104	SW1	8

location

name	number	inverted
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

SW105

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW105	SW1	16

location

name	number	inverted
SW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

SW106

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW106	SW1	32

location

name	number	inverted
SW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

SW107

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW107	SW1	64

location

name	number	inverted
SW1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

AntiFraud Protection

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
AntiFraud Protection	SW1	128

location

name	number	inverted
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	no
On	0	yes

SW201

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW201	SW2	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

SW202

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW202	SW2	2

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

SW203

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW203	SW2	4

location

name	number	inverted
SW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

SW204

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW204	SW2	8

location

name	number	inverted
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

SW205

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW205	SW2	16

location

name	number	inverted
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

SW206

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW206	SW2	32

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

SW207

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW207	SW2	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

SW208

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW208	SW2	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

clones

name	description
m1monclbi	Monopoly Club (Maygay) (M1A/B) (set 10)
m1monclbj	Monopoly Club (Maygay) (M1A/B) (set 11)
m1monclbk	Monopoly Club (Maygay) (M1A/B) (set 12)
m1monclbl	Monopoly Club (Maygay) (M1A/B) (set 13)
m1monclbm	Monopoly Club (Maygay) (M1A/B) (set 14)
m1monclba	Monopoly Club (Maygay) (M1A/B) (set 2)
m1monclbb	Monopoly Club (Maygay) (M1A/B) (set 3)
m1monclbc	Monopoly Club (Maygay) (M1A/B) (set 4)
m1monclbd	Monopoly Club (Maygay) (M1A/B) (set 5)
m1monclbe	Monopoly Club (Maygay) (M1A/B) (set 6)
m1monclbf	Monopoly Club (Maygay) (M1A/B) (set 7)
m1monclbg	Monopoly Club (Maygay) (M1A/B) (set 8)
m1monclbh	Monopoly Club (Maygay) (M1A/B) (set 9)
