mame (0289) • machine magicrd2b • Magic Card II (green TAB or Impera board)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
magicrd2b	funworld/funworld.cpp		no	no	no	yes	Magic Card II (green TAB or Impera board)	1996	Impera	magicrd2	magicrd2

snap

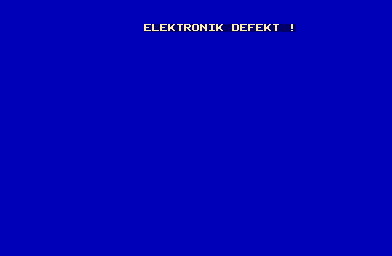

Magic Card II (green TAB or Impera board) png snap

Magic Card II (green TAB or Impera board) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
magicrd2b	992	29/12/2025 11:31:34	392	256	96	96	0	Format24bppRgb	305:MAME 0.128u5 (Dec 10 2008)	b259a9cedaefde19ba62a8f83dee24c5c77ec8c7

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	384	232	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
gal16v8uni.bin	279	b81d7e0a	7fef0b2bcea931a830d38ae0f1102434cf281d2d	plds	0	good	no	gal16v8uni.bin
mc2_v1-v2_nvram.bin	2048	f88c493d	8a5352b46ab68164cd7adaaad6f15f04327b7451	nvram	0	baddump	no
mc2-82s147.bin	512	aa91cc35	79f9a755441500e618c4183f524f969fffd44100	proms	0	good	no	mc2-82s147.bin
mc2gr1.bin	32768	2406b8d2	e9d7a25562fd5adee351d7ef6ba02fff6aab021a	gfx1	8000	good	no	mc2gr1.bin
mc2gr2.bin	32768	733da697	45122c64d5a371ec91cecc67b7faf179078e714d	gfx1	0	good	no	mc2gr2.bin
mc2prgv1.bin	32768	7f759b70	23a1a6e8eda57c4a90c51a970302f9a7bf590083	maincpu	8000	good	no

chip

type	tag	name	clock
cpu	maincpu	Rockwell R65C02	2000000
audio	mono	Speaker
audio	ay8910	AY-3-8910A PSG	2000000

device_ref

tag	name
:maincpu	r65c02
:nvram	nvram
:pia0	pia6821
:pia1	pia6821
:screen	screen
:gfxdecode	gfxdecode
:palette	palette
:crtc	mc6845
:mono	speaker
:ay8910	ay8910

sound

channels
1

input

players	coins	service	tilt
1	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
gambling		8		no

port, analog

port_tag	analog_masks
:DSW
:IN0
:IN1
:IN2

dipswitch

State

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
State	DSW	1

location

name	number	inverted
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Keyboard Test	0	no
Play	1	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	2

location

name	number	inverted
SW1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW	4

location

name	number	inverted
SW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5 Points/Coin	0	yes
10 Points/Coin	4	no

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW	8

location

name	number	inverted
SW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5 Points/Coin	0	yes
10 Points/Coin	8	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	16

location

name	number	inverted
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

Joker

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Joker	DSW	32

location

name	number	inverted
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
With Joker	0	yes
Without Joker	32	no

Hold

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hold	DSW	64

location

name	number	inverted
SW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Auto Hold	0	yes
No Auto Hold	64	no

Payout

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Payout	DSW	128

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Hopper	0	yes
Manual Payout SW	128	no
