mame (0289) • machine magicrdja • Magic Card III Jackpot (V4.01 7/98)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
magicrdja	misc/magicard.cpp		no	no	no	yes	Magic Card III Jackpot (V4.01 7/98)	1998	Impera	magicrdj	magicrdj

snap

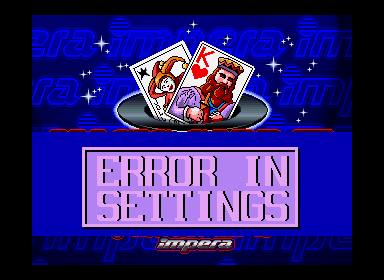

Magic Card III Jackpot (V4.01 7/98) png snap

Magic Card III Jackpot (V4.01 7/98) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
magicrdja	17947	29/12/2025 11:31:34	384	280	96	96	0	Format24bppRgb	305:MAME 0.247.0 (Aug 31 2022)	181b4315352c4fc2a64a36a618271100d53e5f8d

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	768	280	50.080128	15000000	960	0	768	312	32	312	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
24c02c.ic26	256	b5c86862	0debc0f7e7c506e5a4e2cae152548d80ad72fc2e	sereeprom	0	good	no
27c4002.ic21	524288	ab2ed583	a2d7148b785a8dfce8cff3b15ada293d65561c98	maincpu	0	good	no
29f1610mc.ic30	2097152			other	0	nodump	no
magicardj_4.01_pic16f84_code.bin	2048	c6502436	85c4126251bd60ec1f4e28615ec7f948ef8c088f	pic16f84	0	good	no
magicardj_4.01_pic16f84_data.bin	128	40961fef	8617ef78d50842ea89d81d4db3728b3f799d7530	pic16f84	4200	good	no

chip

type	tag	name	clock
cpu	maincpu	Philips SCC68070	19660800
audio	mono	Speaker
audio	ssg	YMZ284 SSGL	4000000

device_ref

tag	name
:maincpu	scc68070
:screen	screen
:scc66470	scc66470
:palette	palette
:ramdac	ramdac
:mono	speaker
:nvram	nvram
:ssg	ymz284
:rtc	rtc72421
:serial_id	ds2401
:ds1207	ds1207
:sereeprom	24c02

sound

channels
1

input

players	coins	service	tilt
1	4	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
gambling		12		no

port, analog

port_tag	analog_masks
:IN0
:IN1

dipswitch

Keyboard Test

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Keyboard Test	IN1	1

location

name	number	inverted
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Remote/Keyboard

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remote/Keyboard	IN1	2

location

name	number	inverted
SW1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Remote Switch	2	yes
Keyboard	0	no

Swap Coin Inputs

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Swap Coin Inputs	IN1	4

location

name	number	inverted
SW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	yes
Yes	0	no

Setting

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Setting	IN1	56

location

name	number	inverted
SW1	5	no
SW1	4	no
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Austria 1	56	yes
Austria 2	48	no
CSFR 1	24	no
CSFR 2	16	no
Germany 1	40	no
Germany 2	32	no
Hungary 1	8	no
Hungary 2	0	no

Hopper

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper	IN1	64

location

name	number	inverted
SW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Coin B	64	yes
Coin A	0	no

Hopper

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper	IN1	128

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
