mame (0289) • machine master • Master (Chess King)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
master	chessking/master.cpp		no	no	no	yes	Master (Chess King)	1983	Chess King / Intelligent Software

snap

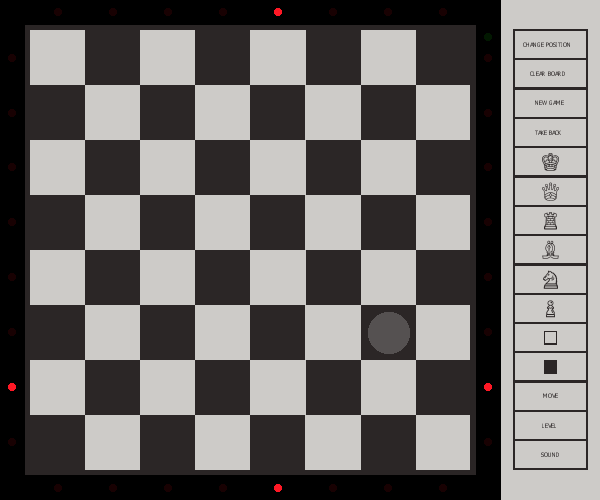

Master (Chess King) png snap

Master (Chess King) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
master	15737	29/12/2025 11:31:34	600	500	96	96	0	Format24bppRgb	305:MAME 0.193 (Dec 27 2017)	6ca3324b0bd9e92527a47adae916f94b9a0e3892

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
d2764c-3.ic2	8192	59cbec9e	2e0629e65778da62bed857406b91a334698d2fe8	maincpu	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	4000000
audio	speaker	Speaker
audio	dac	2-Bit Ones Complement DAC

device_ref

tag	name
:maincpu	z80
:mainmap	address_map_bank
:irq_clock	clock
:board	sensorboard
:display	pwm_display
:speaker	speaker
:dac	dac_2bit_oc

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		15		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:board:BS_CHECK
:board:CONF
:board:RANK.1
:board:RANK.10
:board:RANK.11
:board:RANK.12
:board:RANK.13
:board:RANK.2
:board:RANK.3
:board:RANK.4
:board:RANK.5
:board:RANK.6
:board:RANK.7
:board:RANK.8
:board:RANK.9
:board:SPAWN
:board:SS_CHECK
:board:UI
:board:UI_CHECK

configuration

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
