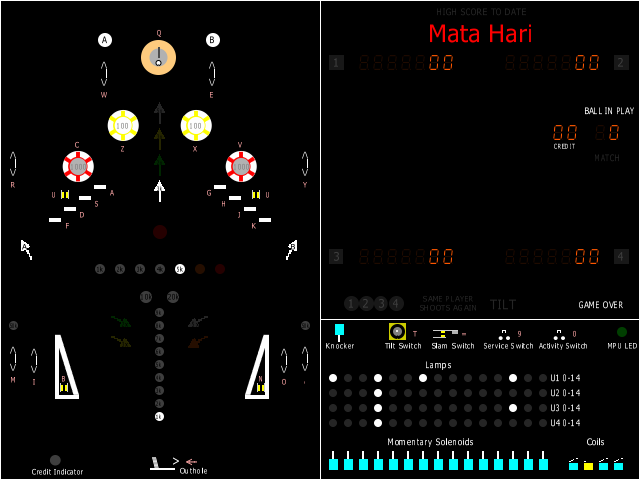

Mata Hari - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
matahari	pinball/by17.cpp	genpin	no	no	yes	yes	Mata Hari	1978	Bally

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
725-21_2.716	2048	63acd9b0	2347342f1281c097ea39c79236d85b00a1dfc7b2	roms	0	good	no
720-20_6.716	2048	0c17aa4d	729e61a29691857112579efcdb96a35e8e5b1279	roms	800	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6800	530000
audio	mechvol	Speaker
audio	samples	Samples

device_ref

name
m6800
nvram
speaker
samples
pia6821
timer
timer
pia6821
timer
timer

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
1

input

players	coins	service	tilt
1	3	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keypad		24		no

port, analog

port_tag	analog_masks
:DSW0
:DSW1
:DSW2
:DSW3
:TEST
:X0
:X1
:X2
:X3
:X4

dipswitch

Coin Slot 1

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Slot 1	DSW0	31

location

name	number	inverted
SW0	1	yes
SW0	2	yes
SW0	3	yes
SW0	4	yes
SW0	5	yes

value

name	value	default
2 Coins/3 Credits	0	no
1 Coin/1 Credit	2	yes
2 Coins/1 Credit	3	no
1 Coin/2 Credits	4	no
2 Coins/2 Credits	5	no
1 Coin/3 Credits	6	no
2 Coins/3 Credits	7	no
1 Coin/4 Credits	8	no
2 Coins/4 Credits	9	no
1 Coin/5 Credits	10	no
2 Coins/5 Credits	11	no
1 Coin/6 Credits	12	no
2 Coins/6 Credits	13	no
1 Coin/7 Credits	14	no
2 Coins/7 Credits	15	no
1 Coin/8 Credits	16	no
2 Coins/8 Credits	17	no
1 Coin/9 Credits	18	no
2 Coins/9 Credits	19	no
1 Coin/10 Credits	20	no
2 Coins/10 Credits	21	no
1 Coin/11 Credits	22	no
2 Coins/11 Credits	23	no
1 Coin/12 Credits	24	no
2 Coins/12 Credits	25	no
1 Coin/13 Credits	26	no
2 Coins/13 Credits	27	no
1 Coin/14 Credits	28	no
2 Coins/14 Credits	29	no
1 Coin/15 Credits	30	no
2 Coins/15 Credits	31	no

Award for Beating Highest Score

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Award for Beating Highest Score	DSW0	96

location

name	number	inverted
SW0	6	yes
SW0	7	yes

value

name	value	default
Nothing	0	no
1 Credit	32	no
2 Credits	64	no
3 Credits	96	yes

Play Melodies

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Play Melodies	DSW0	128

location

name	number	inverted
SW0	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	128	yes

Coin Slot 3

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Slot 3	DSW1	31

location

name	number	inverted
SW1	1	yes
SW1	2	yes
SW1	3	yes
SW1	4	yes
SW1	5	yes

value

name	value	default
2 Coins/3 Credits	0	no
1 Coin/1 Credit	2	yes
2 Coins/1 Credit	3	no
1 Coin/2 Credits	4	no
2 Coins/2 Credits	5	no
1 Coin/3 Credits	6	no
2 Coins/3 Credits	7	no
1 Coin/4 Credits	8	no
2 Coins/4 Credits	9	no
1 Coin/5 Credits	10	no
2 Coins/5 Credits	11	no
1 Coin/6 Credits	12	no
2 Coins/6 Credits	13	no
1 Coin/7 Credits	14	no
2 Coins/7 Credits	15	no
1 Coin/8 Credits	16	no
2 Coins/8 Credits	17	no
1 Coin/9 Credits	18	no
2 Coins/9 Credits	19	no
1 Coin/10 Credits	20	no
2 Coins/10 Credits	21	no
1 Coin/11 Credits	22	no
2 Coins/11 Credits	23	no
1 Coin/12 Credits	24	no
2 Coins/12 Credits	25	no
1 Coin/13 Credits	26	no
2 Coins/13 Credits	27	no
1 Coin/14 Credits	28	no
2 Coins/14 Credits	29	no
1 Coin/15 Credits	30	no
2 Coins/15 Credits	31	no

S14

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S14	DSW1	32

location

name	number	inverted
SW1	6	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

S15

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S15	DSW1	64

location

name	number	inverted
SW1	7	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Balls per Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Balls per Game	DSW1	128

location

name	number	inverted
SW1	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3	0	no
5	128	yes

Maximum Credits

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Maximum Credits	DSW2	7

location

name	number	inverted
SW2	1	yes
SW2	2	yes
SW2	3	yes

value

name	value	default
5	0	no
10	1	yes
15	2	no
20	3	no
25	4	no
30	5	no
35	6	no
40	7	no

Credits Displayed

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credits Displayed	DSW2	8

location

name	number	inverted
SW2	4	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	8	yes

Match

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Match	DSW2	16

location

name	number	inverted
SW2	5	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	16	yes

S22

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S22	DSW2	32

location

name	number	inverted
SW2	6	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

Saucer Award Feature

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Saucer Award Feature	DSW2	64

location

name	number	inverted
SW2	7	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Start at 3000 Points	0	yes
Start at 2X Bonus	64	no

A & B Special Award Feature Per Ball

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
A & B Special Award Feature Per Ball	DSW2	128

location

name	number	inverted
SW2	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Award Special Once	0	yes
Award Special Alternates	128	no

Coin Slot 2

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Slot 2	DSW3	15

location

name	number	inverted
SW3	1	yes
SW3	2	yes
SW3	3	yes
SW3	4	yes

value

name	value	default
Same as Slot 1	0	yes
1 Coin/1 Credit	1	no
1 Coin/2 Credits	2	no
1 Coin/3 Credits	3	no
1 Coin/4 Credits	4	no
1 Coin/5 Credits	5	no
1 Coin/6 Credits	6	no
1 Coin/7 Credits	7	no
1 Coin/8 Credits	8	no
1 Coin/9 Credits	9	no
1 Coin/10 Credits	10	no
1 Coin/11 Credits	11	no
1 Coin/12 Credits	12	no
1 Coin/13 Credits	13	no
1 Coin/14 Credits	14	no
1 Coin/15 Credits	15	no

S29

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S29	DSW3	16

location

name	number	inverted
SW3	5	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

Extra Ball / Specials Award Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Extra Ball / Specials Award Mode	DSW3	96

location

name	number	inverted
SW3	6	yes
SW3	7	yes

value

name	value	default
Novelty / 50,000	0	no
Extra Ball / 50,000	64	no
Extra Ball / Replay	96	yes

Score Level Award

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Score Level Award	DSW3	128

location

name	number	inverted
SW3	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Extra Ball	0	no
Replay	128	yes
