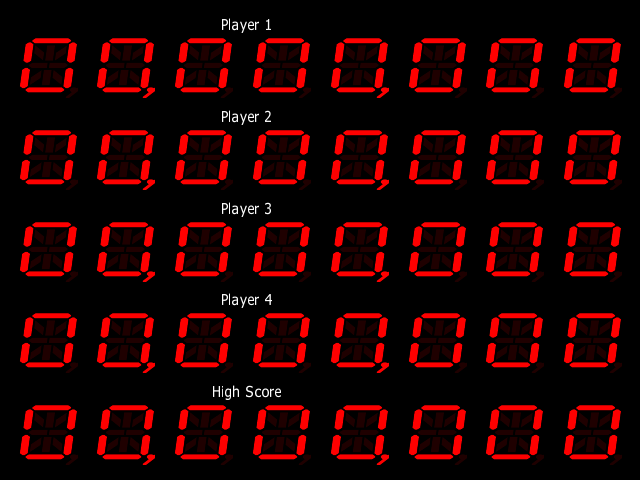

Magic Castle - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mcastle	pinball/zac_2.cpp	genpin	no	no	yes	yes	Magic Castle	1984	Zaccaria

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
cpu.ic1	4096	50dd8209	c1df8ea16d8a8ae1d6f524fa25c94c4664f314c1	maincpu	0	good	no
cpu.ic2	8192	11372bec	bd822c0ee455941630cdade83335c84224d351e4	maincpu	800	good	no
gb01snd1.1d	8192	cd6a4a07	47359747f79feca9d85d8f7657325874eda0f915	cpu2	e000	good	no
gb01snd2.1e	8192	d289952d	94052cbee4cd499fb55d59b047828c21d71ab288	cpu2	c000	good	no
gb01snd3.1g	8192	8b4342eb	a8534cb2ebaff4d5d4101eb710c068f3b91e9e0c	cpu2	a000	good	no

chip

type	tag	name	clock
cpu	maincpu	Signetics 2650	3000000
audio	mechvol	Speaker
audio	samples	Samples

device_ref

name
s2650
nvram
timer
timer
speaker
samples

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
1

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keypad		54		no

port, analog

port_tag	analog_masks
:DSW
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7

dipswitch

Switch A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Switch A	DSW	1

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Switch B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Switch B	DSW	2

location

name	number	inverted
SW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Switch C

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Switch C	DSW	4

location

name	number	inverted
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Switch D

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Switch D	DSW	8

location

name	number	inverted
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no
