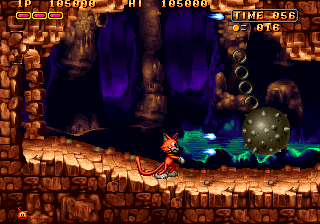

Magical Cat Adventure (Japan) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mcatadvj	misc/mcatadv.cpp		no	no	no	yes	Magical Cat Adventure (Japan)	1993	Wintechno	mcatadv	mcatadv

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	224	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no	preliminary

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
u30.bin	524288	05762f42	3675fb606bf9d7be9462324e68263f4a6c2fea1c	maincpu	0	good	no
u29.bin	524288	4c59d648	2ab77ea254f2c11fc016078cedcab2fffbe5ee1b	maincpu	1	good	no
u9.bin	131072	fda05171	2c69292573ec35034572fa824c0cae2839d23919	soundcpu	0	good	no	u9.bin
mca-u82.bin	1048576	5f01d746	11b241456e15299912ee365eedb8f9d5e5ca875d	sprdata	0	good	no	mca-u82.bin
mca-u83.bin	1048576	4e1be5a6	cb19aad42dba54d6a4a33859f27254c2a3271e8c	sprdata	1	good	no	mca-u83.bin
mca-u84.bin	524288	df202790	f6ae54e799af195860ed0ab3c85138cf2f10efa6	sprdata	200000	good	no	mca-u84.bin
mca-u85.bin	524288	a85771d2	a1817cd72f5bf0a4f24a37c782dc63ecec3b8e68	sprdata	200001	good	no	mca-u85.bin
u86.bin	524288	2d3725ed	8b4c0f280eb901113d842848ffc26371be7b6067	sprdata	400000	good	no
u87.bin	524288	4ddefe08	5ade0a694d73f4f3891c1ab7757e37a88afcbf54	sprdata	400001	good	no
mca-u58.bin	524288	3a8186e2	129c220d72608a8839f779ce1a6cfec8646dbf23	bg0	0	good	no	mca-u58.bin
mca-u60.bin	1048576	c8942614	244fccb9abbb04e33839dd2cd0e2de430819a18c	bg1	0	good	no	mca-u60.bin
mca-u61.bin	1048576	51af66c9	1055cf78ea286f02003b0d1bf08c2d7829b36f90	bg1	100000	good	no	mca-u61.bin
u100.bin	524288	e2c311da	cc3217484524de94704869eaa9ce1b90393039d8	bg1	200000	good	no
mca-u53.bin	524288	64c76e05	379cef5e0cba78d0e886c9cede41985850a3afb7	ymsnd:adpcma	0	good	no	mca-u53.bin

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	16000000
cpu	soundcpu	Zilog Z80	4000000
audio	mono	Speaker
audio	ymsnd	YM2610 OPNB	8000000

device_ref

name
m68000
z80
screen
gfxdecode
palette
tmap038
tmap038
buffered_spriteram16
buffered_spriteram16
watchdog
speaker
generic_latch_8
generic_latch_8
ym2610

sound

channels
1

input

players	coins	service	tilt
2	2	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	3	8	no
joy	2	2	8	no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:P1
:P2

dipswitch

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW1	256

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	256	yes

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSW1	512

location

name	number	inverted
SW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	512	yes
On	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSW1	1024

location

name	number	inverted
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1024	yes
On	0	no

Coin Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Mode	DSW1	2048

location

name	number	inverted
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Mode 1	2048	yes
Mode 2	0	no

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	12288

location

name	number	inverted
SW1	5	no
SW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	0	no	DSW1	2048	eq	0
3 Coins/1 Credit	4096	no	DSW1	2048	eq	0
2 Coins/1 Credit	4096	no	DSW1	2048	eq	2048
1 Coin/1 Credit	12288	yes
2 Coins/3 Credits	0	no	DSW1	2048	eq	2048
1 Coin/2 Credits	8192	no	DSW1	2048	eq	2048
1 Coin/4 Credits	8192	no	DSW1	2048	eq	0

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	49152

location

name	number	inverted
SW1	7	no
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	0	no	DSW1	2048	eq	0
3 Coins/1 Credit	16384	no	DSW1	2048	eq	0
2 Coins/1 Credit	16384	no	DSW1	2048	eq	2048
1 Coin/1 Credit	49152	yes
2 Coins/3 Credits	0	no	DSW1	2048	eq	2048
1 Coin/2 Credits	32768	no	DSW1	2048	eq	2048
1 Coin/4 Credits	32768	no	DSW1	2048	eq	0

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW2	768

location

name	number	inverted
SW2	1	no
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	512	no
Normal	768	yes
Hard	256	no
Hardest	0	no

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW2	3072

location

name	number	inverted
SW2	3	no
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2	1024	no
3	3072	yes
4	2048	no
5	0	no

Energy

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Energy	DSW2	12288

location

name	number	inverted
SW2	5	no
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3	12288	yes
4	8192	no
5	4096	no
8	0	no

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	DSW2	49152

location

name	number	inverted
SW2	7	no
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Upright 1 Player	16384	no
Upright 2 Players	49152	yes
Upright 2 Players	0	no
Cocktail	32768	no
