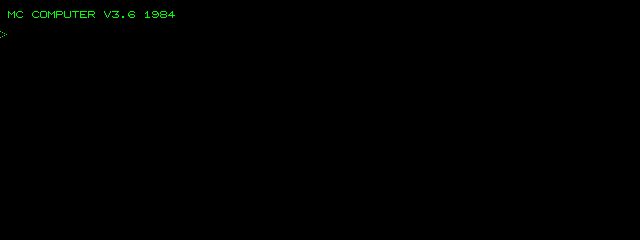

mc-CP/M-Computer - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mccpm	mc/mccpm.cpp		no	no	no	yes	mc-CP/M-Computer	1981	GRAF Elektronik Systeme GmbH

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
rs232a:terminal:terminal_screen	raster	0	640	240	50.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	no	no	no	no

rom

name	size	crc	sha1	region	status	optional	bios
mon36.j15	4096	9c441537	f95bad52d9392b8fc9d9b8779b7b861672a0022b	maincpu	good	no	v36
monhemc.bin	4096	cae7b56e	1f40be9491a595e6705099a452743cc0d49bfce8	maincpu	good	no	v34
mc01mon.bin	3328	d1c89043	f52a0ed3793dde0de74596be7339233b6a1770af	maincpu	good	no	v34a

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	4000000
cpu	brg1	Fairchild 4702B Bit Rate Generator	2457600
cpu	brg2	Fairchild 4702B Bit Rate Generator	2457600
audio	rs232a:terminal:bell	Speaker
audio	rs232a:terminal:beeper	Beep	2000
audio	fdc:0:flop:flopsndout	Speaker
audio	fdc:0:flop:floppysound	Floppy sound	44100
audio	fdc:1:flop:flopsndout	Speaker
audio	fdc:1:flop:floppysound	Floppy sound	44100

device_ref

name
z80
f4702
f4702
z80sio
z80sio_channel
z80sio_channel
rs232
serial_terminal
screen
generic_keyboard
speaker
beep
rs232
z80pio
fd1797
floppy_connector
floppy_525_qd
speaker
flopsnd
floppy_connector
floppy_525_qd
speaker
flopsnd

biosset

name	description	default
v36	V3.6	no
v34	V3.4	no
v34a	V3.4 (alt)	no

sound

channels
3

feature

type	status	overall
sound	unemulated

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
floppydisk	fdc:0:flop	floppy_5_25			floppydisk1	flop1
floppydisk	fdc:1:flop	floppy_5_25			floppydisk2	flop2

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
floppydisk	fdc:0:flop	floppy_5_25			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk
floppydisk	fdc:1:flop	floppy_5_25			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keyboard		73		no

port, analog

port_tag	analog_masks
:BAUD1
:BAUD2
:rs232a:terminal:RS232_DATABITS
:rs232a:terminal:RS232_PARITY
:rs232a:terminal:RS232_RXBAUD
:rs232a:terminal:RS232_STOPBITS
:rs232a:terminal:RS232_TXBAUD
:rs232a:terminal:TERM_CONF
:rs232a:terminal:keyboard:GENKBD_CFG
:rs232a:terminal:keyboard:GENKBD_MOD
:rs232a:terminal:keyboard:GENKBD_ROW0
:rs232a:terminal:keyboard:GENKBD_ROW1
:rs232a:terminal:keyboard:GENKBD_ROW2
:rs232a:terminal:keyboard:GENKBD_ROW3

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
rs232a	terminal	serial_terminal	yes
rs232a	sunkbd	sunkbd_adaptor	no
rs232a	dec_loopback	dec_rs232_loopback	no
rs232a	ie15	ie15_terminal	no
rs232a	null_modem	null_modem	no
rs232a	keyboard	serial_keyboard	no
rs232a	patch	rs232_patch_box	no
rs232a	swtpc8212	swtpc8212_terminal	no
rs232a	printer	serial_printer	no
rs232a	scorpion	scorpion_ic	no
rs232a	loopback	rs232_loopback	no
rs232a	mockingboard	mockingboardd	no
rs232a	msystems_mouse	rs232_mouse_hle_msystems	no
rs232a	nss_tvi	nss_tvinterface	no
rs232a	rs232_sync_io	rs232_sync_io	no
rs232a	pty	pseudo_terminal	no
rs232a	votraxtnt	serial_votraxtnt	no
rs232a	rs_printer	rs_serial_printer	no
rs232b	terminal	serial_terminal	no
rs232b	sunkbd	sunkbd_adaptor	no
rs232b	dec_loopback	dec_rs232_loopback	no
rs232b	ie15	ie15_terminal	no
rs232b	null_modem	null_modem	no
rs232b	keyboard	serial_keyboard	no
rs232b	patch	rs232_patch_box	no
rs232b	swtpc8212	swtpc8212_terminal	no
rs232b	printer	serial_printer	no
rs232b	scorpion	scorpion_ic	no
rs232b	loopback	rs232_loopback	no
rs232b	mockingboard	mockingboardd	no
rs232b	msystems_mouse	rs232_mouse_hle_msystems	no
rs232b	nss_tvi	nss_tvinterface	no
rs232b	rs232_sync_io	rs232_sync_io	no
rs232b	pty	pseudo_terminal	no
rs232b	votraxtnt	serial_votraxtnt	no
rs232b	rs_printer	rs_serial_printer	no
fdc:0	flop	floppy_525_qd	yes
fdc:1	flop	floppy_525_qd	yes

configuration

Data Bits

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Data Bits	rs232a:terminal:RS232_DATABITS	255

setting

name	value	default
5	0	no
6	1	no
7	2	no
8	3	yes

Parity

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Parity	rs232a:terminal:RS232_PARITY	255

setting

name	value	default
None	0	yes
Odd	1	no
Even	2	no
Mark	3	no
Space	4	no

RX Baud

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
RX Baud	rs232a:terminal:RS232_RXBAUD	255

setting

name	value	default
50	14	no
75	15	no
110	0	no
134.5	16	no
150	1	no
200	17	no
300	2	no
600	3	no
1200	4	no
1800	18	no
2000	19	no
2400	5	no
3600	20	no
4800	6	no
7200	21	no
9600	7	yes
14400	8	no
19200	9	no
28800	10	no
38400	11	no
57600	12	no
111900	22	no
115200	13	no

Stop Bits

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Stop Bits	rs232a:terminal:RS232_STOPBITS	255

setting

name	value	default
0	0	no
1	1	yes
1.5	2	no
2	3	no

TX Baud

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
TX Baud	rs232a:terminal:RS232_TXBAUD	255

setting

name	value	default
50	14	no
75	15	no
110	0	no
134.5	16	no
150	1	no
200	17	no
300	2	no
600	3	no
1200	4	no
1800	18	no
2000	19	no
2400	5	no
3600	20	no
4800	6	no
7200	21	no
9600	7	yes
14400	8	no
19200	9	no
28800	10	no
38400	11	no
57600	12	no
111900	22	no
115200	13	no

Cursor

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cursor	rs232a:terminal:TERM_CONF	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	1	yes

Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Type	rs232a:terminal:TERM_CONF	2

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Underline	0	no
Block	2	yes

Blinking

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Blinking	rs232a:terminal:TERM_CONF	4

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	4	yes

Invert

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Invert	rs232a:terminal:TERM_CONF	8

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	8	yes

Color

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Color	rs232a:terminal:TERM_CONF	48

setting

name	value	default
Green	0	yes
Amber	16	no
White	32	no

Auto CR on LF

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Auto CR on LF	rs232a:terminal:TERM_CONF	64

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	64	yes

Auto LF on CR

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Auto LF on CR	rs232a:terminal:TERM_CONF	128

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	128	no

Local echo

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Local echo	rs232a:terminal:TERM_CONF	256

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	256	no

Layout

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Layout	rs232a:terminal:keyboard:GENKBD_CFG	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
ANSI	0	yes
JIS	1	no

Typematic Delay

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Typematic Delay	rs232a:terminal:keyboard:GENKBD_CFG	6

setting

name	value	default
0.25s	0	no
0.5s	2	no
0.75s	4	yes
1.0s	6	no

Typematic Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Typematic Rate	rs232a:terminal:keyboard:GENKBD_CFG	248

setting

name	value	default
2.0cps	0	no
2.1cps	8	no
2.5cps	16	no
2.7cps	24	no
2.0cps	32	no
2.1cps	40	no
2.5cps	48	no
2.7cps	56	no
3.3cps	64	no
3.8cps	72	no
4.0cps	80	no
4.3cps	88	no
4.6cps	96	no
5.0cps	104	no
5.5cps	112	no
6.0cps	120	no
8.0cps	128	no
8.6cps	136	no
9.2cps	144	no
10.0cps	152	yes
10.9cps	160	no
12.0cps	168	no
13.3cps	176	no
15.0cps	184	no
16.0cps	192	no
17.1cps	200	no
18.5cps	208	no
20.0cps	216	no
21.8cps	224	no
24.0cps	232	no
26.7cps	240	no
30.0cps	248	no

dipswitch

Baud Rate B (Printer)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Baud Rate B (Printer)	BAUD1	15

location

name	number	inverted
S	5	no
S	6	no
S	7	no
S	8	no

value

name	value	default
50	2	no
75	3	no
110	15	no
134.5	4	no
150	14	no
200	5	no
300	13	no
600	6	no
1200	11	no
1800	10	no
2400	7	no
4800	9	no
9600	8	yes
19200	0	no

Baud Rate A (Terminal)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Baud Rate A (Terminal)	BAUD2	15

location

name	number	inverted
S	1	no
S	2	no
S	3	no
S	4	no

value

name	value	default
50	2	no
75	3	no
110	15	no
134.5	4	no
150	14	no
200	5	no
300	13	no
600	6	no
1200	11	no
1800	10	no
2400	7	no
4800	9	no
9600	8	yes
19200	0	no
