Pit Boss Megatouch (9235-00-01 R0A) - mame (0288) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
megat	merit/meritm.cpp		no	no	no	yes	Pit Boss Megatouch (9235-00-01 R0A)	1994	Merit

snap

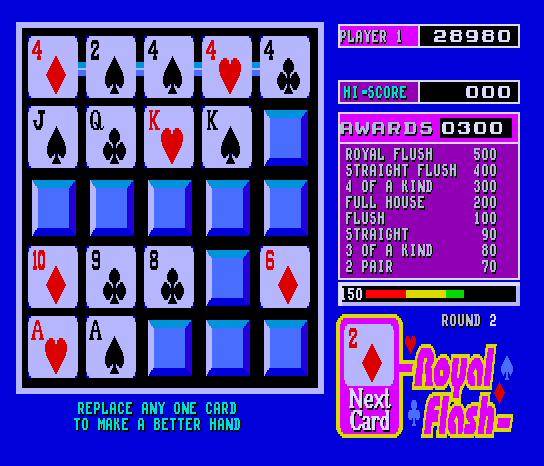

Pit Boss Megatouch (9235-00-01 R0A) png snap

Pit Boss Megatouch (9235-00-01 R0A) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
megat	12981	29/12/2025 11:31:35	544	466	96	96	0	Format24bppRgb	305:MAMEUI 0.277.0 (2025-04-30)	79ea916dc7aa572f14b7f3143a4797a7a2bc8a0f

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	543	465	59.922749	21477272	684	0	543	524	10	475	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
9235-00-01_u9-r0	65536	3f491589	d1fcbec2bd47a6734a08c42f6960313c3a9c9895	maincpu	0	good	no
9235-00-01_u10-r0	65536	853a1a99	45e33442aa7e51c05c9ac8b8458937ee3ff4c21d	maincpu	10000	good	no
9235-00-01_u11-r0	65536	905db7e3	fe4b8d4904aff3ee004e11d2d30d748589a00cbd	maincpu	20000	good	no
9235-00-01_u12-r0	65536	b9fb4203	84b514d9739d9c2ab1081cfc7cdedb41155ee038	maincpu	30000	good	no
9235-00-01_u13-r0	65536	574fb3c7	213741df3055b97ddd9889c2aa3d3e863e2c86d3	maincpu	40000	good	no
9235-00-01_u14-r0	65536	aa4c99e5	d7efd82836448e2ae73ccef204f4dce227eec237	maincpu	50000	good	no
9235-00-01_u15-r0a	65536	a40ed5e4	23d274e19adfc881d1bc413fc91be9fe0d25cab4	maincpu	60000	good	no
9235-01_u1-r0a_c1994_mii	34	c77fbe2a	e99db50b28cbeb1a97be53ec7188a970a75d89db	ds1204	0	baddump	no
qs9235-00-01_u7-r0	524288	16643f83	347af99f535a8b473c8780067d5132add7fa0d8c	extra	0	good	no
qs9235-00-01_u6-r0	524288	0a358743	cc7c1b75e391204a7bdae2e1cecd9b55b572f8d5	extra	80000	good	no
qs9235-00-01_u5-r0a	524288	ec0c18f6	ae4f60f516097607249dbd902f8aacfe95acb065	extra	100000	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3579545
cpu	microtouch:u4	Intel 8032	11059200
audio	mono	Speaker
audio	aysnd	AY8930 EPSG	1789772

device_ref

tag	name
:maincpu	z80
:ppi8255	i8255
:z80pio0	z80pio
:z80pio1	z80pio
:nvram	nvram
:ds1204	ds1204
:v9938_0	v9938
:v9938_1	v9938
:vblank_start	timer
:vblank_end	timer
:screen	screen
:mono	speaker
:aysnd	ay8930
:ns16550	ns16550
:microtouch	microtouch
:microtouch:u4	i8032

sound

channels
1

feature

type	status	overall
graphics	imperfect

input

players	coins	service	tilt
1	1	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
lightgun		1		no	0	16383	45	15

port, analog

port_tag	analog_masks
:DSW
:PIO1_PORTA
:PIO1_PORTB
:microtouch:TOUCH
:microtouch:TOUCH_X	16383
:microtouch:TOUCH_Y	16383

dipswitch

Touchscreen Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Touchscreen Type	DSW	1

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
13 Inch	0	yes
19 Inch (Inverts Screen Coordinates)	1	no

Enable Casino Games

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Enable Casino Games	DSW	2

location

name	number	inverted
SW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	2	yes

Sex Trivia & Sex Phrases

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Sex Trivia & Sex Phrases	DSW	4

location

name	number	inverted
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	4	yes

Coin Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Limit	DSW	8

location

name	number	inverted
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No Coin Limit	0	yes
2 Coin Limit	8	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW	16

location

name	number	inverted
SW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2 Coins/1 Credit	0	no
1 Coin/1 Credit	16	yes

Balls (Pit Pong) / Paddles (Breakin' Bricks)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Balls (Pit Pong) / Paddles (Breakin' Bricks)	DSW	32

location

name	number	inverted
SW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
11 Balls / 5 Paddles	0	no
7 Balls / 3 Paddles	32	yes

Sync Adjustment (Set by factory)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Sync Adjustment (Set by factory)	DSW	64

location

name	number	inverted
SW1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Sync Adjustment (Set by factory)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Sync Adjustment (Set by factory)	DSW	128

location

name	number	inverted
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

clones

name	description
megata	Pit Boss Megatouch (9234-20-01 R0A)
