mame (0289) • machine mephisto3d • Mephisto III (set 5)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mephisto3d	hegenerglaser/brikett.cpp		no	no	no	yes	Mephisto III (set 5)	1983	Hegener + Glaser	mephisto3	mephisto3

snap

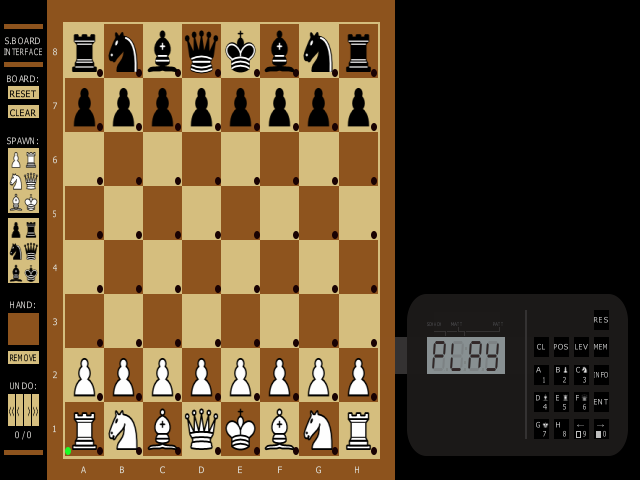

Mephisto III (set 5) png snap

Mephisto III (set 5) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
mephisto3d	45509	24/03/2026 16:56:42	640	480	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	cf18d7278c20cc9a6fc33b853a1cfd4dc66e20bd

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
101	16384	923de04f	ca7cb3e29aeb3432a815c9d58bb0ed45e7302581	maincpu	0	good	no
201	16384	0c3cb8fa	31449422142c19fc71474a057fc5d6af8a86be7d	maincpu	4000	good	no

chip

type	tag	name	clock
cpu	maincpu	RCA CDP1802	6144000
audio	speaker	Speaker
audio	dac	Filtered DAC

device_ref

tag	name
:maincpu	cdp1802
:irq_clock	clock
:display	mdisplay1
:display:lcd_pwm	pwm_display
:speaker	speaker
:dac	speaker_sound_device
:extport	cdp1852
:board	sensorboard
:led_pwm	pwm_display

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		17		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:IN.2
:IN.3
:IN.4
:IN.5
:PIECE
:RESET
:board:BS_CHECK
:board:CONF
:board:RANK.1
:board:RANK.10
:board:RANK.11
:board:RANK.12
:board:RANK.13
:board:RANK.2
:board:RANK.3
:board:RANK.4
:board:RANK.5
:board:RANK.6
:board:RANK.7
:board:RANK.8
:board:RANK.9
:board:SPAWN
:board:SS_CHECK
:board:UI
:board:UI_CHECK

configuration

CPU Frequency

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
CPU Frequency	IN.4	3

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3.579MHz (Battery)	0	no
6.144MHz (Mains)	1	yes
12MHz (Special)	2	no

ESB 6000 Board

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
ESB 6000 Board	IN.5	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	1	yes

Piece Notation

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Piece Notation	PIECE	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
English	1	no
German	0	yes

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
