mame (0289) • machine mgdha • Manguan Daheng (Taiwan, V123T1)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mgdha	igs/igs017.cpp		no	no	no	yes	Manguan Daheng (Taiwan, V123T1)	1997	IGS	mgdh	mgdh

snap

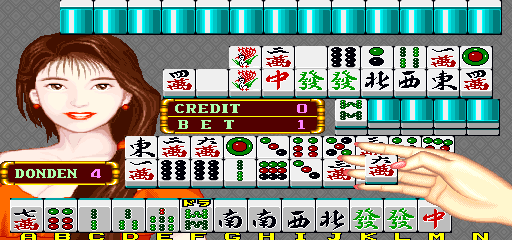

Manguan Daheng (Taiwan, V123T1) png snap

Manguan Daheng (Taiwan, V123T1) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
mgdha	18545	29/12/2025 11:31:35	512	240	96	96	0	Format24bppRgb	305:MAME 0.135u1 (Nov 20 2009)	8fc898dcd6bbe52b56cf8b5073f6f72d56e8cc36

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	240	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
flash.u19	524288	ff3aed2c	829140e6fc7e4dfc039b0e7b647ce26d59b23b3d	maincpu	0	good	no
m1001.u4	4194304	0cfb60d6	e099aca730e7fd91a72915c27e569ad3d21f0d8f	igs017_igs031:sprites	0	good	no	m1001.u4
s1002.u22	524288	ac6b55f2	7ff91fd1107272ad6bce071dc9ae2f374ebf5e3e	oki	0	good	no
text.u6	131072	db50f8fc	e2ce4a42f5bdc0b4b7988ad9e8d14661f17c3d51	igs017_igs031:tilemaps	0	good	no	igs_512e.u6

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	11000000
audio	mono	Speaker
audio	oki	OKI MSM6295 ADPCM	1000000

device_ref

tag	name
:igs_mux	igs_mux
:ppi8255	i8255
:screen	screen
:igs017_igs031	igs017_031
:igs017_igs031:palette	palette
:mono	speaker
:oki	okim6295
:maincpu	m68000
:scantimer	timer
:nvram	nvram
:hopper	coin_hopper

sound

channels
1

input

players	coins	service	tilt
1	1	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
joy		3	8	no
mahjong		25		no
gambling		4		no

port, analog

port_tag	analog_masks
:BUTTONS
:COINS
:DSW1
:DSW2
:KEY0
:KEY1
:KEY2
:KEY3
:KEY4
:MATRIX
:hopper:TEST

dipswitch

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW1	1

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Key-In Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key-In Rate	DSW1	6

location

name	number	inverted
SW1	2	no
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5	6	yes
10	4	no
50	2	no
100	0	no

Credit Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credit Limit	DSW1	8

location

name	number	inverted
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
100	8	yes
500	0	no

Credit Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credit Mode	DSW1	16

location

name	number	inverted
SW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Coin Acceptor	16	yes
Key-In	0	no

Payout Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Payout Mode	DSW1	32

location

name	number	inverted
SW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Return Coins	32	yes
Key-Out	0	no

Minimum Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Minimum Bet	DSW1	192

location

name	number	inverted
SW1	7	no
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	192	yes
2	128	no
3	64	no
5	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	1	yes

Controls

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Controls	DSW2	2

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Mahjong	2	yes
Joystick	0	no

Double Up Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game	DSW2	4

location

name	number	inverted
SW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	4	yes

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW2	24

location

name	number	inverted
SW2	4	no
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2 Coins/1 Credit	0	no
1 Coin/1 Credit	24	yes
1 Coin/2 Credits	16	no
1 Coin/3 Credits	8	no

Coin Out Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Out Rate	DSW2	224

location

name	number	inverted
SW2	6	no
SW2	7	no
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	224	yes
2 Coins/1 Credit	192	no
5 Coins/1 Credit	160	no
6 Coins/1 Credit	128	no
7 Coins/1 Credit	96	no
8 Coins/1 Credit	64	no
9 Coins/1 Credit	32	no
10 Coins/1 Credit	0	no
