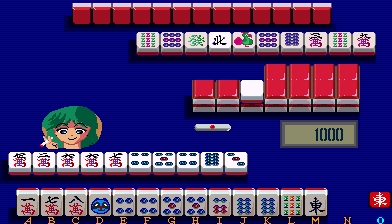

Mahjong Hourouki Gaiden (Japan) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mhgaiden	misc/homedata.cpp		no	no	no	yes	Mahjong Hourouki Gaiden (Japan)	1987	Home Data

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	432	224	59.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
x72e01.bin	32768	98cfa53e	dd08f5f9ff9d4a9e01e531247fcb17a8407ca8b6	maincpu	0	good	no
x72b10.bin	131072	00ebbc45	9e7ade202bf37a86153a38d705ae26a72732d2bb	audiocpu	0	good	no
x72b03.bin	131072	9019936f	5b98ad1b4c0b141bc84fc17bea49784883c5775a	gfx1	0	good	no
x72b04.bin	131072	37e3e779	7011159dee2c643c3fd6ffbbd0849f63933279ad	gfx2	0	good	no
x72b05.bin	131072	aa5ce6f6	d97b08fce68a69b1445d5ab28c0c97fabb5f264b	gfx2	20000	good	no
x72c06.bin	32768	b57fb589	21b2fc33b9045a4ffa9e4b0bd598fd3416c0adbf	proms	0	good	no
x72c07.bin	32768	2aadb285	90af8541092fbb116b6d6eaf1511b49a2f9bceaf	proms	1	good	no
x72b08.bin	131072	be312d23	f2c18d6372c2f819248976c67abe0ddcd5cc1de1	blit_rom	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809E	2000000
cpu	audiocpu	Zilog Z80	4000000
audio	speaker	Speaker
audio	snsnd	SN76489A	4000000
audio	dac	8-Bit R-2R DAC

device_ref

name
mc6809e
z80
screen
gfxdecode
palette
speaker
generic_latch_8
sn76489a
dac_8bit_r2r

sound

channels
1

input

players	coins	service	tilt
2	1	yes	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
mahjong	1	20		no
mahjong	2	20		no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:IN0
:KEY0
:KEY1
:KEY2
:KEY3
:KEY4
:KEY5
:KEY6
:KEY7
:KEY8
:KEY9

dipswitch

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW1	1

location

name	number	inverted
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	no
On	0	yes

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW1	2

location

name	number	inverted
SW1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW1	12

location

name	number	inverted
SW1	6	no
SW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3 Coins/1 Credit	0	no
2 Coins/1 Credit	4	no
1 Coin/1 Credit	12	yes
1 Coin/2 Credits	8	no

Initial Score

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Initial Score	DSW1	16

location

name	number	inverted
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1000	16	yes
2000	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW1	224

location

name	number	inverted
SW1	3	no
SW1	2	no
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 (easiest)	224	no
2	192	no
3	160	no
4	128	yes
5	96	no
6	64	no
7	32	no
8 (hardest)	0	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSW2	1

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Girl Voice

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Girl Voice	DSW2	2

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	4

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	8

location

name	number	inverted
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	16

location

name	number	inverted
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	32

location

name	number	inverted
SW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	64

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	128

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Freeze?

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Freeze?	IN0	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no
