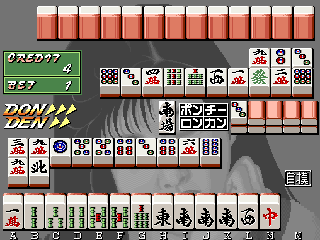

Mahjong Electron Base (parts 2 & 4, Japan bootleg) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mjelctrb	dynax/dynax.cpp		no	no	no	yes	Mahjong Electron Base (parts 2 & 4, Japan bootleg)	1993	bootleg	mjelctrn	mjelctrn

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	180	508	240	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
prog.u27	131072	688990ca	34825cee8f76de93f12ccf2a1021f9c5369da46a	maincpu	0	good	no
eb-01.rom	1048576	e5c41448	b8322e32b0cb3d771316c9c4f7be91de6e422a24	blitter	0	good	no	eb-01.rom
eb-02.rom	524288	e1f1b431	04a612aff4c30cb8ea741f228bfa7e4289acfee8	blitter	100000	good	no	eb-02.rom

chip

type	tag	name	clock
cpu	maincpu	Toshiba TMPZ84C015	5500000
audio	mono	Speaker
audio	aysnd	AY-3-8912A PSG	1375000
audio	ym2413	YM2413 OPLL	3579545
audio	msm	OKI MSM5205 ADPCM	384000

device_ref

name
tmpz84c015
z80sio
z80sio_channel
z80sio_channel
z80ctc
z80ctc_channel
z80ctc_channel
z80ctc_channel
z80ctc_channel
z80pio
address_map_bank
nvram
ls259
ls259
screen
tc17g032ap
palette
speaker
ay8912
ym2413
msm5205
coin_hopper

sound

channels
1

input

players	coins	service	tilt
2	1	yes	no

control

type	player	buttons	reverse
mahjong	1	26	no
gambling	1	3	no
mahjong	2	26	no

port, analog

port_tag	analog_masks
:COINS
:DSW0
:DSW1
:DSW2
:DSW3
:FAKE
:KEY0
:KEY1
:KEY2
:KEY3
:KEY4
:KEY5
:KEY6
:KEY7
:KEY8
:KEY9
:SW1

dipswitch

Difficulty?

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty?	DSW0	3

location

name	number	inverted
SW3	1	no
SW3	2	no

value

name	value	default
0	3	yes
1	0	no
2	1	no
3	2	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW0	12

location

name	number	inverted
SW3	3	no
SW3	4	no

value

name	value	default
1 Coin/1 Credit	12	yes
1 Coin/2 Credits	8	no
1 Coin/5 Credits	4	no
1 Coin/10 Credits	0	no

Minimum Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Minimum Bet	DSW0	48

location

name	number	inverted
SW3	5	no
SW3	6	no

value

name	value	default
1	48	yes
2	32	no
3	16	no
5	0	no

Payout Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Payout Mode	DSW0	64

location

name	number	inverted
SW3	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Key-out	64	yes
Hopper	0	no

Hopper Polarity

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Polarity	DSW0	128

location

name	number	inverted
SW3	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	128	yes
Inverted	0	no

Payout Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Payout Rate	DSW1	15

location

name	number	inverted
SW4	1	no
SW4	2	no
SW4	3	no
SW4	4	no

value

name	value	default
50%	0	no
53%	1	no
56%	2	no
59%	3	no
62%	4	no
65%	5	no
68%	6	no
71%	7	yes
75%	8	no
78%	9	no
81%	10	no
84%	11	no
87%	12	no
90%	13	no
93%	14	no
96%	15	no

Maximum Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Maximum Bet	DSW1	48

location

name	number	inverted
SW4	5	no
SW4	6	no

value

name	value	default
1	48	yes
5	32	no
10	16	no
20	0	no

Credits Per Note

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credits Per Note	DSW1	64

location

name	number	inverted
SW4	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5	64	no	DSW0	12	eq	12
10	64	no	DSW0	12	eq	8
25	64	no	DSW0	12	eq	4
50	64	no	DSW0	12	eq	0
10	0	yes	DSW0	12	eq	12
20	0	yes	DSW0	12	eq	8
50	0	yes	DSW0	12	eq	4
100	0	yes	DSW0	12	eq	0

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSW1	128

location

name	number	inverted
SW4	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Yakuman Bonus Cycle

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Yakuman Bonus Cycle	DSW2	7

location

name	number	inverted
SW2	1	no
SW2	2	no
SW2	3	no

value

name	value	default
None	7	no
First time only	6	no
Every 300 coins	5	no
Every 500 coins	4	yes
Every 700 coins	3	no
Every 1000 coins	2	no

Yakuman Bonuses Per Cycle

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Yakuman Bonuses Per Cycle	DSW2	8

location

name	number	inverted
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	8	yes
2	0	no

Win Rate?

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Win Rate?	DSW2	16

location

name	number	inverted
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
High	16	yes
Low	0	no

Draw New Tile (Part 3 Only)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Draw New Tile (Part 3 Only)	DSW2	32

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Automatic	0	no
Manual	32	yes

Don Den Button

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Don Den Button	DSW2	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
A	64	no
Flip Flop	0	yes

Subtitle

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Subtitle	DSW2	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
None (Part 2)	128	no
Super Express (Part 3)	0	yes

Last Chance

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Last Chance	DSW3	1

location

name	number	inverted
SW5	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	1	yes

Pay Rate?

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Pay Rate?	DSW3	2

location

name	number	inverted
SW5	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
High	2	yes
Low	0	no

Choose Bonus

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Choose Bonus	DSW3	4

location

name	number	inverted
SW5	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

In-Game Bet?

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
In-Game Bet?	DSW3	8

location

name	number	inverted
SW5	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	8	yes

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW3	16

location

name	number	inverted
SW5	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	no
On	0	yes

In-Game Music

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
In-Game Music	DSW3	32

location

name	number	inverted
SW5	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	no
On	0	yes

Gal Select

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Gal Select	DSW3	64

location

name	number	inverted
SW5	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Nudity

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Nudity	DSW3	128

location

name	number	inverted
SW5	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Yes	0	yes
No	128	no

Allow Bets

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Allow Bets	FAKE	255

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	255	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	SW1	1

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	SW1	2

location

name	number	inverted
SW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

name	value	default
50%	0	no
53%	1	no
56%	2	no
59%	3	no
62%	4	no
65%	5	no
68%	6	no
71%	7	yes
75%	8	no
78%	9	no
81%	10	no
84%	11	no
87%	12	no
90%	13	no
93%	14	no
96%	15	no

name	value	default
50%	0	no
53%	1	no
56%	2	no
59%	3	no
62%	4	no
65%	5	no
68%	6	no
71%	7	yes
75%	8	no
78%	9	no
81%	10	no
84%	11	no
87%	12	no
90%	13	no
93%	14	no
96%	15	no

name	value	default
50%	0	no
53%	1	no
56%	2	no
59%	3	no
62%	4	no
65%	5	no
68%	6	no
71%	7	yes
75%	8	no
78%	9	no
81%	10	no
84%	11	no
87%	12	no
90%	13	no
93%	14	no
96%	15	no
