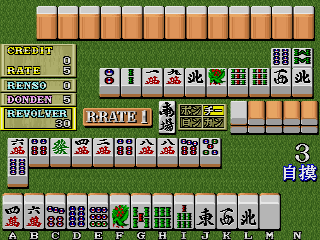

Mahjong Reach (Ver. 1.00, set 1) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mjreach	dynax/dynax.cpp		no	no	no	yes	Mahjong Reach (Ver. 1.00, set 1)	1994	Dynax

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	508	240	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
cs16-1.u15	262144	b55bafa6	eda4b5e90584bcdf6cd546ba767d9fbcf3aa35c5	maincpu	0	good	no
mjreach-mcu.u3	8192	091a85dc	964ccbc13466464c2feee10f807078ec517bed5c	maincpu	0	good	no
cs16-3.u13	524288	90f6036f	f92aafd0316dc235e58d615825f3110806bc2cf9	blitter	0	good	no
cs16-2.u12	262144	5558428d	b5e30673695b6e56a8c513b484f4f9c225c682cc	blitter	80000	good	no
cs16-3.u13	524288	90f6036f	f92aafd0316dc235e58d615825f3110806bc2cf9	blitter	100000	good	no

chip

type	tag	name	clock
cpu	maincpu	Toshiba TMP91640	10736350
audio	mono	Speaker
audio	aysnd	AY-3-8910A PSG	1375000
audio	ym2413	YM2413 OPLL	3579545

device_ref

name
tmp91640
address_map_bank
nvram
ls259
coin_hopper
screen
tc17g032ap
palette
speaker
ay8910
ym2413
msm6242

sound

channels
1

input

players	coins	service	tilt
2	1	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
mahjong	1	26		no
gambling	1	3		no
mahjong	2	26		no

port, analog

port_tag	analog_masks
:COINS
:DSW0
:DSW1
:DSW2
:DSW3
:DSW4
:KEY0
:KEY1
:KEY2
:KEY3
:KEY4
:KEY5
:KEY6
:KEY7
:KEY8
:KEY9

dipswitch

Payout Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Payout Rate	DSW0	15

location

name	number	inverted
DIP-SW1	1	no
DIP-SW1	2	no
DIP-SW1	3	no
DIP-SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
50%	0	no
53%	1	no
56%	2	no
59%	3	no
62%	4	no
65%	5	no
68%	6	no
71%	7	yes
75%	8	no
78%	9	no
81%	10	no
84%	11	no
87%	12	no
90%	13	no
93%	14	no
96%	15	no

Odds Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Odds Rate	DSW0	48

location

name	number	inverted
DIP-SW1	5	no
DIP-SW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 2 4 8 12 16 24 32	48	no
1 2 3 5 8 15 30 50	0	yes
1 2 3 5 10 25 50 100	16	no
1 2 3 5 10 50 100 200	32	no

Maximum Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Maximum Bet	DSW0	192

location

name	number	inverted
DIP-SW1	7	no
DIP-SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	192	no
5	128	no
10	64	yes
20	0	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW1	3

location

name	number	inverted
DIP-SW2	1	no
DIP-SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	3	yes
1 Coin/2 Credits	2	no
1 Coin/5 Credits	1	no
1 Coin/10 Credits	0	no

Minimum Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Minimum Bet	DSW1	12

location

name	number	inverted
DIP-SW2	3	no
DIP-SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	12	yes
2	8	no
3	4	no
5	0	no

Yakuman Bonus Cycle

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Yakuman Bonus Cycle	DSW1	112

location

name	number	inverted
DIP-SW2	5	no
DIP-SW2	6	no
DIP-SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
None	112	no
First time only	96	no
Every 300 coins	80	no
Every 500 coins	64	yes
Every 700 coins	48	no
Every 1000 coins	32	no

Yakuman Bonuses Per Cycle

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Yakuman Bonuses Per Cycle	DSW1	128

location

name	number	inverted
DIP-SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	0	yes
2	128	no

Payout Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Payout Mode	DSW2	1

location

name	number	inverted
DIP-SW3	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Key-out	1	yes
Hopper	0	no

Hopper Polarity

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Polarity	DSW2	2

location

name	number	inverted
DIP-SW3	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	2	yes
Inverted	0	no

Double Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Bet	DSW2	4

location

name	number	inverted
DIP-SW3	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	no
On	0	yes

Computer Strength

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Computer Strength	DSW2	8

location

name	number	inverted
DIP-SW3	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	0	yes
Strong	8	no

Renchan Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Renchan Rate	DSW2	16

location

name	number	inverted
DIP-SW3	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	no
On	0	yes

Last Chance

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Last Chance	DSW2	32

location

name	number	inverted
DIP-SW3	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	no
On	0	yes

Last Chance Count

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Last Chance Count	DSW2	192

location

name	number	inverted
DIP-SW3	7	no
DIP-SW3	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	192	no
3	128	no
5	0	yes
10	64	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW3	1

location

name	number	inverted
DIP-SW4	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	no
On	0	yes

In-Game Music

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
In-Game Music	DSW3	2

location

name	number	inverted
DIP-SW4	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

Auto Reach

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Auto Reach	DSW3	4

location

name	number	inverted
DIP-SW4	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	no
On	0	yes

Don Den Button

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Don Den Button	DSW3	8

location

name	number	inverted
DIP-SW4	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Start	8	no
Flip Flop	0	yes

Show Renchan Gal

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Renchan Gal	DSW3	16

location

name	number	inverted
DIP-SW4	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	no
On	0	yes

In-Game Messages

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
In-Game Messages	DSW3	32

location

name	number	inverted
DIP-SW4	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	no
On	0	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW3	64

location

name	number	inverted
DIP-SW4	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	no
On	0	yes

Super Revolver Jackpot Payout Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Super Revolver Jackpot Payout Rate	DSW3	128

location

name	number	inverted
DIP-SW4	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	0	no
Frequent	128	yes

Credits Per Note

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credits Per Note	DSW4	1

location

name	number	inverted
DIP-SW1	9	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5	1	no	DSW1	3	eq	3
10	1	no	DSW1	3	eq	2
25	1	no	DSW1	3	eq	1
50	1	no	DSW1	3	eq	0
10	0	yes	DSW1	3	eq	3
20	0	yes	DSW1	3	eq	2
50	0	yes	DSW1	3	eq	1
100	0	yes	DSW1	3	eq	0

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSW4	2

location

name	number	inverted
DIP-SW1	10	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Credit Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credit Limit	DSW4	12

location

name	number	inverted
DIP-SW2	9	no
DIP-SW2	10	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
300	12	no
500	8	yes
700	4	no
1000	0	no

Super Revolver

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Super Revolver	DSW4	16

location

name	number	inverted
DIP-SW3	9	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	no
On	0	yes

Payout Variation

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Payout Variation	DSW4	32

location

name	number	inverted
DIP-SW3	10	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Small	32	no
Normal	0	yes

Renchan Gal Display

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Renchan Gal Display	DSW4	64

location

name	number	inverted
DIP-SW4	9	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
After Each Win	64	yes
After 3 Consecutive Wins	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW4	128

location

name	number	inverted
DIP-SW4	10	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
