mame (0289) • machine mk2 • Mortal Kombat II (rev L3.1)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mk2	williams/midtunit.cpp		no	no	no	yes	Mortal Kombat II (rev L3.1)	1993	Midway

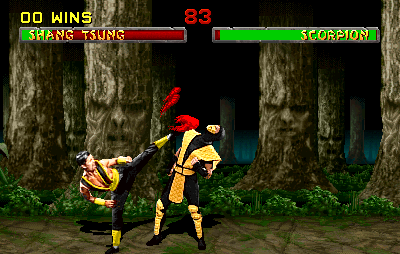

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
mk2	57196	29/12/2025 11:31:35	400	254	96	96	0	Format24bppRgb	305:MAME 0.127 (Aug 19 2008)	ee456c1c2df3e64ed37def4f2c14ad2675bf6d81

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	400	254	54.706840	8000000	506	100	500	289	20	274	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
l1_mortal_kombat_ii_game_rom_ug14.ug14	1048576	01e73af6	6598cfd704cc92a7f358a0e1f1c973ab79dcc493	video	0	good	no
l1_mortal_kombat_ii_game_rom_ug16.ug16	1048576	8ba6ae18	465fe907de4a1e502180c4e41642998dd3abc8e6	video	400000	good	no
l1_mortal_kombat_ii_game_rom_ug17.ug17	1048576	937d8620	8b9f80a460b124a747a6d1495b53f01f580e28f1	video	800000	good	no
l1_mortal_kombat_ii_game_rom_ug19.ug19	1048576	fec137be	f11ecb8a7993f5c4f4449564b4911f69bd6e9bf8	video	2	good	no
l1_mortal_kombat_ii_game_rom_ug20.ug20	1048576	809118c1	86153e648834c749e34573151cd4fee403a81962	video	400002	good	no
l1_mortal_kombat_ii_game_rom_ug22.ug22	1048576	154d53b1	58ff0aa59101f40a9a3b5fbae1c904d0b0b31612	video	800002	good	no
l1_mortal_kombat_ii_game_rom_uj14.uj14	1048576	d4985cbb	367865da7efae38d83de3c0868d02a705177ae63	video	1	good	no
l1_mortal_kombat_ii_game_rom_uj16.uj16	1048576	39d885b4	2251826d247c3c6df421124718401fb35a672f83	video	400001	good	no
l1_mortal_kombat_ii_game_rom_uj17.uj17	1048576	218de160	87aea173720d2a33d8183903f4fe8ba1d47e3348	video	800001	good	no
l1_mortal_kombat_ii_game_rom_uj19.uj19	1048576	2d763156	06536006da49ab5fb6b75b25f801b83fad000ff5	video	3	good	no
l1_mortal_kombat_ii_game_rom_uj20.uj20	1048576	b96824f0	d42b122f9a57da330192abc7e5f97abc4065d718	video	400003	good	no
l1_mortal_kombat_ii_game_rom_uj22.uj22	1048576	8891d785	fd460df1ef8f4306ea42f7dc41488a80fd2c8f53	video	800003	good	no
l1_mortal_kombat_ii_sound_rom_u2.u2	524288	5f23d71d	54c2afef243759e0f3dbe2907edbc4302f5c8bad	dcs	0	good	no
l1_mortal_kombat_ii_sound_rom_u3.u3	524288	d6d92bf9	397351c6b707f2595e36360471015f9fa494e894	dcs	200000	good	no
l1_mortal_kombat_ii_sound_rom_u4.u4	524288	eebc8e0f	705ab63ff7672a4857d546afda6dca4973cce1ad	dcs	400000	good	no
l1_mortal_kombat_ii_sound_rom_u5.u5	524288	2b0b7961	1cdc64aab74d14afbd8c3531e3d0bd49271a281f	dcs	600000	good	no
l1_mortal_kombat_ii_sound_rom_u6.u6	524288	f694b27f	d43e38a124665f49ebb4ffc5a55e8f19a1a64686	dcs	800000	good	no
l1_mortal_kombat_ii_sound_rom_u7.u7	524288	20387e0a	505d05173b2a1f1ee3ebc2898ccd3a95c98dd04a	dcs	a00000	good	no
l3.1_mortal_kombat_ii_game_rom_ug12.ug12	524288	582c7dfd	f32bd1213ce70f74caa97a2047815cf4baee56b5	maincpu	1	good	no
l3.1_mortal_kombat_ii_game_rom_uj12.uj12	524288	cf100a75	c5cf739fdb08e311f47794eb93a8d34d4bc11cde	maincpu	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Texas Instruments TMS34010	50000000
cpu	dcs:dcs	Analog Devices ADSP-2105	10000000
audio	speaker	Speaker
audio	dcs	DCS Audio 2K
audio	dcs:dac	DMA-driven DAC

device_ref

tag	name
:video	tunitvid
:maincpu	tms34010
:nvram	nvram
:watchdog	watchdog
:palette	palette
:screen	screen
:speaker	speaker
:dcs	dcs_audio_2k
:dcs:dcs	adsp2105
:dcs:dcs_reg_timer	timer
:dcs:dcs_int_timer	timer
:dcs:dac	dmadac

sound

channels
1

input

players	coins	service	tilt
2	4	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
joy	1	6	8	no
joy	2	6	8	no

port, analog

port_tag	analog_masks
:DSW
:IN0
:IN1
:IN2

dipswitch

Test Switch

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Test Switch	DSW	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Counters

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Counters	DSW	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
One	2	no
Two	0	yes

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW	124

value

name	value	default
USA-1	124	yes
USA-2	60	no
USA-3	92	no
USA-4	28	no
USA-ECA	108	no
USA-Free Play	12	no
German-1	116	no
German-2	52	no
German-3	84	no
German-4	20	no
German-5	100	no
German-ECA	36	no
German-Free Play	4	no
French-1	120	no
French-2	56	no
French-3	88	no
French-4	24	no
French-ECA	104	no
French-Free Play	8	no

Coinage Source

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage Source	DSW	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Dipswitch	128	no
CMOS	0	yes

Circuit Boards

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Circuit Boards	DSW	256

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2	256	no
1	0	yes

Powerup Test

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Powerup Test	DSW	512

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	512	no

Bill Validator

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bill Validator	DSW	1024

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Installed	0	no
Not Present	1024	yes

Comic Book Offer

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Comic Book Offer	DSW	2048

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	2048	yes

Attract Sound

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Attract Sound	DSW	4096

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	4096	yes

Low Blows

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Low Blows	DSW	8192

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	8192	yes

Blood

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Blood	DSW	16384

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	16384	yes

Violence

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Violence	DSW	32768

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	32768	yes

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	IN1	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

clones

name	description
mk2r11	Mortal Kombat II (rev L1.1)
mk2r14	Mortal Kombat II (rev L1.4)
mk2r20	Mortal Kombat II (rev L2.0)
mk2r21	Mortal Kombat II (rev L2.1)
mk2r30	Mortal Kombat II (rev L3.0)
mk2r31e	Mortal Kombat II (rev L3.1, European)
mk2r32e	Mortal Kombat II (rev L3.2, European)
mk2r42	Mortal Kombat II (rev L4.2, hack)
mk2r91	Mortal Kombat II (rev L9.1, hack)
mk2chal	Mortal Kombat II Challenger (hack)
