Mephisto MM I (ver. B) - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mm1	hegenerglaser/mm1.cpp		no	no	no	yes	Mephisto MM I (ver. B)	1983	Hegener + Glaser

snap

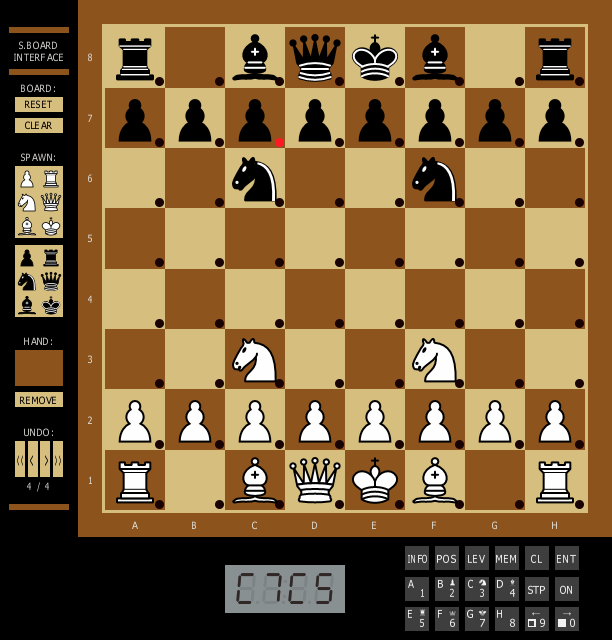

Mephisto MM I (ver. B) png snap

Mephisto MM I (ver. B) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
mm1	50356	29/12/2025 11:31:35	612	640	96	96	0	Format24bppRgb	305:MAME 0.268.1 (Aug 1 2024)	ef6bcc67af51cba766c41df1f000d616c452af0f

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
mm1b.bin	32768	90bf840e	cdec6b02c1352b2a00d66964989a17c2b81ec79e	maincpu	0	good	no

chip

type	tag	name	clock
cpu	maincpu	RCA CDP1806	8000000
audio	speaker	Speaker
audio	dac	1-Bit DAC

softwarelist

tag	name	status	filter
cart_list	mephisto_mm1	original

device_ref

tag	name
:maincpu	cdp1806
:board	msboard
:board:board	sensorboard
:board:led_pwm	pwm_display
:display	mdisplay1
:display:lcd_pwm	pwm_display
:speaker	speaker
:dac	dac
:cartslot	generic_cartslot
:cart_list	software_list

sound

channels
1

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
cartridge	cartslot	mephisto_cart			cartridge	cart

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
cartridge	cartslot	mephisto_cart			bin

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		16		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:PIECE
:board:board:BS_CHECK
:board:board:CONF
:board:board:RANK.1
:board:board:RANK.10
:board:board:RANK.11
:board:board:RANK.12
:board:board:RANK.13
:board:board:RANK.2
:board:board:RANK.3
:board:board:RANK.4
:board:board:RANK.5
:board:board:RANK.6
:board:board:RANK.7
:board:board:RANK.8
:board:board:RANK.9
:board:board:SPAWN
:board:board:SS_CHECK
:board:board:UI
:board:board:UI_CHECK

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
cartslot

configuration

Piece Notation

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Piece Notation	PIECE	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
English	1	no
German	0	yes

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes

clones

name	description
mm1a	Mephisto MM I (ver. A)
