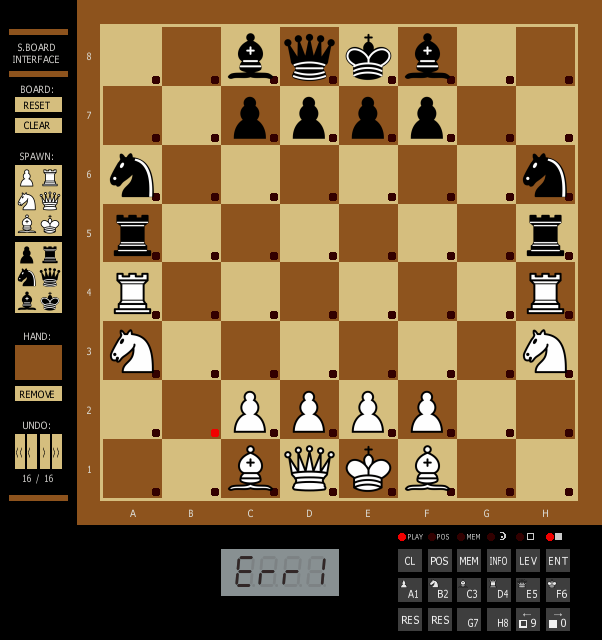

Mephisto MM V (v5.0) - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
mm5a	hegenerglaser/mm2.cpp		no	no	no	yes	Mephisto MM V (v5.0)	1990	Hegener + Glaser	mm5	mm5

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
mm5a.bin	32768	fcfa7e6e	afeac3a8c957ba58cefaa27b11df974f6f2066da	maincpu	8000	good	no

chip

type	tag	name	clock
cpu	maincpu	Rockwell R65C02	4915200
audio	speaker	Speaker
audio	dac	1-Bit DAC

softwarelist

tag	name	status	filter
cart_list	mephisto_mm5	original

device_ref

name
r65c02
hc259
msboard
sensorboard
pwm_display
mdisplay1
speaker
dac
generic_cartslot
software_list

sound

channels
1

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
cartridge	cartslot	mephisto_cart			cartridge	cart

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
cartridge	cartslot	mephisto_cart			bin

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keypad		18		no

port, analog

port_tag	analog_masks
:KEY.0
:KEY.1
:RESET
:board:board:BS_CHECK
:board:board:CONF
:board:board:RANK.1
:board:board:RANK.10
:board:board:RANK.2
:board:board:RANK.3
:board:board:RANK.4
:board:board:RANK.5
:board:board:RANK.6
:board:board:RANK.7
:board:board:RANK.8
:board:board:RANK.9
:board:board:SPAWN
:board:board:SS_CHECK
:board:board:UI
:board:board:UI_CHECK

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
cartslot

configuration

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
