mame (0289) • machine mondl68k • Mephisto Mondial 68000XL

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mondl68k	hegenerglaser/mondial68k.cpp		no	no	no	yes	Mephisto Mondial 68000XL	1988	Hegener + Glaser

snap

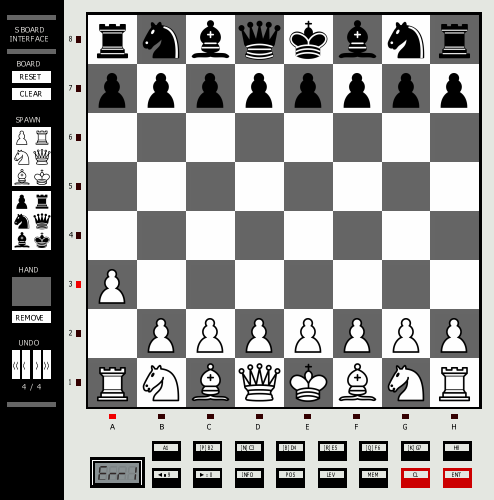

Mephisto Mondial 68000XL png snap

Mephisto Mondial 68000XL jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
mondl68k	40014	29/12/2025 11:31:35	494	500	96	96	0	Format24bppRgb	305:MAME 0.213 (Aug 29 2019)	2d615226256042f244fdd50283a3d30dcd420c14

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
68000xl_l_06.11.87	32768	564e32c5	8c9df46bc5ced114e72fb663f1055d775b8e2e0b	maincpu	1	good	no
68000xl_u_06.11.87	32768	aebe482a	900c91ec836cd65e4cd38e50555976ab8064be41	maincpu	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	12000000
audio	speaker	Speaker
audio	dac	2-Bit Ones Complement DAC

device_ref

tag	name
:maincpu	m68000
:lcd_latch	hc259
:board	sensorboard
:lcd	pcf2112
:led_pwm	pwm_display
:speaker	speaker
:dac	dac_2bit_oc

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		16		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:IN.2
:IN.3
:board:BS_CHECK
:board:CONF
:board:RANK.1
:board:RANK.10
:board:RANK.11
:board:RANK.12
:board:RANK.13
:board:RANK.2
:board:RANK.3
:board:RANK.4
:board:RANK.5
:board:RANK.6
:board:RANK.7
:board:RANK.8
:board:RANK.9
:board:SPAWN
:board:SS_CHECK
:board:UI
:board:UI_CHECK

configuration

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
