mame (0289) • machine moogsource • Moog Source

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
moogsource	moog/source.cpp		no	no	no	yes	Moog Source	1981	Moog Music

snap

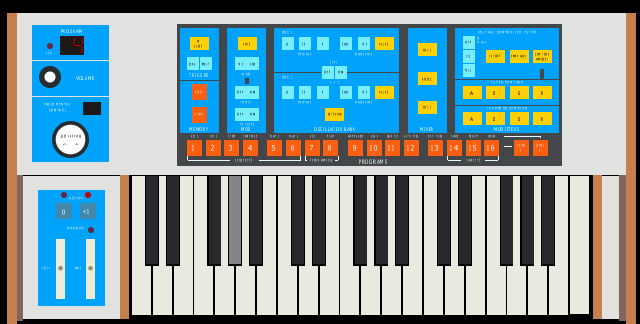

Moog Source png snap

Moog Source jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
moogsource	17191	29/12/2025 11:31:35	640	324	96	96	0	Format24bppRgb	305:MAMEUI 0.275.0 (2025-02-26)	612d18626504c4100547ecdd0f8029b7b3fdfb9c

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
3p3.u23	4096	4211331f	8767ef6b1cbb032a89a78bdb77bb7dbc1c187974	z80	0	good	no		r3.3

chip

type	tag	name	clock
cpu	z80	Zilog Z80	2000000
cpu	source_nl	Netlist CPU Device	1000000000
audio	contour_0	OTA-based Envelope Generator
audio	contour_comp_0	Stream comparator
audio	contour_1	OTA-based Envelope Generator
audio	contour_comp_1	Stream comparator

device_ref

tag	name
:z80	z80
:nvram	nvram
:lfo_timer	timer
:contour_0	va_ota_eg
:contour_comp_0	va_comparator
:contour_1	va_ota_eg
:contour_comp_1	va_comparator
:source_nl	netlist_cpu
:source_nl:cntr_range_0	nl_analog_in
:source_nl:cntr_rate_0	nl_analog_in
:source_nl:cntr_cv_0	nl_analog_out
:source_nl:cntr_range_1	nl_analog_in
:source_nl:cntr_rate_1	nl_analog_in
:source_nl:cntr_cv_1	nl_analog_out
:source_nl:lfo_range	nl_analog_in
:source_nl:lfo_rate	nl_analog_in
:source_nl:lfo_cv	nl_analog_out

adjuster

name	default
FILTER_CONTOUR_RANGE	50
LOUDNESS_CONTOUR_RANGE	50
LFO RANGE	0

biosset

name	description	default
r3.3	Rev 3.3	yes

sound

channels
0

feature

type	status	overall
sound	unemulated
tape	unemulated

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
positional				no	0	240	25	3

port, analog

port_tag	analog_masks
:button_group_a_0
:button_group_a_1
:button_group_a_2
:button_group_a_3
:button_group_a_4
:button_group_a_5
:button_group_b_0
:button_group_b_1
:button_group_b_2
:button_group_b_3
:button_group_b_4
:button_group_b_5
:contour_range_0
:contour_range_1
:incremental_controller	255
:keyboard_oct_1
:keyboard_oct_2
:keyboard_oct_3
:keyboard_oct_4
:lfo_range
:octave_buttons
:trigger_in
