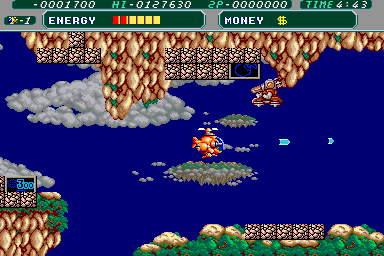

Mr. HELI no Daibouken (Japan) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mrheli	irem/m72.cpp		no	no	no	yes	Mr. HELI no Daibouken (Japan)	1987	Irem	bchopper	bchopper

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	384	256	55.017606	8000000	512	64	448	284	0	256	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no	preliminary

rom

name	size	crc	sha1	region	offset	status	optional	merge
mh_c-h0-.ic40	65536	e2ca5646	9f4fe2f0a45233325bd9336cabb925a1f625453b	maincpu	1	good	no
mh_c-l0-.ic37	65536	643e23cd	66998a6dfc7ef538540986b61d2414a5ef250d0d	maincpu	0	good	no
mh_c-h1-.ic41	65536	8974e84d	39e05c80e805dde45f2fc5fc429b75f9b599089c	maincpu	20001	good	no
mh_c-l1-.ic36	65536	5f8bda69	48629d617bd48c9de9c6a567fb203258a56fdbbd	maincpu	20000	good	no
mh_c-h3-.ic43	65536	143f596e	f9d444eebcd53dac925d14b7a2858803b7fd9ce2	maincpu	60001	good	no
mh_c-l3-.ic34	65536	c0982536	45399f8d0577c6e2a277a69303954ce5d2de7c07	maincpu	60000	good	no
mh_c-pr-.ic1	4096	897dc4ee	05a24bf76e8fa9ca96ba9376cbf44d299df04138	mcu	0	good	no
mh_c-00.ic53	131072	dec4e121	92169b523f1600e994e016dc1959a52958e1d89d	sprites	0	good	no
mh_c-10.ic51	131072	7aaa151e	efd980bb2eed7084354b7a4aa2f733cd2f876741	sprites	20000	good	no
mh_c-20.ic49	131072	eae0de74	3a2469c0eeb18131f989807afb50228f57ccea30	sprites	40000	good	no
mh_c-30.ic47	131072	01d5052f	5d5e70913bb7af48193c70209595f27a64fa6cac	sprites	60000	good	no
mh_b-a0.ic21	65536	6a0db256	fa3a2dc03da5bbe06a9c9b3d4ed4fddb47c469ac	tiles0	0	good	no
mh_b-a1.ic22	65536	14ec9795	4842e076115efe9daf00dab8f61516d28c19baae	tiles0	10000	good	no
mh_b-a2.ic20	65536	dfcb510e	2387cde4ec0bae176486e1f7541103fd557fe255	tiles0	20000	good	no
mh_b-a3.ic23	65536	957e329b	9d48a0b84915e1cef0b0311a3581991dc83ee199	tiles0	30000	good	no
mh_b-b0-.ic26	65536	b5b95776	4685b56071b916ce712c45f24da8068dd7e40ed1	tiles1	0	good	no	mh_b-b0-.ic26
mh_b-b1-.ic27	65536	74ca16ee	7984bc9a0b46e1b4a8ecac7528d57606305aad73	tiles1	10000	good	no	mh_b-b1-.ic27
mh_b-b2-.ic25	65536	b82cca04	c12b95be311205181b01d15021bcf9f01ed3e0a3	tiles1	20000	good	no	mh_b-b2-.ic25
mh_b-b3-.ic24	65536	a7afc920	92c75463ada39184e731b82ef2883ae6f1f67482	tiles1	30000	good	no	mh_b-b3-.ic24
mh_c-v0-b.ic44	65536	d0c27e58	fec76217cc0c04c723989c3ec127a2bd33d64c60	samples	0	good	no	mh_c-v0-b.ic44
m72_a-8l-.ic66	256	b460c438	00e20cf754b6fd5138ee4d2f6ec28dff9e292fe6	proms	0	good	no	m72_a-8l-.ic66
m72_a-9l-.ic75	256	a4f2c4bc	f13b0a4b52dcc6704063b676f09d83dcba170133	proms	100	good	no	m72_a-9l-.ic75
m72_a-3d-.ic11	279	8a3732ff	6e3039e7dc424cbef7156312fa1ce67d7b082d30	pals	0	good	no	m72_a-3d-.ic11
m72_a-4d-.ic19	279	56c29834	a66c589845f9995c673325f1161c687eb90d68c1	pals	200	good	no	m72_a-4d-.ic19
mh-c-3f-.ic13	279	2d774e1e	373c3cbfaf983961c17ebe96b5aff850f36cb30c	pals	400	good	no	mh-c-3f-.ic13

chip

type	tag	name	clock
cpu	maincpu	NEC V30	8000000
cpu	soundcpu	Zilog Z80	3579545
cpu	mcu	Intel 8751	8000000
audio	speaker	Speaker
audio	ymsnd	YM2151 OPM	3579545
audio	dac	8-Bit R-2R DAC

device_ref

name
v30
z80
pic8259
buffered_spriteram16
gfxdecode
palette
screen
speaker
generic_latch_8
rst_neg_buffer
m72_audio
ym2151
dac_8bit_r2r
mb8421_mb8431_16
generic_latch_8
generic_latch_8
i8751

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	4	8	no
joy	2	4	8	no

port, analog

port_tag	analog_masks
:DSW
:IN0
:IN1

dipswitch

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW	3

location

name	number	inverted
SW1	1	no
SW1	2	no

value

name	value	default
1	0	no
2	2	no
3	3	yes
4	1	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW	4

location

name	number	inverted
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	4	yes

Bonus Life

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Life	DSW	8

location

name	number	inverted
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
80K 200K 350K	8	yes
100K 250K 400K	0	no

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW	48	DSW	1024	eq	0

location

name	number	inverted
SW1	5	no
SW1	6	no

value

name	value	default
5 Coins/1 Credit	0	no
3 Coins/1 Credit	16	no
2 Coins/1 Credit	32	no
1 Coin/1 Credit	48	yes

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW	192	DSW	1024	eq	0

location

name	number	inverted
SW1	7	no
SW1	8	no

value

name	value	default
1 Coin/2 Credits	192	yes
1 Coin/3 Credits	128	no
1 Coin/5 Credits	64	no
1 Coin/6 Credits	0	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW	240	DSW	1024	ne	0

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default
6 Coins/1 Credit	160	no
5 Coins/1 Credit	176	no
4 Coins/1 Credit	192	no
3 Coins/1 Credit	208	no
8 Coins/3 Credits	16	no
2 Coins/1 Credit	224	no
5 Coins/3 Credits	32	no
3 Coins/2 Credits	48	no
1 Coin/1 Credit	240	yes
2 Coins/3 Credits	64	no
1 Coin/2 Credits	144	no
1 Coin/3 Credits	128	no
1 Coin/4 Credits	112	no
1 Coin/5 Credits	96	no
1 Coin/6 Credits	80	no
Free Play	0	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSW	256

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	256	yes
On	0	no

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	DSW	512

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Upright	0	yes
Cocktail	512	no

Coin Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Mode	DSW	1024

location

name	number	inverted
SW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Mode 1	1024	yes
Mode 2	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW	2048

location

name	number	inverted
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	2048	yes
Hard	0	no

Allow Continue

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Allow Continue	DSW	4096

location

name	number	inverted
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	4096	yes

Stop Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Stop Mode	DSW	8192

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8192	yes
On	0	no

Invulnerability

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Invulnerability	DSW	16384

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16384	yes
On	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSW	32768

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32768	yes
On	0	no
