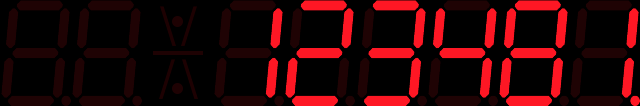

Mr. Mus-I-Cal - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mrmusical	handheld/hh_tms1k.cpp		no	no	no	yes	Mr. Mus-I-Cal	1978	Concept 2000

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
mp3206	1024	15013d4d	2bbc5599183381ad050b7518bca1babc579ee79d	maincpu	0	good	no
tms1000_common1_micro.pla	867	4becec19	3c8a9be0f00c88c81f378b76886c39b10304f330	maincpu:mpla	0	good	no
tms1000_mrmusical_output.pla	365	9652aa3b	be41e1588561875b362ba878098ede8299792166	maincpu:opla	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Texas Instruments TMS1000	325000
audio	mono	Speaker
audio	speaker	Filtered DAC

device_ref

name
tms1000
pla
pla
pwm_display
speaker
speaker_sound_device

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keypad		18		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:IN.2
:IN.3
:IN.4
:IN.5
:IN.6

configuration

Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Mode	IN.5	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
A	1	no
=	0	yes

Speaker

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Speaker	IN.6	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	1	yes
