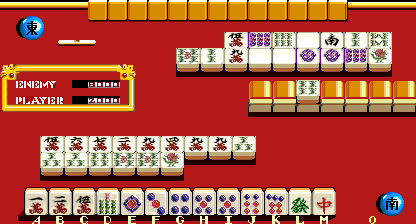

Mahjong Rokumeikan (Japan) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mrokumei	misc/homedata.cpp		no	no	no	yes	Mahjong Rokumeikan (Japan)	1988	Home Data

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	432	224	59.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
m81d01.bin	32768	6f81a78a	5e16327b04b065ed4e39a147b18711902dba6384	maincpu	0	good	no
m81a10.bin	131072	0866b2d3	37a726830476e372db906382e1d0601c461c7c10	audiocpu	0	good	no
m81a03.bin	131072	4f96e6d2	9e6375ee543215691b28c914a8374c1d75c6681f	gfx1	0	good	no
m81a40.bin	131072	f07c6a91	1e8b07817bb3661211b22c8c0ee35424b3ee8774	gfx2	0	good	no
m81a50.bin	131072	5ef0d7f2	9d0af693b95d941c4b5702c483aee9d33c2fb886	gfx2	20000	good	no
m81a41.bin	131072	9332b879	fc70a6acf816564c1c90c2f9aa644f702a38eae1	gfx2	40000	good	no
m81a51.bin	131072	dda3ae30	a0ba05cc46a4b2869ddf544c538e40a40f3babd5	gfx2	60000	good	no
m81b06.bin	32768	96665d39	9173791831555e69b8938d85340a08dd73012f8d	proms	0	good	no
m81b07.bin	32768	14f39690	821f9de1b28b9d7844fc1b002c7ee3bbdda7f905	proms	1	good	no
m81a08.bin	131072	dba706b9	467c8c3e12cd64002d2516dd117bc87d03448f49	blit_rom	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809E	2000000
cpu	audiocpu	Zilog Z80	4000000
audio	speaker	Speaker
audio	snsnd	SN76489A	4000000
audio	dac	8-Bit R-2R DAC

device_ref

name
mc6809e
z80
screen
gfxdecode
palette
speaker
generic_latch_8
sn76489a
dac_8bit_r2r

sound

channels
1

feature

type	status	overall
graphics	imperfect

input

players	coins	service	tilt
2	1	yes	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
mahjong	1	20		no
mahjong	2	20		no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:IN0
:KEY0
:KEY1
:KEY2
:KEY3
:KEY4
:KEY5
:KEY6
:KEY7
:KEY8
:KEY9

dipswitch

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW1	1

location

name	number	inverted
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	no
On	0	yes

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW1	2

location

name	number	inverted
SW1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW1	12

location

name	number	inverted
SW1	6	no
SW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3 Coins/1 Credit	0	no
2 Coins/1 Credit	4	no
1 Coin/1 Credit	12	yes
1 Coin/2 Credits	8	no

Initial Score

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Initial Score	DSW1	16

location

name	number	inverted
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1000	16	yes
2000	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW1	224

location

name	number	inverted
SW1	3	no
SW1	2	no
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 (easiest)	224	no
2	192	no
3	160	no
4	128	yes
5	96	no
6	64	no
7	32	no
8 (hardest)	0	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSW2	1

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Girl Voice

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Girl Voice	DSW2	2

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	4

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	8

location

name	number	inverted
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	16

location

name	number	inverted
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	32

location

name	number	inverted
SW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	64

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	128

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Freeze?

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Freeze?	IN0	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no
