mame (0289) • machine mu100r • MU100 Rackable version

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mu100r	yamaha/ymmu100.cpp		no	no	no	yes	MU100 Rackable version	1997	Yamaha	mu100	mu100

snap

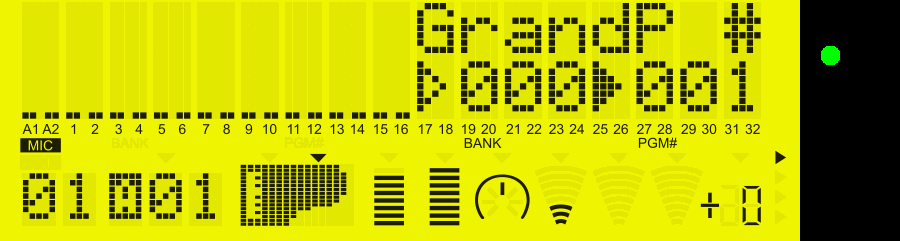

MU100 Rackable version png snap

MU100 Rackable version jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
mu100r	28523	29/12/2025 11:31:36	900	241	96	96	0	Format24bppRgb	305:MAME 0.176 (Jul 27 2016)	d5091487be5a1622ac26254c761d219b8f3b367f

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
lcd:screen	svg	0	1280	386	60.000000	29644800	1280	0	1280	386	0	386	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
xs518b0.ic34	4194304	2550d44f	fd3cce228c7d389a2fde25c808a5b26080588cba	swp30	0	good	no	xs518b0.ic34
xs743b0.ic35	4194304	a9109a6c	a67bb49378a38a2d809bd717d286e18bc6496db0	swp30	2	good	no	xs743b0.ic35
xt445a0-828.ic36	2097152	225c2280	23b5e046fd2e2ac01af3e6dc6357c5c6547b286b	swp30	800000	good	no	xt445a0-828.ic36
xt461a0-829.ic37	2097152	a1d138a3	46a7a7225cd7e1818ba551325d2af5ac1bf5b2bf	swp30	800002	good	no	xt461a0-829.ic37
xt462a0.ic39	4194304	2e82cbd4	d1f0e2713bf2cca9156c562e23fcce4fa5d7cfb3	swp30	1000000	good	no	xt462a0.ic39
xt463a0.ic38	4194304	cce5f8d3	bdca8c5158f452f2b5535c7d658c9b22c6d66048	swp30	1000002	good	no	xt463a0.ic38
xt71420.ic11	2097152	0e5b3bae	3148c5bd59a3d00809d3ab1921216215fe2582c5	maincpu	0	good	no	xt71420.ic11	v105
xt714e0.ic11	2097152	2d8cf9fc	a81f988a315efe92106f1e7d407cd3626c4f843f	maincpu	0	good	no	xt714e0.ic11	v103
xt714h0.ic11	2097152	aa96ab38	ec39eeab55d7d55b4f6d2b4b4cac2a01f98db8a0	maincpu	0	good	no	xt714h0.ic11	v106
xu50720.ic11	2097152	1126a8a4	e90b8bd9d14297da26ba12f4d9a4f2d22cd7d34a	maincpu	0	good	no	xu50720.ic11	v111

chip

type	tag	name	clock
cpu	maincpu	Hitachi H8S/2655	16000000
cpu	swp30	Yamaha SWP30 sound chip	33868800
audio	ext1	PLG1x0 extension connector
audio	speaker	Speaker
audio	swp30	Yamaha SWP30 sound chip	33868800
audio	ext2	PLG1x0 extension connector

device_ref

tag	name
:maincpu	h8s2655
:maincpu:intc	h8s_intc
:maincpu:adc	h8_adc_2655
:maincpu:dma	h8s_dma
:maincpu:dma:0	h8s_dma_channel
:maincpu:dma:1	h8s_dma_channel
:maincpu:port1	h8_digital_port
:maincpu:port2	h8_digital_port
:maincpu:port3	h8_digital_port
:maincpu:port4	h8_digital_port
:maincpu:port5	h8_digital_port
:maincpu:port6	h8_digital_port
:maincpu:porta	h8_digital_port
:maincpu:portb	h8_digital_port
:maincpu:portc	h8_digital_port
:maincpu:portd	h8_digital_port
:maincpu:porte	h8_digital_port
:maincpu:portf	h8_digital_port
:maincpu:portg	h8_digital_port
:maincpu:timer8_0	h8h_timer8_channel
:maincpu:timer8_1	h8h_timer8_channel
:maincpu:timer16	h8_timer16
:maincpu:timer16:0	h8s_timer16_channel
:maincpu:timer16:1	h8s_timer16_channel
:maincpu:timer16:2	h8s_timer16_channel
:maincpu:timer16:3	h8s_timer16_channel
:maincpu:timer16:4	h8s_timer16_channel
:maincpu:timer16:5	h8s_timer16_channel
:maincpu:sci0	h8_sci
:maincpu:sci1	h8_sci
:maincpu:sci2	h8_sci
:maincpu:watchdog	h8_watchdog
:ext1	plg1x0_connector
:speaker	speaker
:swp30	swp30
:mdin_a	midi_port
:mdin_a:midiin	midiin_port
:mdin_a:midiin:midiinimg	midiin
:mdin_b	midi_port
:mdin_b:midiin	midiin_port
:mdin_b:midiin:midiinimg	midiin
:mdout	midi_port
:mdout:midiout	midiout_port
:mdout:midiout:midioutimg	midiout
:lcd	mulcd
:lcd:screen	screen
:ext2	plg1x0_connector

biosset

name	description	default
v111	xu50720 (v1.11, Aug. 3, 1999)	yes
v106	xt714h0 (v1.06, Oct. 14, 1997)	no
v105	xt71420 (v1.05, Sep. 19, 1997)	no
v103	xt714e0 (v1.03, Jul. 25, 1997)	no

sound

channels
1

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
midiin	mdin_a:midiin:midiinimg				midiin1	min1
midiin	mdin_b:midiin:midiinimg				midiin2	min2
midiout	mdout:midiout:midioutimg				midiout	mout

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
midiin	mdin_a:midiin:midiinimg				mid, syx
midiin	mdin_b:midiin:midiinimg				mid, syx
midiout	mdout:midiout:midioutimg				mid

input

players	coins	service	tilt
1		no	no

port, analog

port_tag	analog_masks
:P7
:P8
:mdin_a:midiin:midiinimg:CFG
:mdin_b:midiin:midiinimg:CFG

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
ext1	plg150ap	plg150_ap	no
ext1	plg100vl	plg100_vl	no
mdin_a	midiin	midiin_port	yes
mdin_b	midiin	midiin_port	yes
mdout	midiout	midiout_port	yes
ext2	plg150ap	plg150_ap	no
ext2	plg100vl	plg100_vl	no

configuration

MIDI file mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
MIDI file mode	mdin_a:midiin:midiinimg:CFG	255

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Multi	255	yes
Poly: Channel 1	0	no
Poly: Channel 2	1	no
Poly: Channel 3	2	no
Poly: Channel 4	3	no
Poly: Channel 5	4	no
Poly: Channel 6	5	no
Poly: Channel 7	6	no
Poly: Channel 8	7	no
Poly: Channel 9	8	no
Poly: Channel 10	9	no
Poly: Channel 11	10	no
Poly: Channel 12	11	no
Poly: Channel 13	12	no
Poly: Channel 14	13	no
Poly: Channel 15	14	no
Poly: Channel 16	15	no

MIDI file mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
MIDI file mode	mdin_b:midiin:midiinimg:CFG	255

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Multi	255	yes
Poly: Channel 1	0	no
Poly: Channel 2	1	no
Poly: Channel 3	2	no
Poly: Channel 4	3	no
Poly: Channel 5	4	no
Poly: Channel 6	5	no
Poly: Channel 7	6	no
Poly: Channel 8	7	no
Poly: Channel 9	8	no
Poly: Channel 10	9	no
Poly: Channel 11	10	no
Poly: Channel 12	11	no
Poly: Channel 13	12	no
Poly: Channel 14	13	no
Poly: Channel 15	14	no
Poly: Channel 16	15	no
