mame (0289) • machine mu128 • MU128

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mu128	yamaha/ymmu128.cpp		no	no	no	yes	MU128	1998	Yamaha

snap

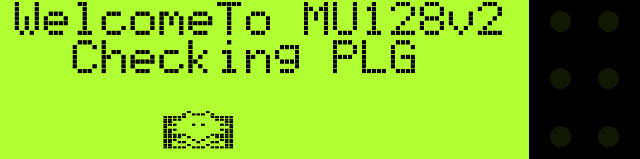

MU128 png snap

MU128 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
mu128	9408	29/12/2025 11:31:36	640	159	96	96	0	Format24bppRgb	305:MAME 0.264.0 (Mar 27 2024)	49eb40c57d6521bc4a6bae512d35137d4e9dbd8c

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
lcd:screen	svg	0	1280	386	60.000000	29644800	1280	0	1280	386	0	386	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
mu128-v2.00-h.bin	1048576	2891487b	8ed4a6929c66fcb5248e16288dfaf56a3286aaf8	maincpu	0	good	no		v200
mu128-v2.00-l.bin	1048576	cc236dc4	e1ff3387968e89f5bc5df3e15cd0d6039104acd0	maincpu	2	good	no		v200
xv217c0.ic27	1048576	f4ba61f1	381e1d146c4e693a21f6e6e4ea2a8b9f6e3033ef	maincpu	0	good	no		v106
xv224c0.ic25	1048576	079bfcf0	56d69f3214899fa25ef5e9ea6c2bbf0c3d378123	maincpu	2	good	no		v106
xv364a0.ic53	8388608	cda1afd6	e7098246b33c3cf22ed8cc15ed6383f8a06d17e9	swp30	0	good	no
xv365a0.ic54	8388608	10985ed0	d45a2e85859e05046f3ede8317a9bb0b88898116	swp30	2	good	no
xv366a0.ic57	4194304	781dfac6	e6b8b7cf95e4e9552001450570fcea87282db1e8	swp30	1000000	good	no
xv376a0.ic58	4194304	91a7533b	c30888603fd5db367d14553763f0a3f392c5427c	swp30	1000002	good	no

chip

type	tag	name	clock
cpu	maincpu	Hitachi SH-2 (SH7043)	28000000
cpu	swp30m	Yamaha SWP30 sound chip	33868800
cpu	swp30s	Yamaha SWP30 sound chip	33868800
audio	speaker	Speaker
audio	swp30m	Yamaha SWP30 sound chip	33868800
audio	swp30s	Yamaha SWP30 sound chip	33868800

device_ref

tag	name
:maincpu	sh7043
:maincpu:intc	sh_intc
:maincpu:adc0	sh_adc_hs
:maincpu:bsc	sh_bsc
:maincpu:cmt	sh_cmt
:maincpu:dmac	sh_dmac
:maincpu:dmac:0	sh_dmac_channel
:maincpu:dmac:1	sh_dmac_channel
:maincpu:dmac:2	sh_dmac_channel
:maincpu:dmac:3	sh_dmac_channel
:maincpu:mtu	sh_mtu
:maincpu:mtu:0	sh_mtu_channel
:maincpu:mtu:1	sh_mtu_channel
:maincpu:mtu:2	sh_mtu_channel
:maincpu:mtu:3	sh_mtu_channel
:maincpu:mtu:4	sh_mtu_channel
:maincpu:porta	sh_port32
:maincpu:portb	sh_port16
:maincpu:portc	sh_port16
:maincpu:portd	sh_port32
:maincpu:porte	sh_port16
:maincpu:portf	sh_port16
:maincpu:sci0	sh_sci
:maincpu:sci1	sh_sci
:ram	nvram
:lcd	mulcd
:lcd:screen	screen
:speaker	speaker
:swp30m	swp30
:swp30s	swp30
:irq0	ipt_merge_any_hi
:sci	i8251
:mdin_a	midi_port
:mdin_a:midiin	midiin_port
:mdin_a:midiin:midiinimg	midiin
:mdin_b	midi_port
:mdin_b:midiin	midiin_port
:mdin_b:midiin:midiinimg	midiin
:mdout	midi_port
:mdout:midiout	midiout_port
:mdout:midiout:midioutimg	midiout

biosset

name	description	default
v200	Upgrade package (Ver2.00 99-MAY-21)	yes
v106	c0 (Ver1.06 98-OCT-01)	no

sound

channels
1

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
midiin	mdin_a:midiin:midiinimg				midiin1	min1
midiin	mdin_b:midiin:midiinimg				midiin2	min2
midiout	mdout:midiout:midioutimg				midiout	mout

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
midiin	mdin_a:midiin:midiinimg				mid, syx
midiin	mdin_b:midiin:midiinimg				mid, syx
midiout	mdout:midiout:midioutimg				mid

input

players	coins	service	tilt
1		no	no

port, analog

port_tag	analog_masks
:mdin_a:midiin:midiinimg:CFG
:mdin_b:midiin:midiinimg:CFG

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
mdin_a	midiin	midiin_port	yes
mdin_b	midiin	midiin_port	yes
mdout	midiout	midiout_port	yes

configuration

MIDI file mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
MIDI file mode	mdin_a:midiin:midiinimg:CFG	255

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Multi	255	yes
Poly: Channel 1	0	no
Poly: Channel 2	1	no
Poly: Channel 3	2	no
Poly: Channel 4	3	no
Poly: Channel 5	4	no
Poly: Channel 6	5	no
Poly: Channel 7	6	no
Poly: Channel 8	7	no
Poly: Channel 9	8	no
Poly: Channel 10	9	no
Poly: Channel 11	10	no
Poly: Channel 12	11	no
Poly: Channel 13	12	no
Poly: Channel 14	13	no
Poly: Channel 15	14	no
Poly: Channel 16	15	no

MIDI file mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
MIDI file mode	mdin_b:midiin:midiinimg:CFG	255

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Multi	255	yes
Poly: Channel 1	0	no
Poly: Channel 2	1	no
Poly: Channel 3	2	no
Poly: Channel 4	3	no
Poly: Channel 5	4	no
Poly: Channel 6	5	no
Poly: Channel 7	6	no
Poly: Channel 8	7	no
Poly: Channel 9	8	no
Poly: Channel 10	9	no
Poly: Channel 11	10	no
Poly: Channel 12	11	no
Poly: Channel 13	12	no
Poly: Channel 14	13	no
Poly: Channel 15	14	no
Poly: Channel 16	15	no
