mame (0289) • machine mu15 • MU15

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mu15	yamaha/ymmu15.cpp		no	no	no	yes	MU15	1998	Yamaha

snap

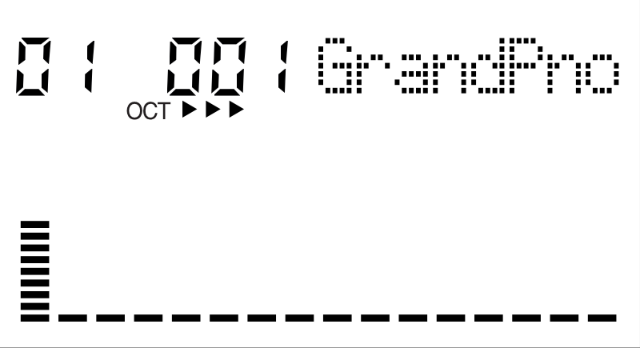

MU15 png snap

MU15 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
mu15	16240	29/12/2025 11:31:36	640	348	96	96	0	Format24bppRgb	305:MAME 0.264.0 (Mar 27 2024)	bb03eb32977ac1bcd7da4ff269599d2fd8813fbb

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
lcd:screen	svg	0	800	435	60.000000	20880000	800	0	800	435	0	435	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
xv684c0.bin	4194304	e4046aef	e286f83ed1fb90e0f98fe565b58112da18f88b5a	swx00	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Yamaha SWX00	8467200
audio	maincpu	Yamaha SWX00	8467200
audio	maincpu:swx00	Yamaha SWX00 (sound subsystem)
audio	speaker	Speaker

device_ref

tag	name
:maincpu	swx00
:maincpu:intc	h8s_intc
:maincpu:adc	h8_adc_2357
:maincpu:dma	h8s_dma
:maincpu:dma:0	h8s_dma_channel
:maincpu:dma:1	h8s_dma_channel
:maincpu:port1	h8_digital_port
:maincpu:port2	h8_digital_port
:maincpu:port3	h8_digital_port
:maincpu:port4	h8_digital_port
:maincpu:port5	h8_digital_port
:maincpu:port6	h8_digital_port
:maincpu:porta	h8_digital_port
:maincpu:portb	h8_digital_port
:maincpu:portc	h8_digital_port
:maincpu:portd	h8_digital_port
:maincpu:porte	h8_digital_port
:maincpu:portf	h8_digital_port
:maincpu:portg	h8_digital_port
:maincpu:timer8_0	h8h_timer8_channel
:maincpu:timer8_1	h8h_timer8_channel
:maincpu:timer16	h8_timer16
:maincpu:timer16:0	h8s_timer16_channel
:maincpu:timer16:1	h8s_timer16_channel
:maincpu:timer16:2	h8s_timer16_channel
:maincpu:timer16:3	h8s_timer16_channel
:maincpu:timer16:4	h8s_timer16_channel
:maincpu:timer16:5	h8s_timer16_channel
:maincpu:watchdog	h8_watchdog
:maincpu:sci0	h8_sci
:maincpu:sci1	h8_sci
:maincpu:sci2	h8_sci
:maincpu:swx00	swx00_sound
:lcd	mu5lcd
:lcd:lcd	lc7985
:lcd:screen	screen
:speaker	speaker
:mdin	midi_port
:mdin:midiin	midiin_port
:mdin:midiin:midiinimg	midiin
:mdout	midi_port
:mdout:midiout	midiout_port
:mdout:midiout:midioutimg	midiout

sound

channels
1

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
midiin	mdin:midiin:midiinimg				midiin	min
midiout	mdout:midiout:midioutimg				midiout	mout

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
midiin	mdin:midiin:midiinimg				mid, syx
midiout	mdout:midiout:midioutimg				mid

input

players	coins	service	tilt
1		no	no

port, analog

port_tag	analog_masks
:SA
:SB
:SC
:SD
:SE
:SF
:mdin:midiin:midiinimg:CFG

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
mdin	midiin	midiin_port	yes
mdout	midiout	midiout_port	yes

configuration

MIDI file mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
MIDI file mode	mdin:midiin:midiinimg:CFG	255

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Multi	255	yes
Poly: Channel 1	0	no
Poly: Channel 2	1	no
Poly: Channel 3	2	no
Poly: Channel 4	3	no
Poly: Channel 5	4	no
Poly: Channel 6	5	no
Poly: Channel 7	6	no
Poly: Channel 8	7	no
Poly: Channel 9	8	no
Poly: Channel 10	9	no
Poly: Channel 11	10	no
Poly: Channel 12	11	no
Poly: Channel 13	12	no
Poly: Channel 14	13	no
Poly: Channel 15	14	no
Poly: Channel 16	15	no
