mame (0289) • machine mu5 • MU-5

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mu5	yamaha/ymmu5.cpp		no	no	no	yes	MU-5	1994	Yamaha

snap

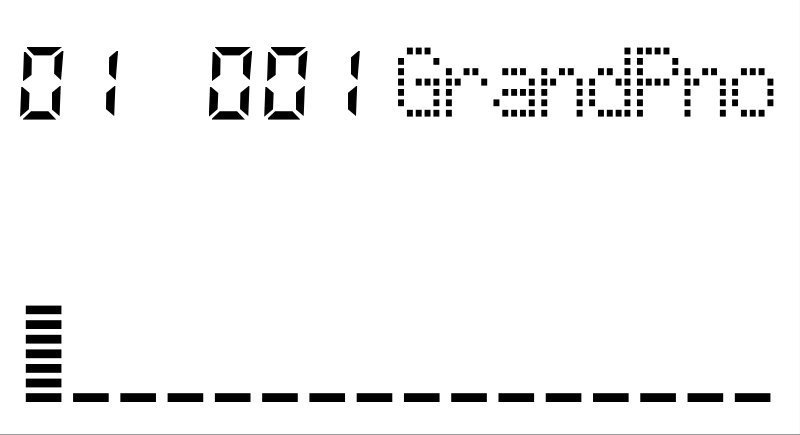

MU-5 png snap

MU-5 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
mu5	12586	29/12/2025 11:31:36	800	435	96	96	0	Format24bppRgb	305:MAME 0.228 (Jan 27 2021)	b881da612feb2466d4f31317ffc1bb48235ef21d

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
lcd:screen	svg	0	800	435	60.000000	20880000	800	0	800	435	0	435	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
yamaha_mu5_program_xq201a0.bin	131072	e9b3ec26	cfee69699de78e2792dac24d428a120021ba147b	maincpu	0	good	no
yamaha_mu5_waverom_xp50280-801.bin	2097152	e0913030	369f8df4942b6717c142ca8c4913e556dafae187	ymw258	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Hitachi H8/3002	10000000
audio	speaker	Speaker
audio	ymw258	Yamaha YMW-258-F	9400000

device_ref

tag	name
:maincpu	h83002
:maincpu:intc	h8h_intc
:maincpu:adc	h8_adc_3337
:maincpu:dma	h8h_dma
:maincpu:dma:0	h8h_dma_channel
:maincpu:dma:1	h8h_dma_channel
:maincpu:port4	h8_digital_port
:maincpu:port6	h8_digital_port
:maincpu:port7	h8_digital_port
:maincpu:port8	h8_digital_port
:maincpu:port9	h8_digital_port
:maincpu:porta	h8_digital_port
:maincpu:portb	h8_digital_port
:maincpu:timer16	h8_timer16
:maincpu:timer16:0	h8h_timer16_channel
:maincpu:timer16:1	h8h_timer16_channel
:maincpu:timer16:2	h8h_timer16_channel
:maincpu:timer16:3	h8h_timer16_channel
:maincpu:timer16:4	h8h_timer16_channel
:maincpu:sci0	h8_sci
:maincpu:sci1	h8_sci
:maincpu:watchdog	h8_watchdog
:lcd	mu5lcd
:lcd:lcd	lc7985
:lcd:screen	screen
:speaker	speaker
:ymw258	ymw258f
:mdin	midi_port
:mdin:midiin	midiin_port
:mdin:midiin:midiinimg	midiin
:mdout	midi_port
:mdout:midiout	midiout_port
:mdout:midiout:midioutimg	midiout

sound

channels
1

feature

type	status	overall
sound		imperfect

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
midiin	mdin:midiin:midiinimg				midiin	min
midiout	mdout:midiout:midioutimg				midiout	mout

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
midiin	mdin:midiin:midiinimg				mid, syx
midiout	mdout:midiout:midioutimg				mid

input

players	coins	service	tilt
1		no	no

port, analog

port_tag	analog_masks
:SA
:SB
:SC
:SD
:SE
:SF
:mdin:midiin:midiinimg:CFG

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
mdin	midiin	midiin_port	yes
mdout	midiout	midiout_port	yes

configuration

MIDI file mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
MIDI file mode	mdin:midiin:midiinimg:CFG	255

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Multi	255	yes
Poly: Channel 1	0	no
Poly: Channel 2	1	no
Poly: Channel 3	2	no
Poly: Channel 4	3	no
Poly: Channel 5	4	no
Poly: Channel 6	5	no
Poly: Channel 7	6	no
Poly: Channel 8	7	no
Poly: Channel 9	8	no
Poly: Channel 10	9	no
Poly: Channel 11	10	no
Poly: Channel 12	11	no
Poly: Channel 13	12	no
Poly: Channel 14	13	no
Poly: Channel 15	14	no
Poly: Channel 16	15	no
