mame (0289) • machine mu80 • MU80

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mu80	yamaha/ymmu80.cpp		no	no	no	yes	MU80	1994	Yamaha

snap

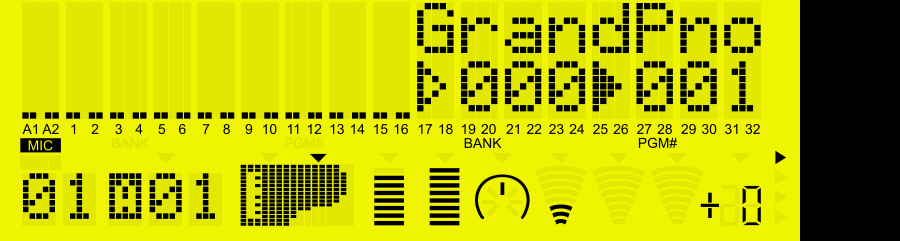

MU80 png snap

MU80 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
mu80	28801	29/12/2025 11:31:36	900	241	96	96	0	Format24bppRgb	305:MAME 0.208 (Mar 27 2019)	48132754f43876d9a314e1d75cfb763661913994

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
lcd:screen	svg	0	1280	386	60.000000	29644800	1280	0	1280	386	0	386	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
xq012b0-822.bin	2097152	cb454418	43dab164de5497df9203a1ac9e7ece478276e46d	swp20	0	good	no
xq013b0-823.bin	2097152	f14117b4	fc603b7b7a3f3500521d4d9638a9562f90cc0354	swp20	200000	good	no
xq089b0-824.bin	2097152	0adbf203	ecc4c1cfb123d12bc3dad092c31bddc707bb4d07	swp20	400000	good	no
xq090b0-825.bin	2097152	34c422b3	14073c41fbdf4faa9da9c83dafe4dc2d6b01b53b	swp20	600000	good	no
xq556a0.ic8	524288	c31074c0	a11bd4523cd8ff1e1744078c3b4c18112b73c61e	mu80cpu	0	good	no

chip

type	tag	name	clock
cpu	mu80cpu	Hitachi H8/3002	12000000
audio	speaker	Speaker
audio	swp20_0	Yamaha SWP20 sound chip	11289600
audio	swp20_1	Yamaha SWP20 sound chip	11289600

device_ref

tag	name
:mu80cpu	h83002
:mu80cpu:intc	h8h_intc
:mu80cpu:adc	h8_adc_3337
:mu80cpu:dma	h8h_dma
:mu80cpu:dma:0	h8h_dma_channel
:mu80cpu:dma:1	h8h_dma_channel
:mu80cpu:port4	h8_digital_port
:mu80cpu:port6	h8_digital_port
:mu80cpu:port7	h8_digital_port
:mu80cpu:port8	h8_digital_port
:mu80cpu:port9	h8_digital_port
:mu80cpu:porta	h8_digital_port
:mu80cpu:portb	h8_digital_port
:mu80cpu:timer16	h8_timer16
:mu80cpu:timer16:0	h8h_timer16_channel
:mu80cpu:timer16:1	h8h_timer16_channel
:mu80cpu:timer16:2	h8h_timer16_channel
:mu80cpu:timer16:3	h8h_timer16_channel
:mu80cpu:timer16:4	h8h_timer16_channel
:mu80cpu:sci0	h8_sci
:mu80cpu:sci1	h8_sci
:mu80cpu:watchdog	h8_watchdog
:lcd	mulcd
:lcd:screen	screen
:speaker	speaker
:swp20_0	swp20
:swp20_1	swp20
:meg	meg
:mdin_a	midi_port
:mdin_a:midiin	midiin_port
:mdin_a:midiin:midiinimg	midiin
:mdin_b	midi_port
:mdin_b:midiin	midiin_port
:mdin_b:midiin:midiinimg	midiin
:mdout	midi_port
:mdout:midiout	midiout_port
:mdout:midiout:midioutimg	midiout

sound

channels
1

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
midiin	mdin_a:midiin:midiinimg				midiin1	min1
midiin	mdin_b:midiin:midiinimg				midiin2	min2
midiout	mdout:midiout:midioutimg				midiout	mout

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
midiin	mdin_a:midiin:midiinimg				mid, syx
midiin	mdin_b:midiin:midiinimg				mid, syx
midiout	mdout:midiout:midioutimg				mid

input

players	coins	service	tilt
1		no	no

port, analog

port_tag	analog_masks
:P7
:P8
:mdin_a:midiin:midiinimg:CFG
:mdin_b:midiin:midiinimg:CFG

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
mdin_a	midiin	midiin_port	yes
mdin_b	midiin	midiin_port	yes
mdout	midiout	midiout_port	yes

configuration

MIDI file mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
MIDI file mode	mdin_a:midiin:midiinimg:CFG	255

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Multi	255	yes
Poly: Channel 1	0	no
Poly: Channel 2	1	no
Poly: Channel 3	2	no
Poly: Channel 4	3	no
Poly: Channel 5	4	no
Poly: Channel 6	5	no
Poly: Channel 7	6	no
Poly: Channel 8	7	no
Poly: Channel 9	8	no
Poly: Channel 10	9	no
Poly: Channel 11	10	no
Poly: Channel 12	11	no
Poly: Channel 13	12	no
Poly: Channel 14	13	no
Poly: Channel 15	14	no
Poly: Channel 16	15	no

MIDI file mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
MIDI file mode	mdin_b:midiin:midiinimg:CFG	255

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Multi	255	yes
Poly: Channel 1	0	no
Poly: Channel 2	1	no
Poly: Channel 3	2	no
Poly: Channel 4	3	no
Poly: Channel 5	4	no
Poly: Channel 6	5	no
Poly: Channel 7	6	no
Poly: Channel 8	7	no
Poly: Channel 9	8	no
Poly: Channel 10	9	no
Poly: Channel 11	10	no
Poly: Channel 12	11	no
Poly: Channel 13	12	no
Poly: Channel 14	13	no
Poly: Channel 15	14	no
Poly: Channel 16	15	no
