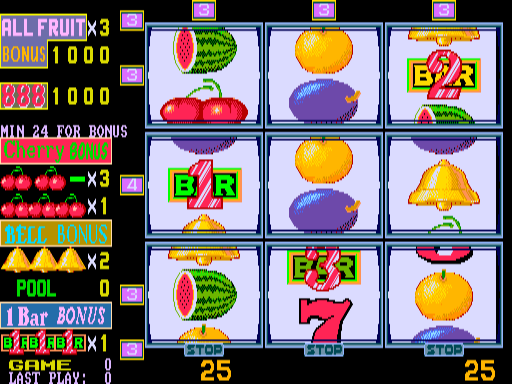

New Cherry '96 Special Edition (v3.61, DK PCB) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
nc96j	igs/goldstar.cpp		no	no	no	yes	New Cherry '96 Special Edition (v3.61, DK PCB)	1996	Amcoe	nc96	nc96

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	224	60.000000	7864320	512	0	512	256	16	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
chse361.bin	65536	0b28366c	560da2dfb1895e1481399d62a35d8a106a0b8e0a	maincpu	0	good	no
chseh e9e3	65536	fb90df1d	84ec1f40a014a0043b3c3c999428dd274caba1b8	graphics	0	good	no
chsel 0e11	65536	e0166f3e	27e180fe6e03f48771b540e34415eee54951788f	graphics	10000	good	no
82s129a.u84	256	fafc43ad	e94592b83f19e5f9b6205473c1e06b36405ebfc2	proms	0	good	no	82s129a.u84
82s129a.u79	256	05224f73	051c3ee9c63f5436e4f6c355fc308f37910a88ef	proms	100	good	no	82s129a.u79

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3000000
audio	mono	Speaker
audio	aysnd	AY-3-8910A PSG	1500000

device_ref

name
z80
i8255
i8255
screen
gfxdecode
palette
nvram
speaker
ay8910

sound

channels
1

input

players	coins	service	tilt
1	2	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
gambling		9		no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:DSW3
:DSW4
:DSW5
:IN0
:IN1
:IN2

dipswitch

Game Level (Difficulty)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game Level (Difficulty)	DSW1	7

location

name	number	inverted
DSW1	1	no
DSW1	2	no
DSW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Level 1 (Easiest)	7	no
Level 2	6	no
Level 3	5	no
Level 4	4	no
Level 5	3	yes
Level 6	2	no
Level 7	1	no
Level 8 (Hardest)	0	no

Maximum Play

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Maximum Play	DSW1	56

location

name	number	inverted
DSW1	4	no
DSW1	5	no
DSW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
10	0	no	DSW5	16	eq	0
20	8	no	DSW5	16	eq	0
30	16	no	DSW5	16	eq	0
40	24	no	DSW5	16	eq	0
8	0	no	DSW5	16	eq	16
16	8	no	DSW5	16	eq	16
24	16	no	DSW5	16	eq	16
32	24	no	DSW5	16	eq	16
40	32	no
48	40	no
64	48	no
80	56	yes

Minimum Play for Bonus

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Minimum Play for Bonus	DSW1	192

location

name	number	inverted
DSW1	7	no
DSW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
10	0	no	DSW5	16	eq	0
20	64	no	DSW5	16	eq	0
30	128	yes	DSW5	16	eq	0
40	192	no	DSW5	16	eq	0
8	0	no	DSW5	16	eq	16
16	64	no	DSW5	16	eq	16
24	128	yes	DSW5	16	eq	16
32	192	no	DSW5	16	eq	16

Double Up Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game	DSW2	1

location

name	number	inverted
DSW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	1	yes

Skill Spinning

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Skill Spinning	DSW2	2

location

name	number	inverted
DSW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	2	yes

Coin In

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin In	DSW2	28

location

name	number	inverted
DSW2	3	no
DSW2	4	no
DSW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	0	no
1 Coin/2 Credits	4	no
1 Coin/4 Credits	8	no
1 Coin/5 Credits	12	no
1 Coin/10 Credits	16	yes
1 Coin/20 Credits	20	no
1 Coin/25 Credits	24	no
1 Coin/100 Credits	28	no

Note In Value

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Note In Value	DSW2	96

location

name	number	inverted
DSW2	6	no
DSW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
100	0	yes
200	32	no
500	64	no
1000	96	no

WARNING: Always Off

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
WARNING: Always Off	DSW2	128

location

name	number	inverted
DSW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

Minimum Play to Start

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Minimum Play to Start	DSW3	3

location

name	number	inverted
DSW3	1	no
DSW3	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	0	no
10	1	no	DSW5	16	eq	0
20	2	yes	DSW5	16	eq	0
30	3	no	DSW5	16	eq	0
8	1	no	DSW5	16	eq	16
16	2	yes	DSW5	16	eq	16
24	3	no	DSW5	16	eq	16

Max Coin In & Note In Points

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Max Coin In & Note In Points	DSW3	12

location

name	number	inverted
DSW3	3	no
DSW3	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1000	0	no
5000	4	no
10000	8	yes
90000	12	no

Clear / Ticket Unit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Clear / Ticket Unit	DSW3	240

location

name	number	inverted
DSW3	5	no
DSW3	6	no
DSW3	7	no
DSW3	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	0	yes
4	16	no
5	32	no
10	48	no
15	64	no
20	80	no
25	96	no
30	112	no
40	128	no
50	144	no
60	160	no
75	176	no
80	192	no
100	208	no
200	224	no
500	240	no

Check Account

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Check Account	DSW4	1

location

name	number	inverted
DSW4	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	1	yes

Show In Confirm Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show In Confirm Screen	DSW4	2

location

name	number	inverted
DSW4	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Level of Difficulty	0	yes
Percentage	2	no

Initial Bonus Settings After Reset

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Initial Bonus Settings After Reset	DSW4	4

location

name	number	inverted
DSW4	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Type 1	0	yes
Type 2	4	no

Bonus Accumulation

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Accumulation	DSW4	8

location

name	number	inverted
DSW4	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	8	yes

Auto Ticket Dispense

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Auto Ticket Dispense	DSW4	16

location

name	number	inverted
DSW4	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	16	yes

Ticket Dispense Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Ticket Dispense Mode	DSW4	224

location

name	number	inverted
DSW4	6	no
DSW4	7	no
DSW4	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Continuous	224	yes
Max 1 Ticket Per Game	192	no
Max 2 Ticket Per Game	160	no
Max 3 Ticket Per Game	128	no
Max 4 Ticket Per Game	96	no
Max 5 Ticket Per Game	64	no
Max 8 Ticket Per Game	32	no
Max 10 Ticket Per Game	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW5	1

location

name	number	inverted
DSW5	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

Limit Score of Each Game to Max 10x Bet or $5.00

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Limit Score of Each Game to Max 10x Bet or $5.00	DSW5	2

location

name	number	inverted
DSW5	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes	DSW4	16	eq	16
Yes	2	no	DSW4	16	eq	16
Unused when DSW4-5 OFF	0	yes	DSW4	16	eq	0
Unused when DSW4-5 OFF	2	no	DSW4	16	eq	0

Use Printer

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Use Printer	DSW5	4

location

name	number	inverted
DSW5	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No (Use TDDD)	0	yes
Yes	4	no

Show Game Name & Odds Table

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Game Name & Odds Table	DSW5	8

location

name	number	inverted
DSW5	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	8	yes

Min-Max Bet Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Min-Max Bet Type	DSW5	16

location

name	number	inverted
DSW5	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Base 8	16	yes
Base 10	0	no

Play Score when no point left

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Play Score when no point left	DSW5	32

location

name	number	inverted
DSW5	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	32	yes	DSW4	16	eq	16
Yes	0	no	DSW4	16	eq	16
Unused	32	yes	DSW4	16	eq	0
Unused	0	no	DSW4	16	eq	0

Reset Remaining Score when Game Over

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Reset Remaining Score when Game Over	DSW5	64

location

name	number	inverted
DSW5	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	64	no	DSW4	16	eq	16
Yes	0	yes	DSW4	16	eq	16
Unused	64	no	DSW4	16	eq	0
Unused	0	yes	DSW4	16	eq	0

Advanced Count Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Advanced Count Game	DSW5	128

location

name	number	inverted
DSW5	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	128	no
